Disconnect/connect ground line from on-board electrical system with two batteries - AR54.10-P-0003-03SXS
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A |
BATTERY
| Number | Designation | Model 221 | ||
|---|---|---|---|---|
| BA54.10-P-1028-01C | Bolt/nut, ground line of battery to body | M8 | Nm | 16 |

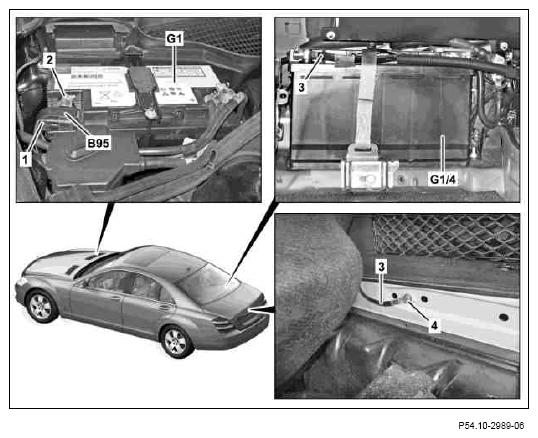

- Loosen nut on ground line (2) and remove ground line (2) from negative terminal of on-board electrical system battery (G1).
Installation: Pay attention to tight seating of ground line (2), otherwise damage to the negative terminal of the on-board electrical system battery (G1) and electrical system can occur.
- 2.1 Lift up trim of cargo area floor, remove bolt (4) of ground line (3) of starter battery (G1/4) on longitudinal member and set aside ground line (3).
Not when removing the starter battery (G1/4).
- 2.2 Loosen nut on ground line (3) and remove ground line (3) from negative terminal of starter battery (G1/4).
- 3 Connect in reverse order.
