| A0 |
Color code key |
40L |
| A2/13 |
Sound amplifier |
26L |
| A40/3 |
COMAND control unit |
14L |

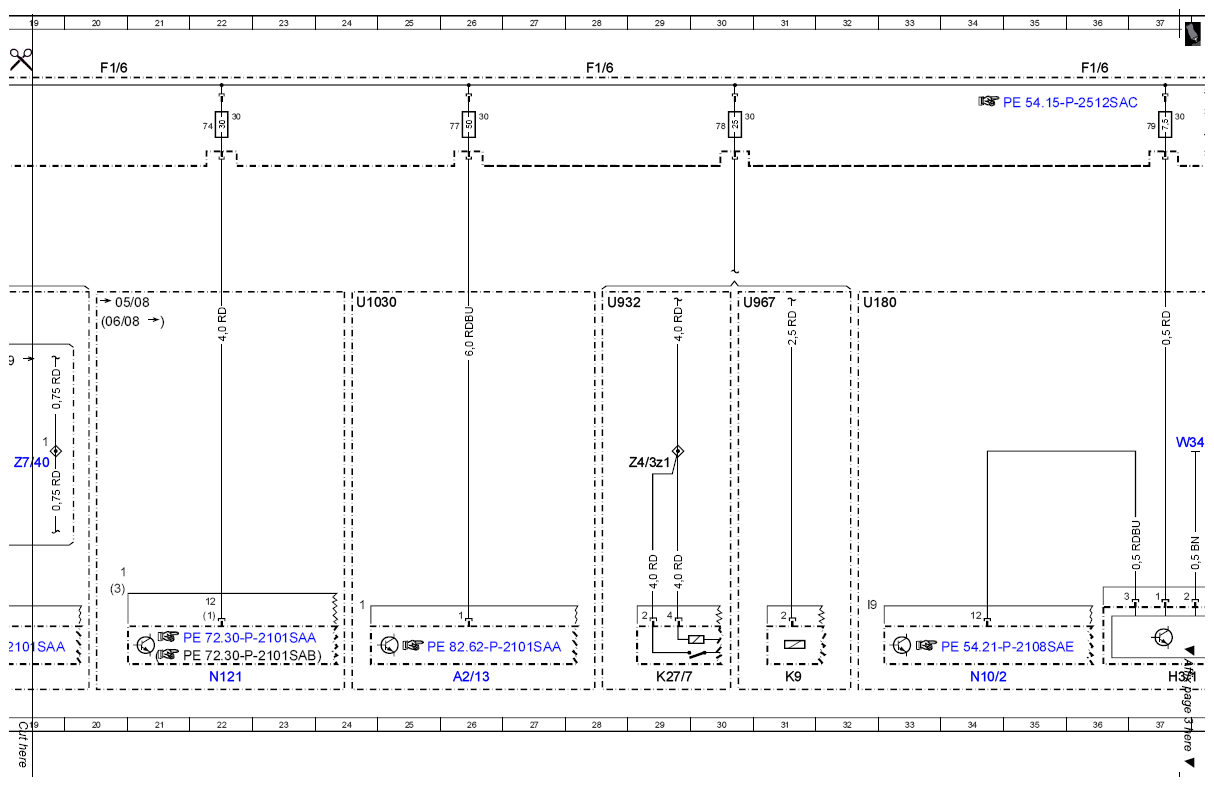

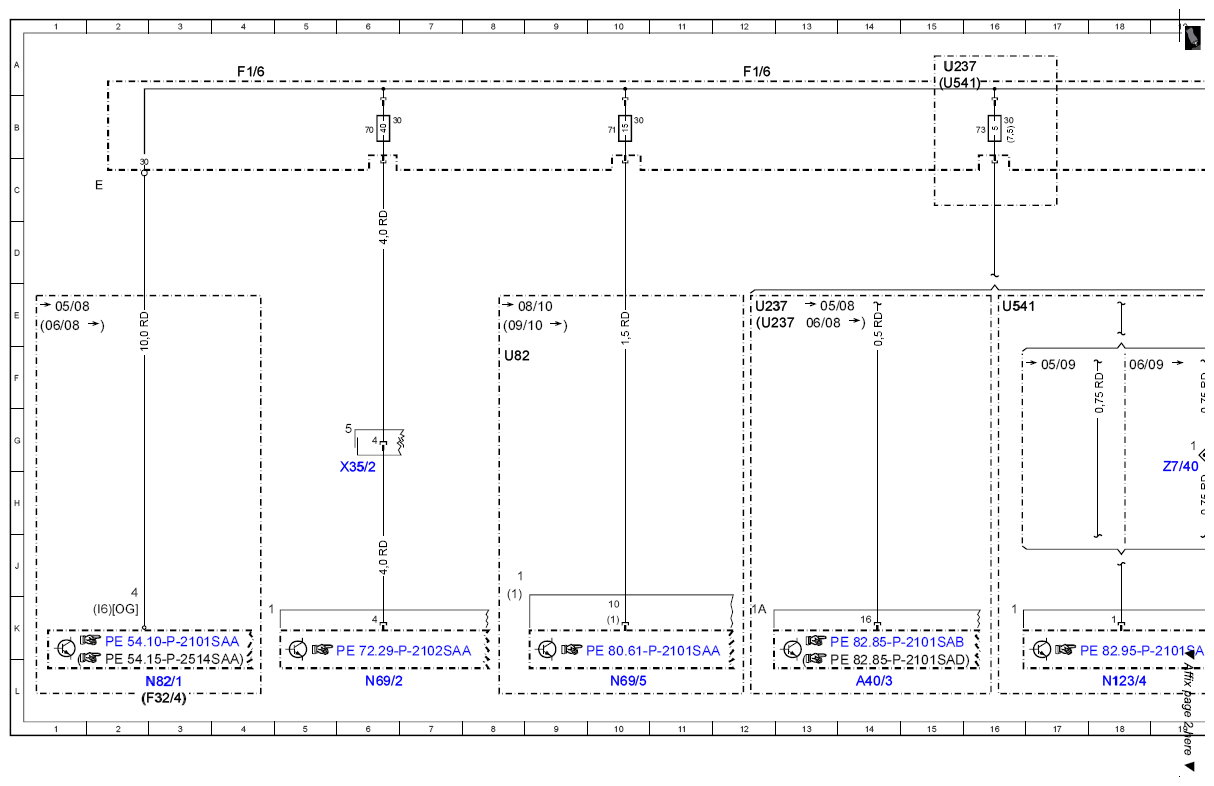

| F1/6 |
Right instrument panel fuse box |
4A |
| F1/6 |
Right instrument panel fuse box |
12A |
| F1/6 |
Right instrument panel fuse box |
20A |
| F1/6 |
Right instrument panel fuse box |
28A |
| F1/6 |
Right instrument panel fuse box |
36A |
| F1/6f70 |
Fuse 70 |
6B |
| F1/6f71 |
Fuse 71 |
10B |
| F1/6f73 |
Fuse 73 |
16B |
| F1/6f74 |
Fuse 74 |
22B |
| F1/6f77 |
Fuse 77 |
26B |
| F1/6f78 |
Fuse 78 |
30B |
| F1/6f79 |
Fuse 79 |
37B |
| F32/4 |
Interior prefuse box |
3L |

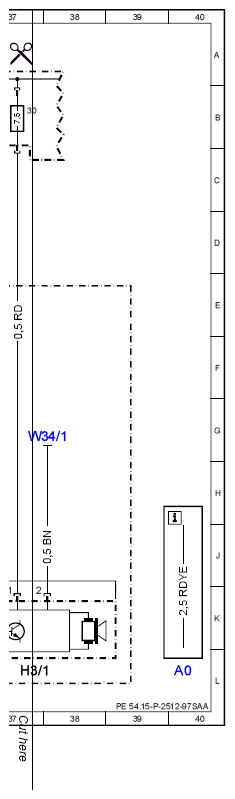

| H3/1 |
Alarm signal siren |
37L |
| K27/7 |
AdBlue® supply relay |
29L |
| K9 |
Additional fan relay |
31L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
34L |
| N121 |
TLC [HDS] control unit |
22L |
| N123/4 |
Emergency call system control unit |
18L |
| N69/2 |
Right front door control unit |
6L |
| N69/5 |
KEYLESS-GO control unit |
10L |
| N82/1 |
Vehicle power supply control unit |
3L |
| U1030 |
Valid for B&O sound system |
24E |
| U180 |
Valid for ATA [EDW] with siren |
32E |
| U237 |
Valid for COMAND operating unit, {{Japan}} version |
12E |
| U237 |
Valid for COMAND operating unit, {{Japan}} version |
12E |
| U237 |
Valid for COMAND operating unit, {{Japan}} version |
15A |
| U541 |
Valid for TELE AID emergency call system |
16E |
| U541 |
Valid for TELE AID emergency call system |
15A |
| U82 |
Valid for KEYLESS GO |
8F |
| U932 |
Valid for engine 642 BLUETEC |
28E |
| U967 |
Valid for engine 275.982 |
30E |
| W34/1 |
Ground (electronics - left footwell) |
37G |
| X35/2 |
Right front door and FFS [RBA] connector |
6H |
| Z4/3z1 |
Tml. 30 connector sleeve |
29G |
| Z7/40 |
Tml. 30 connector sleeve |
19G |
