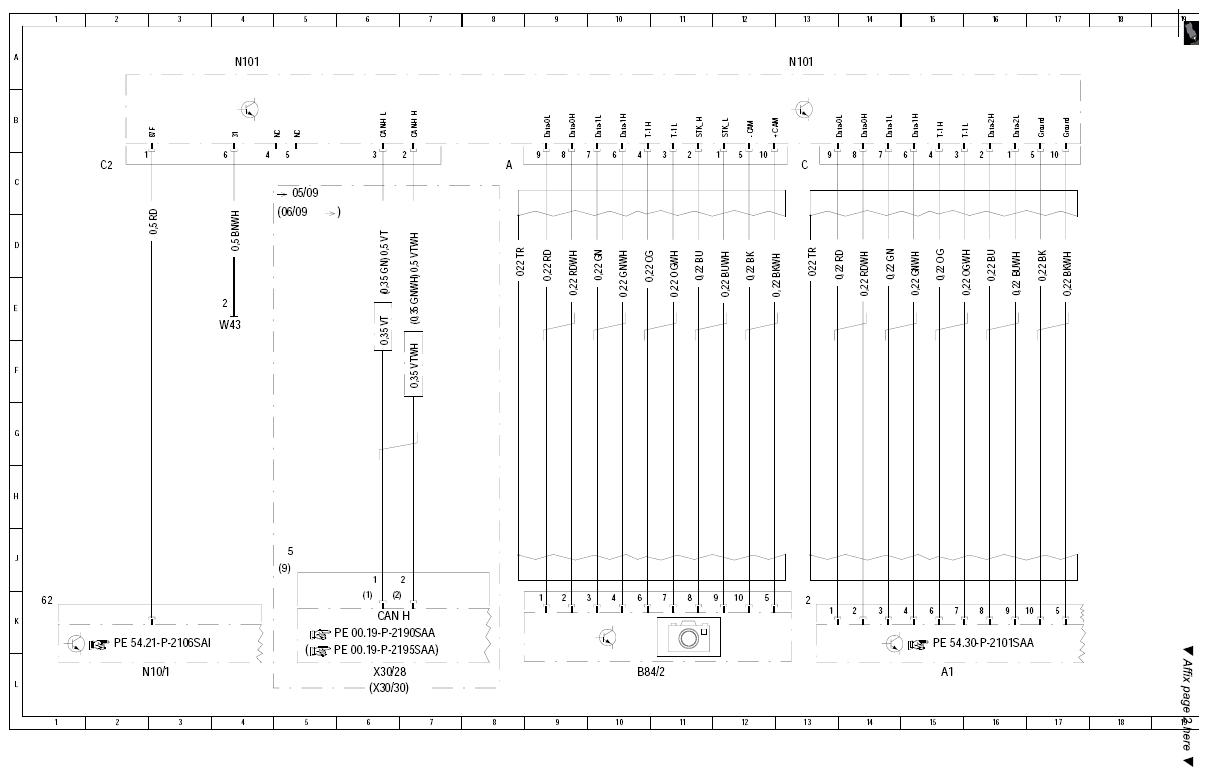

Wiring diagram, night view assist control unit - PE54.30-P-2103-99SAA
| Code: | Designation: | Position: |
|---|---|---|

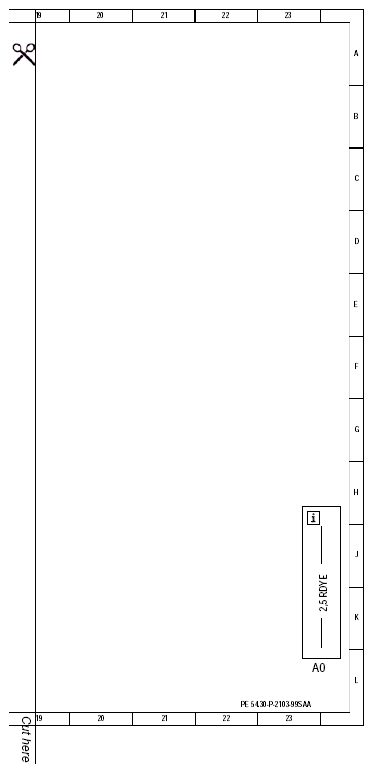

| A0 | Explanation of color codes | 23 L |
| A1 | Instrument cluster | 15 L |
| B84/2 | Night vision assist camera | 10 L |
| N10/1 | Front SAM control module with fuse and relay module | 2 L |
| N101 | Night vision assist control unit | 4 A |
| N101 | Night vision assist control unit | 12 A |
| W43 | Ground (reference, image transmission systems) | 4 E |
| X30/28 | Vehicle dynamics CAN voltage distributor connector | 6 L |
