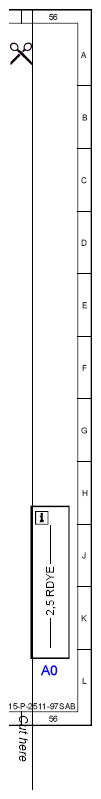

| A0 |
Color code key |
56L |
| A40/11 |
Multifunction camera |
34L |
| Code 238 |
Active Lane Keeping Assist |
32D |
| Code 406 |
Multicontour seats in rear |
28D |
| Code 476 |
Automatic lane detection |
32E |
| Code 513 |
Speed Limit Assist |
32E |
| Code 608 |
Adaptive Highbeam Assist |
32E |
| Code 864 |
Rear entertainment system |
28D |

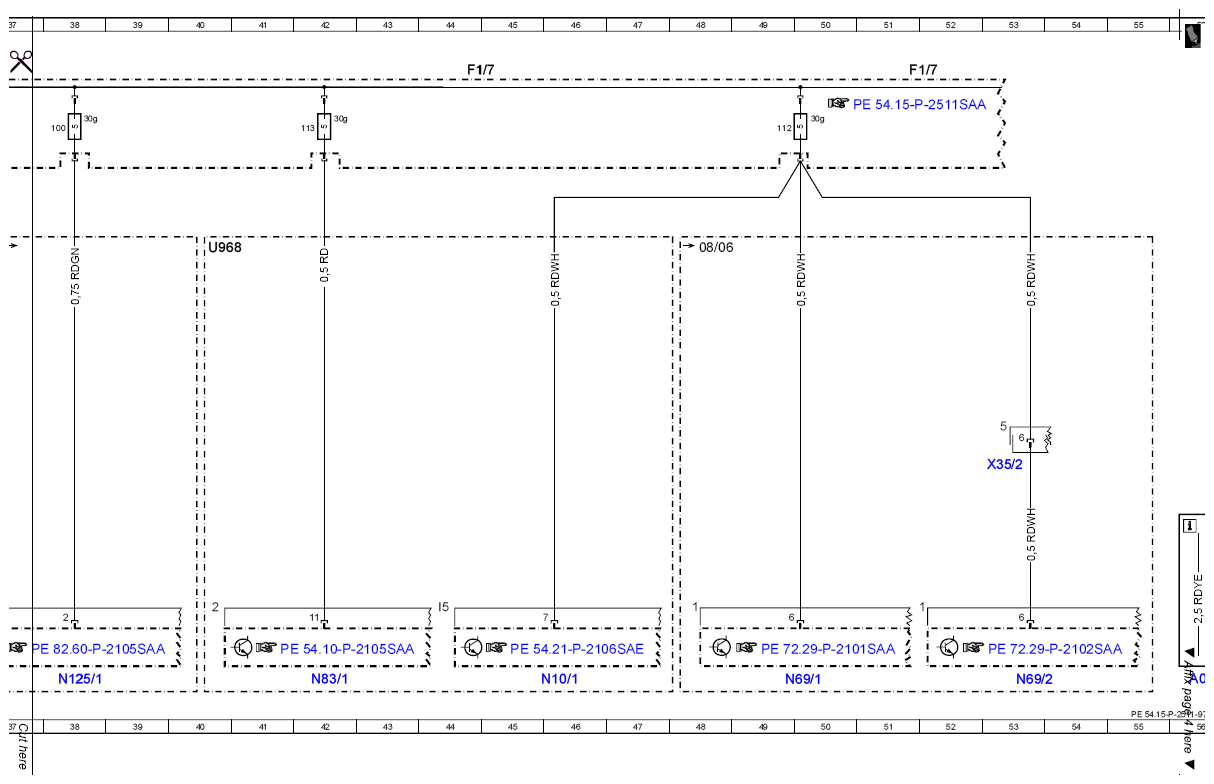

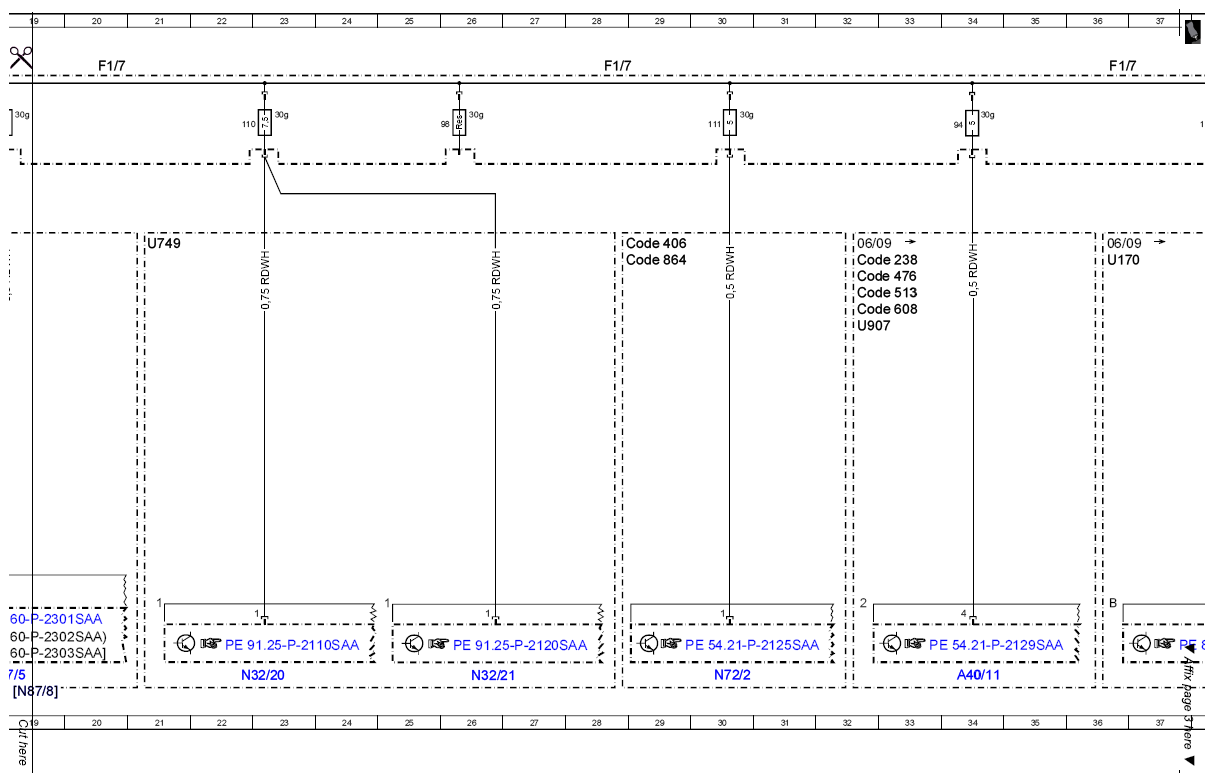

| F1/7 |
Left instrument panel fuse box |
4A |
| F1/7 |
Left instrument panel fuse box |
12A |
| F1/7 |
Left instrument panel fuse box |
20A |
| F1/7 |
Left instrument panel fuse box |
28A |
| F1/7 |
Left instrument panel fuse box |
36A |
| F1/7 |
Left instrument panel fuse box |
44A |
| F1/7 |
Left instrument panel fuse box |
52A |
| F1/7f100 |
Fuse 100 |
38B |
| F1/7f104 |
Fuse 104 |
7B |
| F1/7f107 |
Fuse 107 |
18B |
| F1/7f108 |
Fuse 108 |
14B |
| F1/7f109 |
Fuse 109 |
11B |
| F1/7f110 |
Fuse 110 |
22B |
| F1/7f111 |
Fuse 111 |
30B |
| F1/7f112 |
Fuse 112 |
49B |
| F1/7f113 |
Fuse 113 |
42B |
| F1/7f94 |
Fuse 94 |
34B |
| F1/7f98 |
Fuse 98 |
26B |

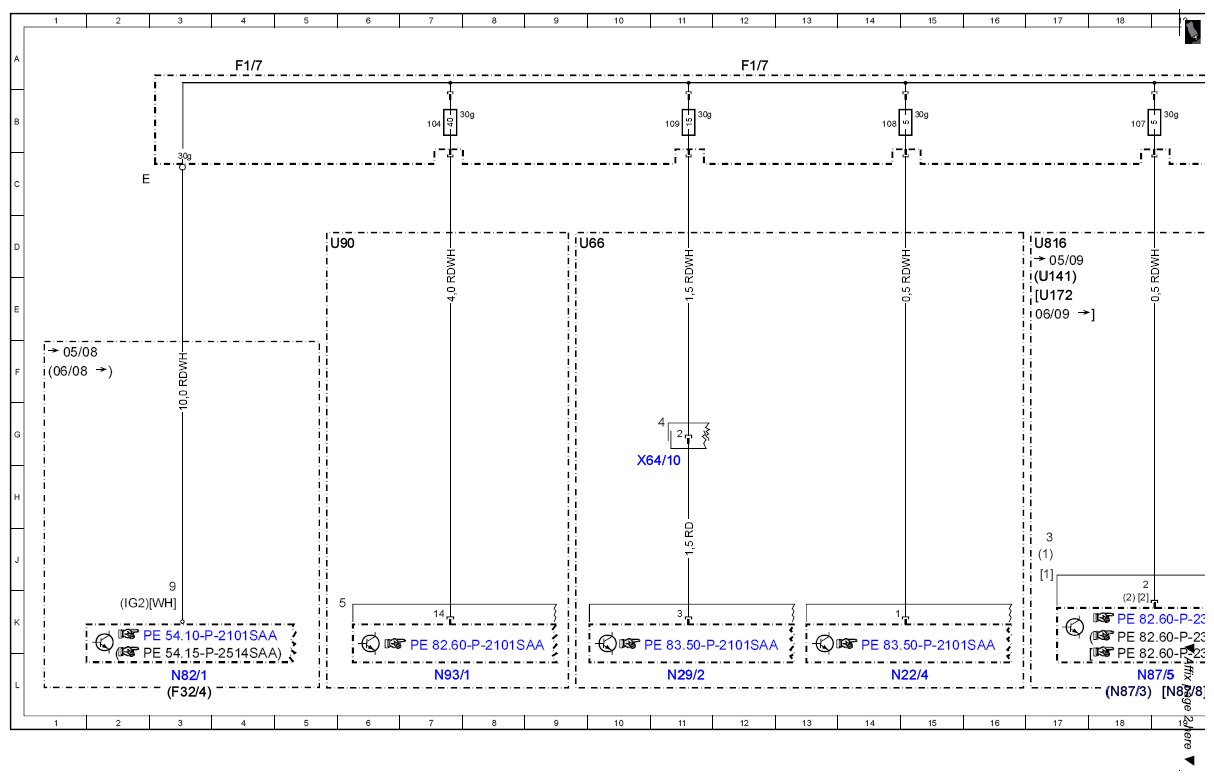

| F32/4 |
Interior prefuse box |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
46L |
| N125/1 |
Media interface control unit |
38L |
| N22/4 |
Rear AC control unit |
15L |
| N29/2 |
Rear air conditioning electronic blower controller |
11L |
| N32/20 |
Left rear multicontour backrest control unit |
23L |
| N32/21 |
Right rear multicontour backrest control unit |
26L |
| N69/1 |
Left front door control unit |
49L |
| N69/2 |
Right front door control unit |
53L |
| N72/2 |
RCP [HBF] control unit |
30L |
| N82/1 |
Vehicle power supply control unit |
3L |
| N83/1 |
DC/DC converter control unit |
42L |
| N87/3 |
Digital Audio Broadcasting control unit |
18L |
| N87/5 |
SDAR control unit |
18L |
| N87/8 |
High-definition tuner control unit |
19L |
| N93/1 |
Audio tuner control unit |
7L |
| U141 |
Valid for Digital Audio Broadcasting |
17E |
| U170 |
Valid for media interface |
36D |
| U172 |
Valid for high-definition tuner control unit |
17E |
| U66 |
Valid for rear air conditioning |
9D |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
21D |
| U816 |
Valid for satellite radio (SDAR) |
17D |
| U90 |
Valid for Sound System |
5D |
| U907 |
Valid for night view assist |
32E |
| U968 |
Valid for mild hybrid drive |
40D |
| X35/2 |
Right front door and FFS [RBA] connector |
53G |
| X64/10 |
Rear blower intermediate connector |
11G |
