| A0 |
Color code key |
64L |

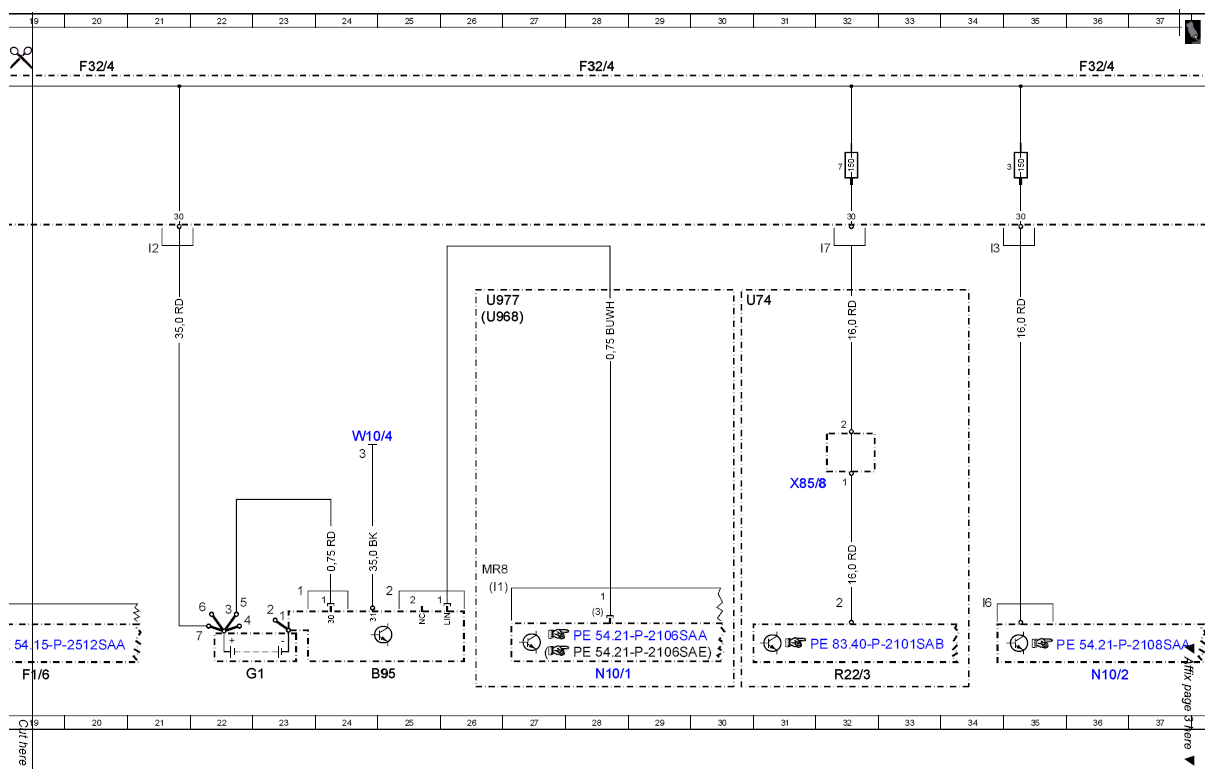

| B95 |
Battery sensor |
25L |
| F1/6 |
Right instrument panel fuse box |
19L |
| F1/7 |
Left instrument panel fuse box |
3L |
| F32/3 |
Engine compartment prefuse box |
15L |

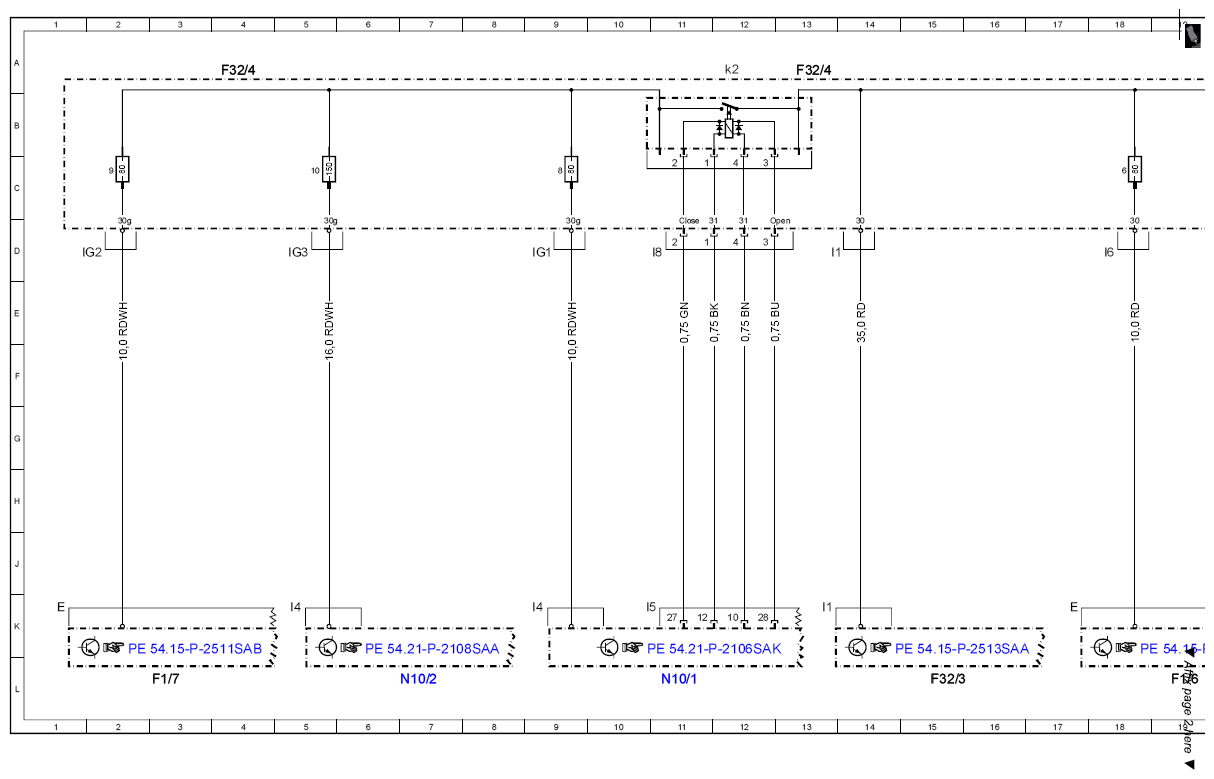

| F32/4 |
Interior prefuse box |
4A |
| F32/4 |
Interior prefuse box |
13A |
| F32/4 |
Interior prefuse box |
20A |
| F32/4 |
Interior prefuse box |
28A |
| F32/4 |
Interior prefuse box |
36A |
| F32/4 |
Interior prefuse box |
44A |
| F32/4 |
Interior prefuse box |
52A |
| F32/4 |
Interior prefuse box |
57A |
| F32/4f10 |
Fuse 10 |
5C |
| F32/4f3 |
Fuse 3 |
35C |
| F32/4f4 |
Fuse 4 |
46C |
| F32/4f5 |
Fuse 5 |
57C |
| F32/4f6 |
Fuse 6 |
18C |
| F32/4f7 |
Fuse 7 |
32C |
| F32/4f8 |
Fuse 8 |
9C |
| F32/4f9 |
Fuse 9 |
2C |
| F32/4k2 |
Quiescent current cutout relay |
12A |

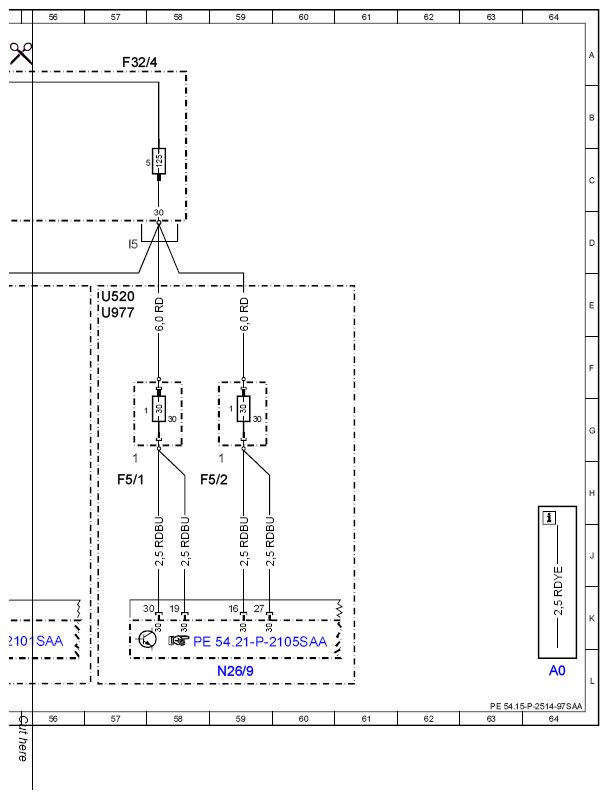

| F5/1 |
Taxi power supply fuse box 1 |
57H |
| F5/1f1 |
Fuse 1 |
57G |
| F5/2 |
Taxi power supply fuse box 2 |
59H |
| F5/2f1 |
Fuse 1 |
59G |
| G1 |
On-board electrical system battery |
22L |
| K109 |
Vacuum pump relay (+) |
55L |

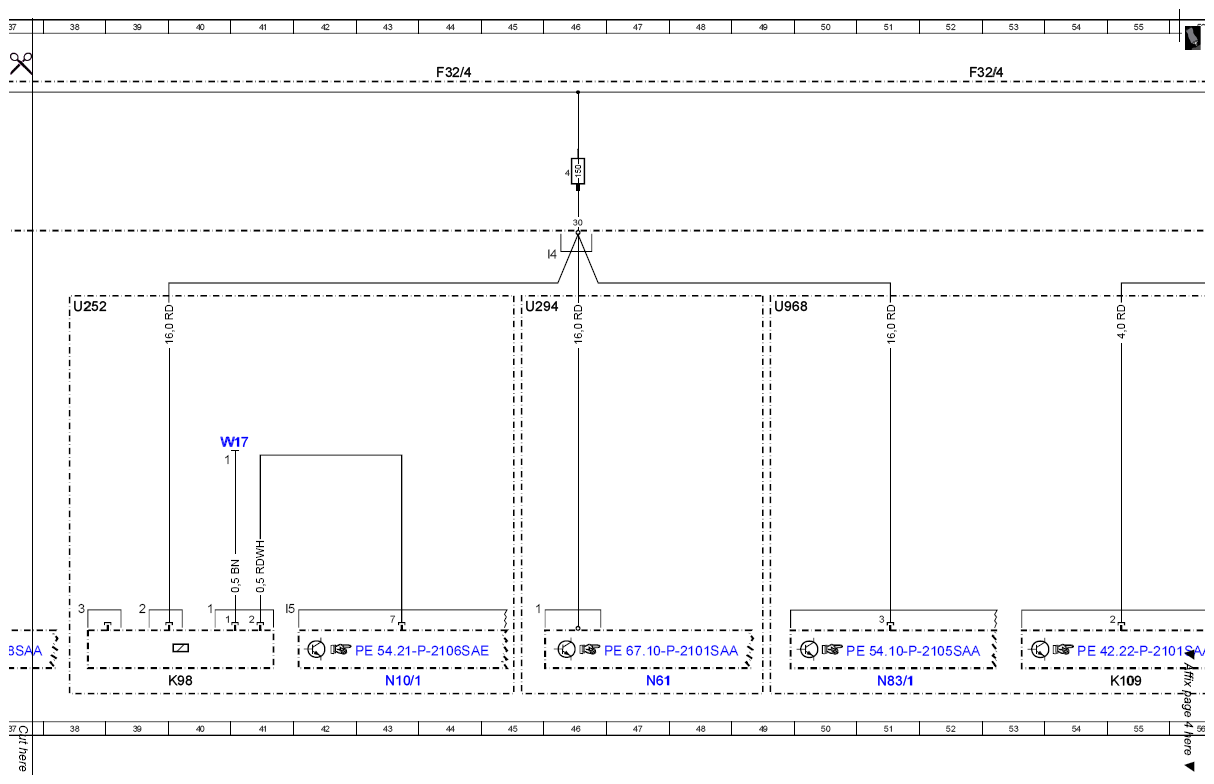

| K98 |
ECO start/stop function relay |
40L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/1 |
Front SAM control unit with fuse and relay module |
28L |
| N10/1 |
Front SAM control unit with fuse and relay module |
43L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36L |
| N26/9 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
59L |
| N61 |
Heated windshield control unit |
47L |
| N83/1 |
DC/DC converter control unit |
51L |
| R22/3 |
PTC heater booster |
32L |
| U252 |
Valid for ECO start/stop function |
38E |
| U294 |
Valid for heated windshield |
45E |
| U520 |
Valid for taxi |
57E |
| U74 |
Valid for diesel engines |
30E |
| U968 |
Valid for mild hybrid drive |
49E |
| U968 |
Valid for mild hybrid drive |
26E |
| U977 |
Not valid for mild hybrid drive |
26E |
| U977 |
Not valid for mild hybrid drive |
57E |
| W10/4 |
Ground (2nd battery) |
24G |
| W17 |
Ground (right rear seat) |
40G |
| X85/8 |
Heater booster connector |
31H |
