Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99SAE

Code:  Designation:  Position:
A0 Explanation of color codes 56 L
A80 Intelligent servo module for DIRECT SELECT 42 L
B12 Refrigerant pressure sensor 22 L
E13/3 Stowage compartment illumination 34 L
F32 Front prefuse 3L
F32f6 Fuse 6 1 K
M16/34 Right B-pillar air distribution actuator motor 27 L
M4/8 Control module box fan motor 32 L
M6/6 Master wiper motor 5K
M6/7 Slave wiper motor 10K
N10/1 Front SAM control module with fuse and relay module 4A
N10/1 Front SAM control module with fuse and relay module 12A
N10/1 Front SAM control module with fuse and relay module 20 A
N10/1 Front SAM control module with fuse and relay module 28 A
N10/1 Front SAM control module with fuse and relay module 36 A
N10/1 Front SAM control module with fuse and relay module 44 A
N10/1f41 Fuse 41 9C
N10/1f42 Fuse 42 6C
N10/1f43 Fuse 43 36 C
N10/1kD Circuit 15 relay 2A
N10/1kG Circuit 15R relay 7A
N18/6 Rear center vent electronics control module 24 L
N69/1 Left front door control module 15L
N69/2 Right front door control module 19L
N73 Dl control module 39 L
N82/1 Vehicle power supply control unit 12L
N82/1 Vehicle power supply control unit 46 L
R3 Front cigar lighter (with ashtray illumination) 36 L
R3e1 Illumination 36 L
R3r1 Heating element 36 L
R3x1 Front cigar lighter connector 35 J
U12 Valid for left-hand steering 5E
U13 Valid for right-hand steering 6E
U779 Valid for engine 275 32 F
W15/1 Ground (right footwell) 36 G
W17 Ground (right rear seat) 34 G
W34/1 Ground (electronics - left footwell) 32 G
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector 49 L
X30/32 Left interior CAN/FFS [RBA] voltage distributor connector 30 L
X35/2 Right front door and FFS [RBA] connector 18G
Z110/2 AC bus solder terminal 28 G
Z111 Voltage supply connector sleeve 28 G
Z7/60 5V output connector sleeve (solder connector in wiring harness) 22 G
Z7/72 COC nozzles and sensors sensor ground connector sleeve 23 G
Z81/4 Circuit 58d in FSS [RBA] connector sleeve 35 G

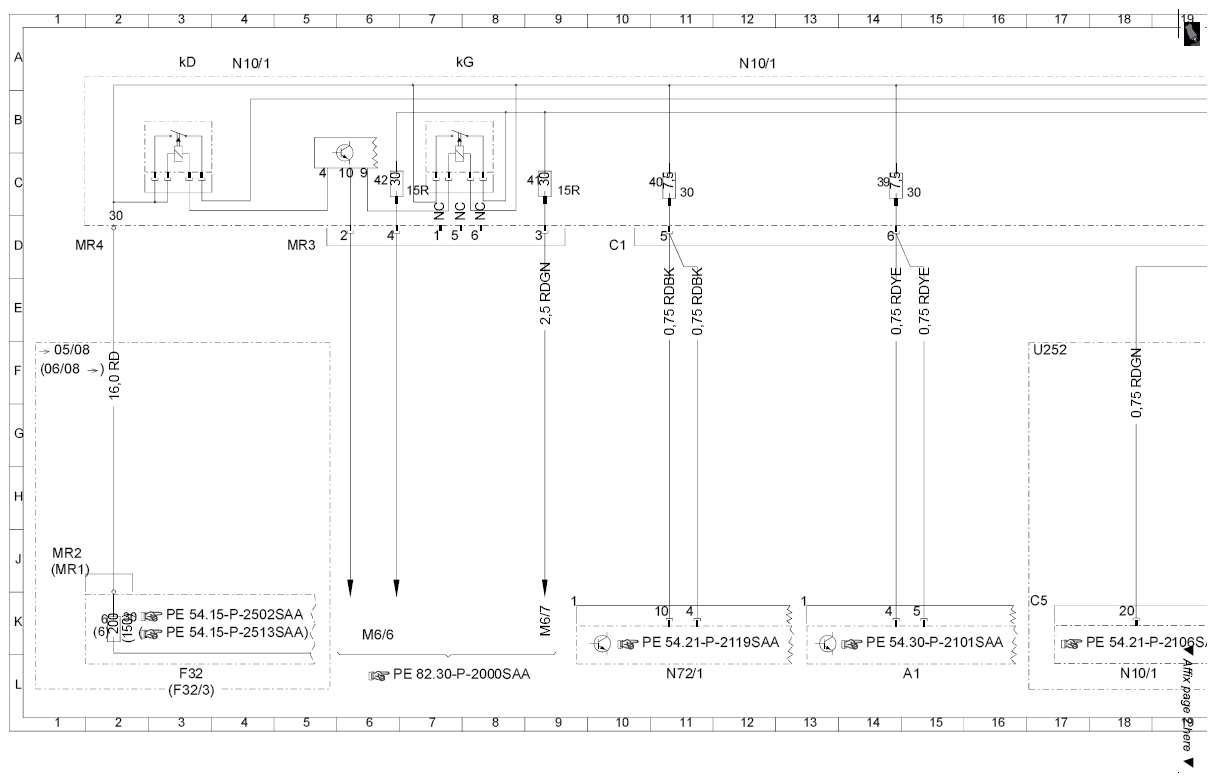

Fig 1: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (1 Of 4)
G07594320Courtesy of MERCEDES-BENZ USA

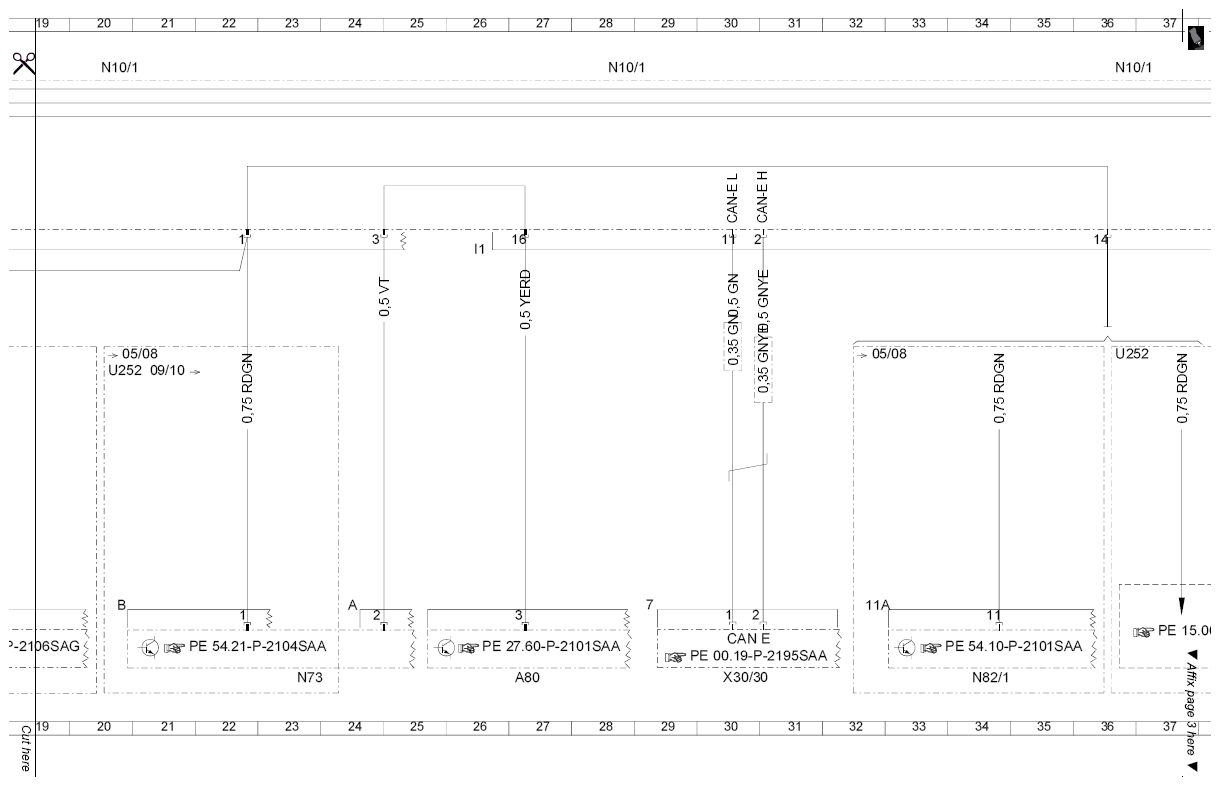

Fig 2: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (2 Of 4)
G07594321Courtesy of MERCEDES-BENZ USA

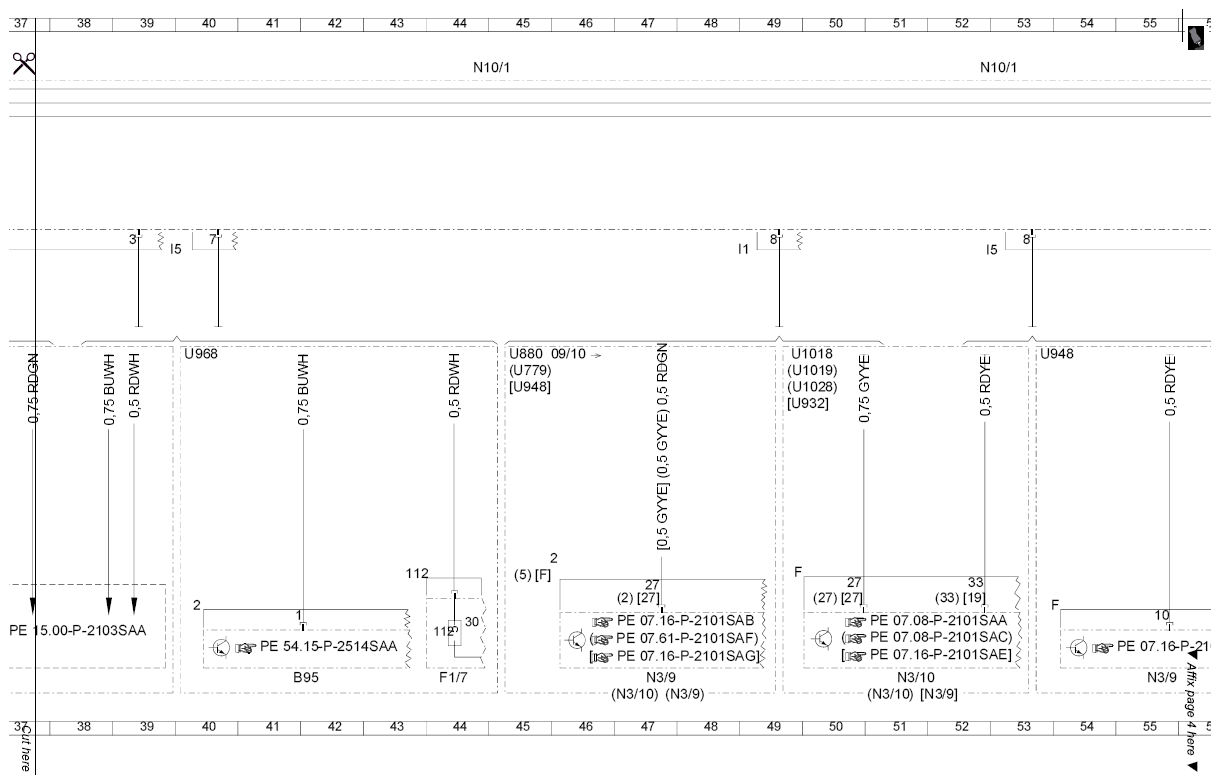

Fig 3: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (3 Of 4)
G07594322Courtesy of MERCEDES-BENZ USA

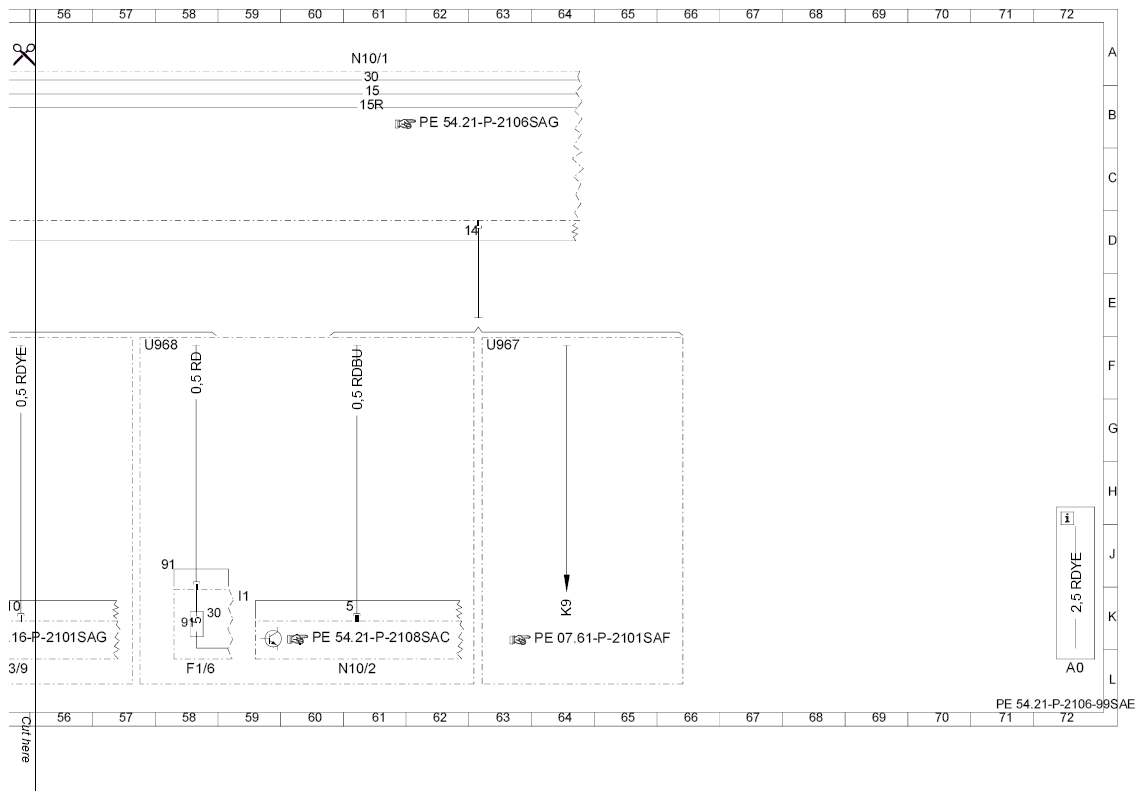

Fig 4: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (4 Of 4)
G07594323Courtesy of MERCEDES-BENZ USA
