| Code: |
Designation: |
Position: |
| A0 |
Explanation of color codes |
57 L |

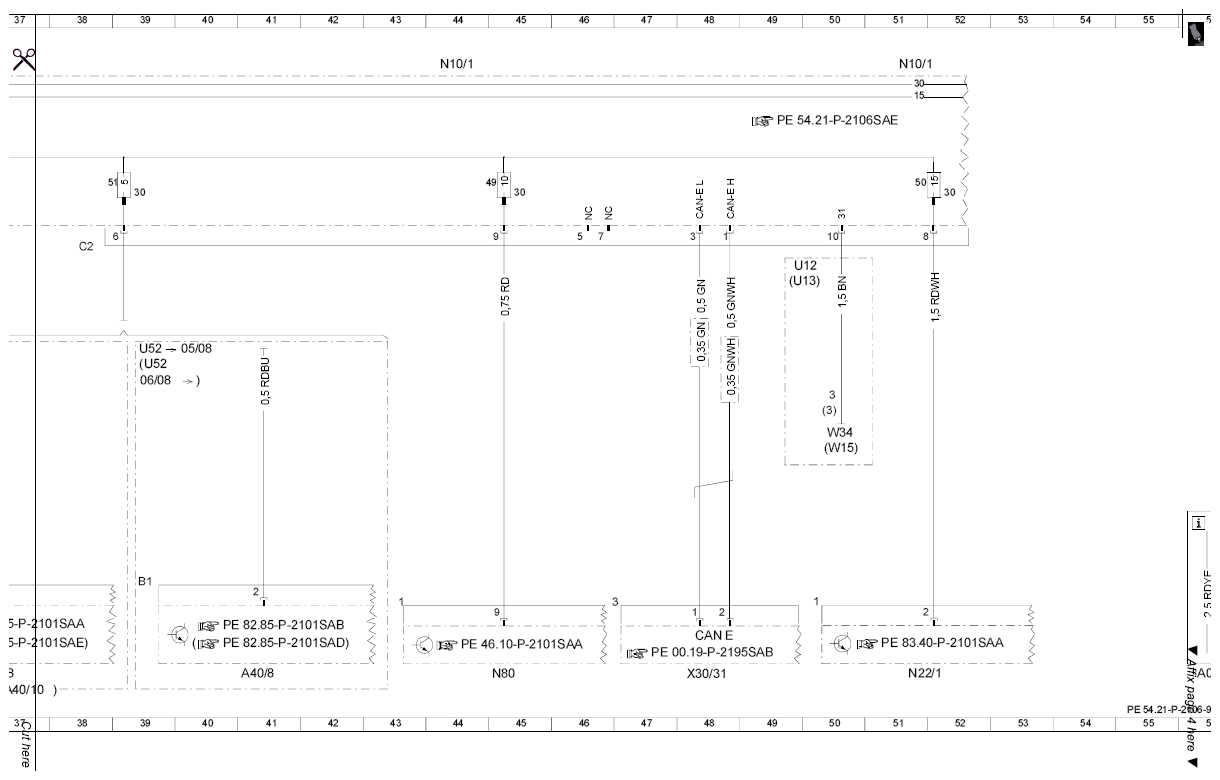

| A1 |
Instrument cluster |
44 L |
| A32 |
AC recirculation unit |
48 L |

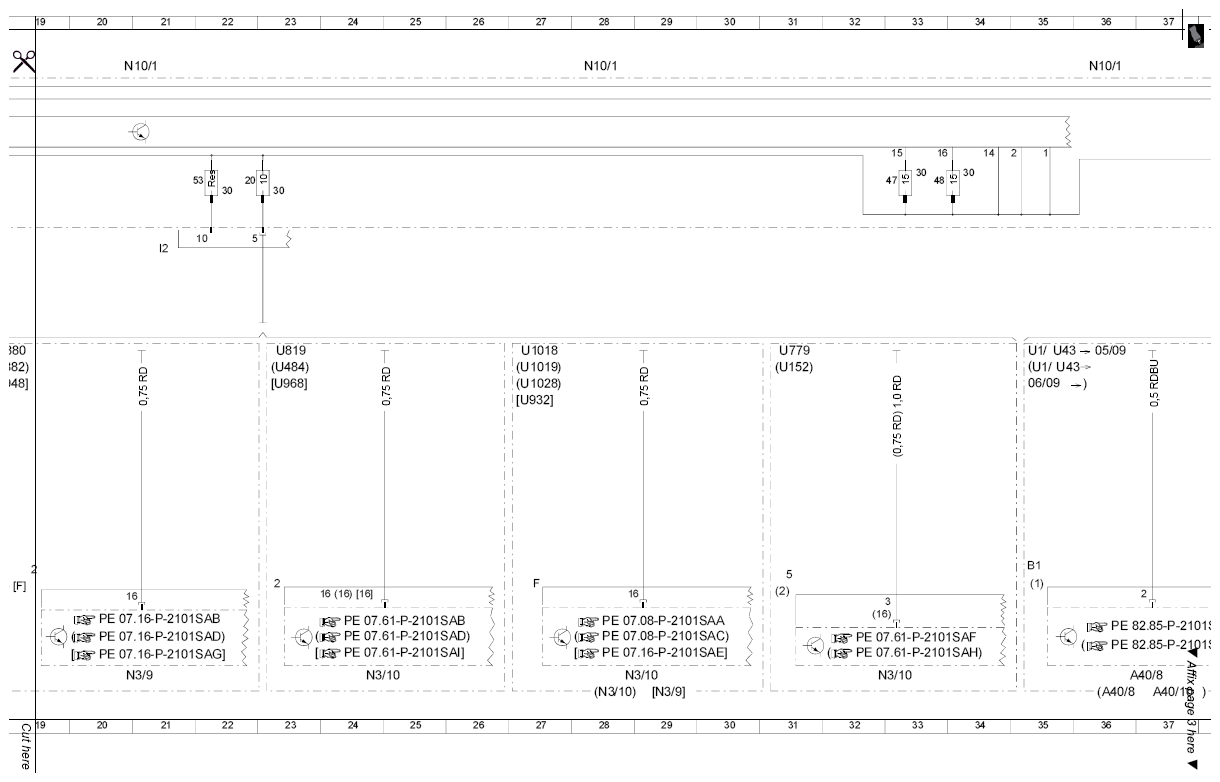

| A40/8 |
COMAND display |
30 L |
| E1 |
Left front headlamp unit |
53 K |
| E2 |
Right front headlamp unit |
57 K |
| E5/1 |
Left fog lamp |
51 K |
| E5/2 |
Right fog lamp |
57 K |

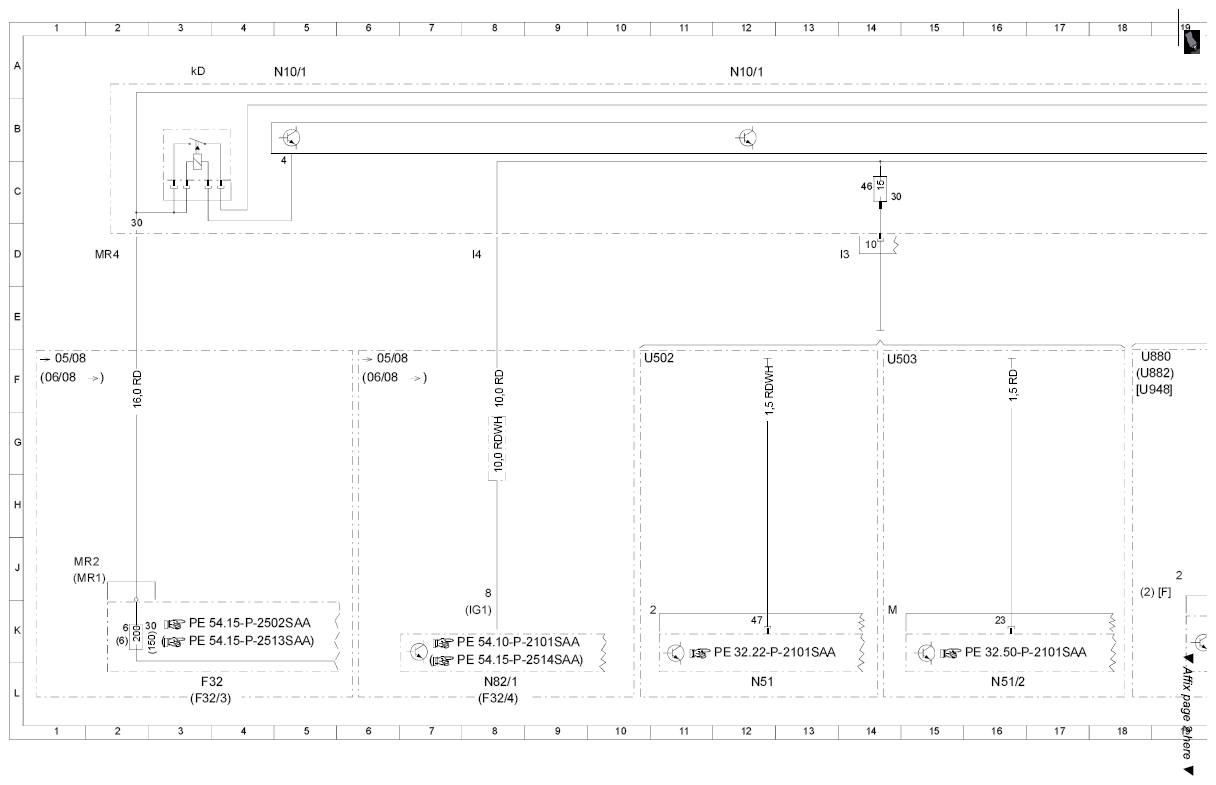

| F32 |
Front prefuse |
3L |
| F32f6 |
Fuse 6 |
1 K |
| N10/1 |
Front SAM control module with fuse and relay module |
4A |
| N10/1 |
Front SAM control module with fuse and relay module |
12A |
| N10/1 |
Front SAM control module with fuse and relay module |
20 A |
| N10/1 |
Front SAM control module with fuse and relay module |
28 A |
| N10/1 |
Front SAM control module with fuse and relay module |
36 A |
| N10/1 |
Front SAM control module with fuse and relay module |
44 A |
| N10/1 |
Front SAM control module with fuse and relay module |
52 A |
| N10/1 |
Front SAM control module with fuse and relay module |
57 A |
| N10/1f20 |
Fuse 20 |
21 C |
| N10/1f25 |
Fuse 25 |
44 C |
| N10/1f26 |
Fuse 26 |
57 C |
| N10/1f27 |
Fuse 27 |
57 C |
| N10/1f36 |
Fuse 36 |
45 C |
| N10/1f46 |
Fuse 46 |
12C |
| N10/1f47 |
Fuse 47 |
26 C |
| N10/1f48 |
Fuse 48 |
27 C |
| N10/1f49 |
Fuse 49 |
34 C |
| N10/1f50 |
Fuse 50 |
40 C |
| N10/1f51 |
Fuse 51 |
30 C |
| N10/1f53 |
Fuse 53 |
21 C |
| N10/1f54 |
Fuse 54 |
48 C |
| N10/1kD |
Circuit 15 relay |
2A |
| N22/1 |
AAC [KLA] control unit |
40 L |
| N3/10 |
ME-SFI [ME] control module |
22 L |
| N3/10 |
ME-SFI [ME] control module |
26 L |
| N3/9 |
CDI control module |
18L |
| N51 |
AIRmatic with ADS control module |
10L |
| N51/2 |
ABC control module |
14L |
| N80 |
Steering column module |
34 L |
| N82/1 |
Vehicle power supply control unit |
6L |
| U1 |
Valid for {{USA}} |
28 F |
| U12 |
Valid for left-hand steering |
39 D |
| U13 |
Valid for right-hand steering |
39 E |
| U152 |
Valid for engine 156 |
24 F |
| U43 |
Valid for ECE |
28 F |
| U484 |
Valid for M273 ME |
20 F |
| U502 |
Valid for AIRmatic |
8F |
| U503 |
Valid for ABC |
12F |
| U52 |
Valid for {{Japan}} |
28 F |
| U735 |
Valid for bi-xenon |
53 F |
| U735 |
Valid for bi-xenon |
57 F |
| U779 |
Valid for engine 275 |
24 F |
| U819 |
Valid for engine 272 |
20 F |
| U880 |
Valid for engine 642 |
16F |
| U882 |
Valid for engine 629 |
16F |
| U907 |
Valid for night vision assist |
52 F |
| U907 |
Valid for night vision assist |
57 F |
| W15 |
Ground (electronics power ground) |
39 G |
| W34 |
Ground (left footwell) |
39 G |
| X11/4 |
Data link connector |
45 G |
| X30/31 |
Chassis CAN/cockpit voltage distributor connector |
37 L |
