Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99SAB

Code:  Designation:  Position:
A0 Explanation of color codes 72 L
A9 AC compressor 43 K
F32 Front prefuse 3L
F32 Front prefuse 68 L
F32f6 Fuse 6 1 K
F32f9 Fuse 9 66 K
G3/2 02 sensor 1 upstream TWC [KAT] 47 L
G3/2x1 02 sensor upstream TWC [KAT] connector 46 K
M33 AIR pump 5L
N10/1 Front SAM control module with fuse and relay module 3A
N10/1 Front SAM control module with fuse and relay module 12A
N10/1 Front SAM control module with fuse and relay module 20 A
N10/1 Front SAM control module with fuse and relay module 28 A
N10/1 Front SAM control module with fuse and relay module 36 A
N10/1 Front SAM control module with fuse and relay module 44 A
N10/1 Front SAM control module with fuse and relay module 52 A
N10/1 Front SAM control module with fuse and relay module 60 A
N10/1 Front SAM control module with fuse and relay module 68 A
N10/1f21 Fuse 21 26 C
N10/1f22 Fuse 22 29 C
N10/1f23 Fuse 23 27 C
N10/1f24 Fuse 24 30 C
N10/1f30 Fuse 30 23 C
N10/1f55 Fuse 55 9C
N10/1kA AIR pump relay 10A
N10/1kC Circuit 87 relay, engine 24 A
N10/1kD Circuit 15 relay 4A
N10/1kG Circuit 15R relay 6A
N10/1kH Circuit 50 relay, starter 64 A
N10/1W Circuit 15 relay, starter 66 A
N10/2 Rear SAM control module with fuse and relay module 32 L
N10/2 Rear SAM control module with fuse and relay module 53 L
N118 Fuel pump control module 16L
N3/10 ME-SFI [ME] control module 8L
N3/10 ME-SFI [ME] control module 12L
N3/10 ME-SFI [ME] control module 20 L
N3/10 ME-SFI [ME] control module 28 L
N3/10 ME-SFI [ME] control module 60 L
N3/9 CDI control module 23 L
N3/9 CDI control module 56 L
U152 Valid for engine 156 26 F
U152 Valid for engine 156 50 G
U484 Valid for M273 ME 7F
U484 Valid for M273 ME 26 F
U484 Valid for M273 ME 31 H
U484 Valid for M273 ME 38 F
U484 Valid for M273 ME 49 F
U779 Valid for engine 275 11 F
U779 Valid for engine 275 37 F
U779 Valid for engine 275 40 F
U779 Valid for engine 275 49 F
U779 Valid for engine 275 59 F
U819 Valid for engine 272 7F
U819 Valid for engine 272 26 F
U819 Valid for engine 272 38 F
U819 Valid for engine 272 49 F
U880 Valid for engine 642 22 F
U880 Valid for engine 642 40 F
U880 Valid for engine 642 46 F
U880 Valid for engine 642 50 G
U880 Valid for engine 642 51 H
U880 Valid for engine 642 51 F
U882 Valid for engine 629 22 F
U882 Valid for engine 629 40 F
U882 Valid for engine 629 45 F
U882 Valid for engine 629 50 G
U882 Valid for engine 629 51 F
W11 Ground (engine - connection point for ground wires) 6H
X26 Interior and engine wiring harness connector 4H
X26 Interior and engine wiring harness connector 34 H
X26 Interior and engine wiring harness connector 38 H
Z3 Circuit 15 connector sleeve 16H
Z3 Circuit 15 connector sleeve 27 H
Z6 Ground connector sleeve 49 L
Z7 Circuit 30 connector sleeve 41 L
Z7/24 Circuit 87 connector sleeve 45 L
Z7/35 Circuit 87 M1e connector sleeve 34 L
Z7/36 Circuit 87M2e connector sleeve 39 L
Z7/38 Circuit 87 M1i connector sleeve 35 L
Z7/38 Circuit 87 M1i connector sleeve 37 L
Z7/39 Circuit 87 M2i connector sleeve 40 L
Z7/5 Circuit 87 connector sleeve 29 H
Z7/5 Circuit 87 connector sleeve 29 H
Z7/5 Circuit 87 connector sleeve 41 L
Z7/5 Circuit 87 connector sleeve 50 L

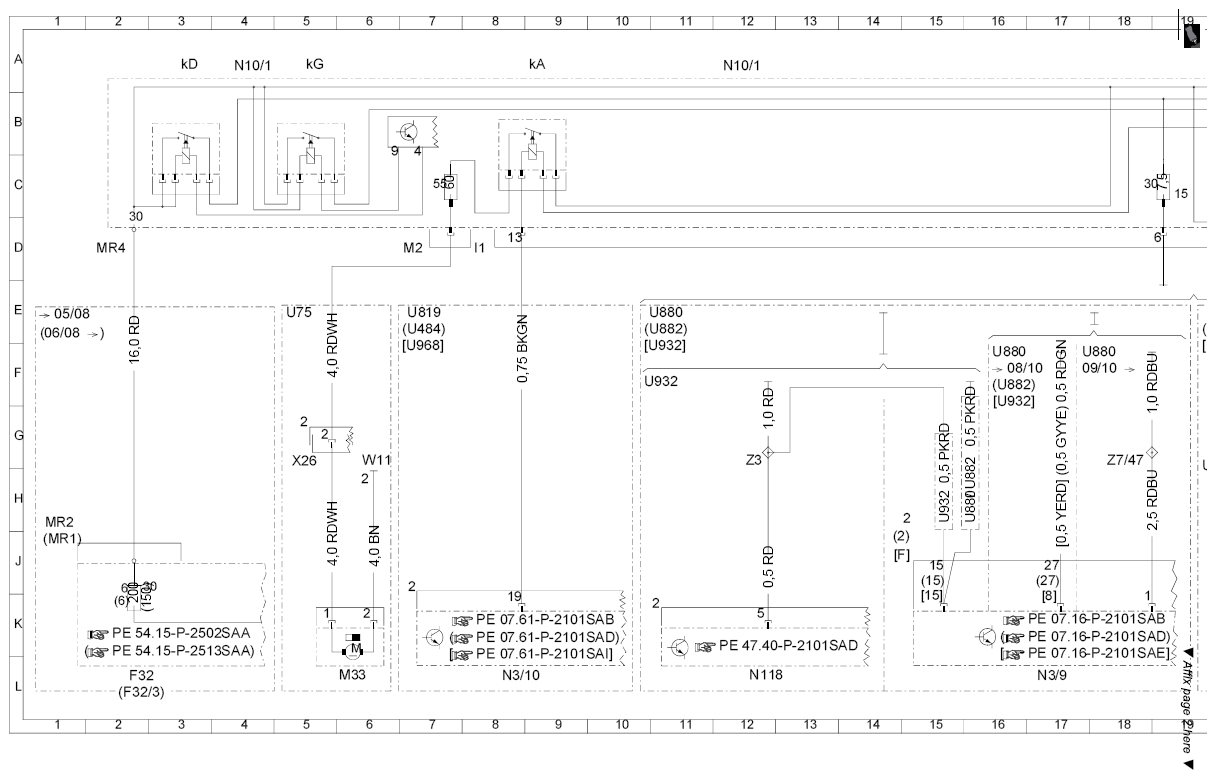

Fig 1: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (1 Of 5)
G07594308Courtesy of MERCEDES-BENZ USA

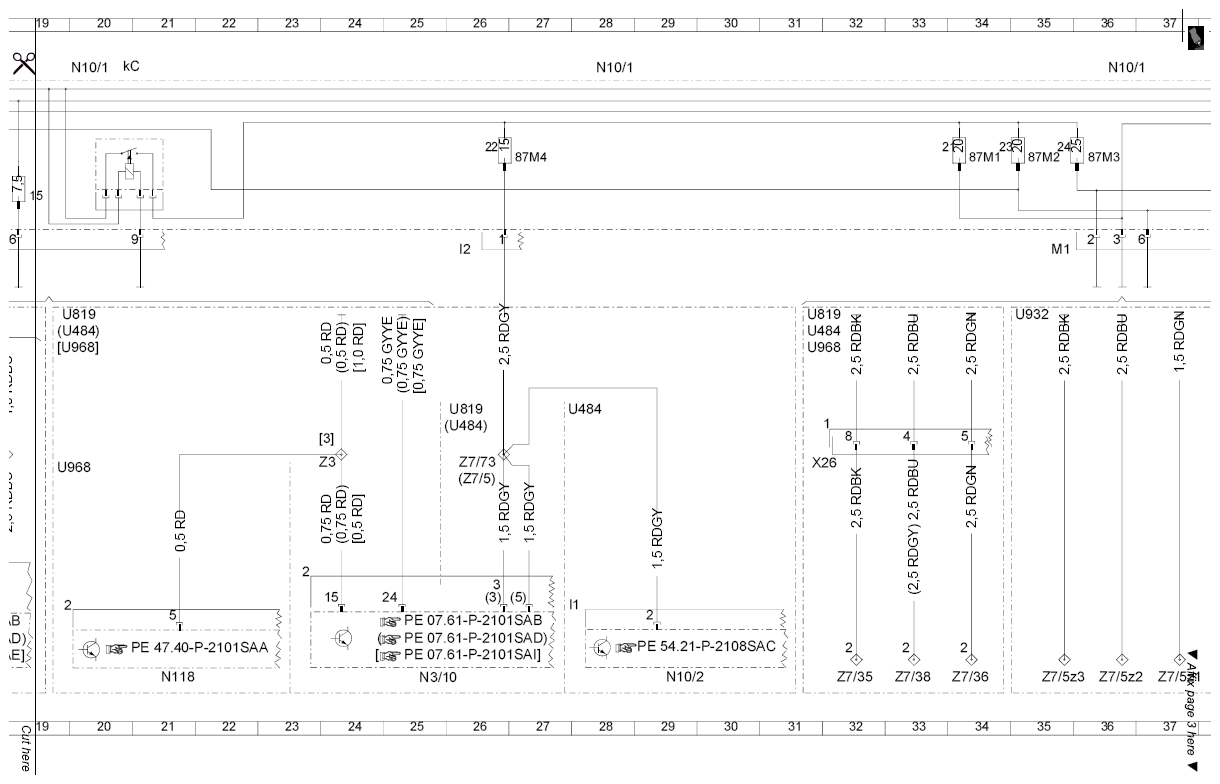

Fig 2: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (2 Of 5)
G07594309Courtesy of MERCEDES-BENZ USA

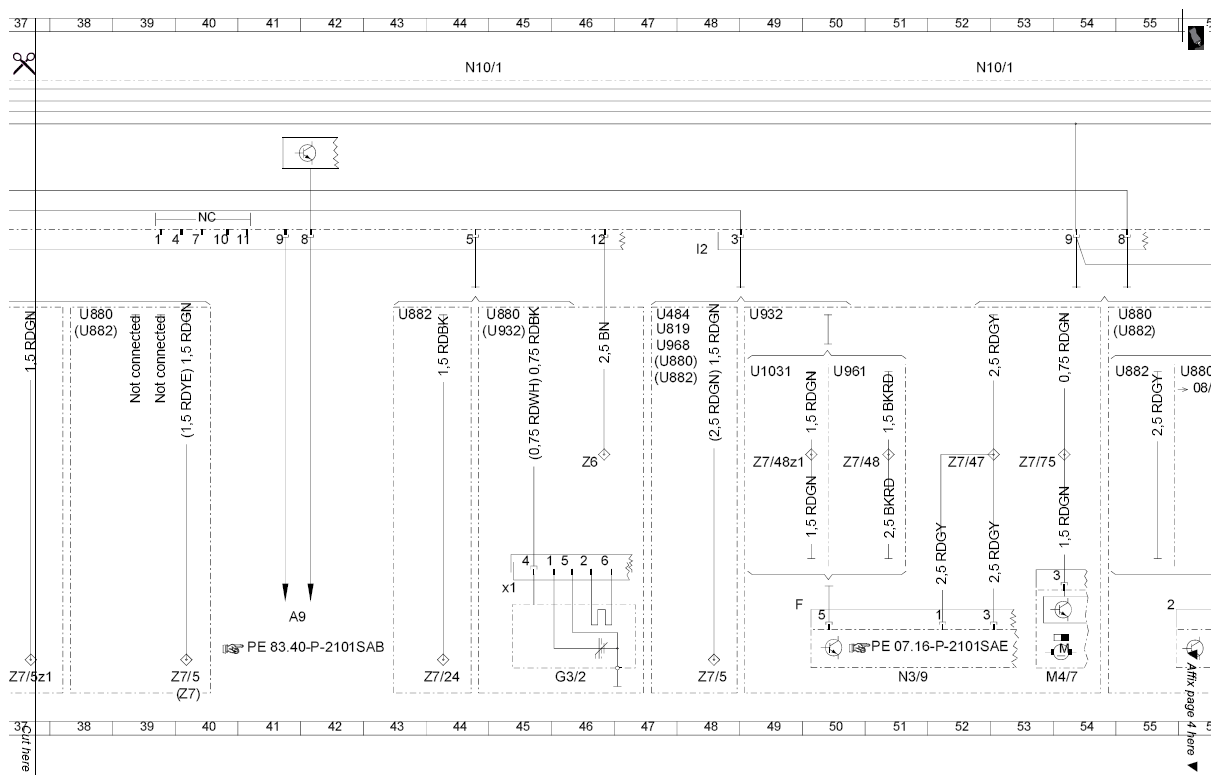

Fig 3: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (3 Of 5)
G07594310Courtesy of MERCEDES-BENZ USA

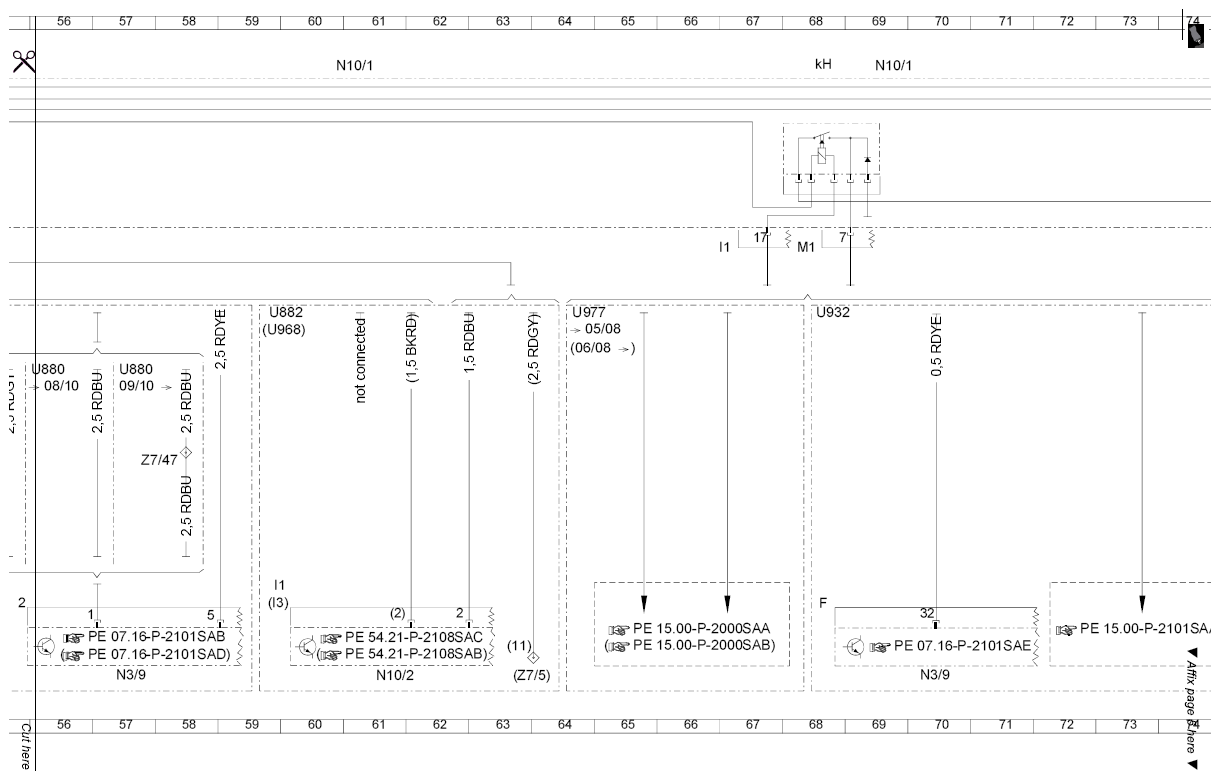

Fig 4: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (4 Of 5)
G07594311Courtesy of MERCEDES-BENZ USA

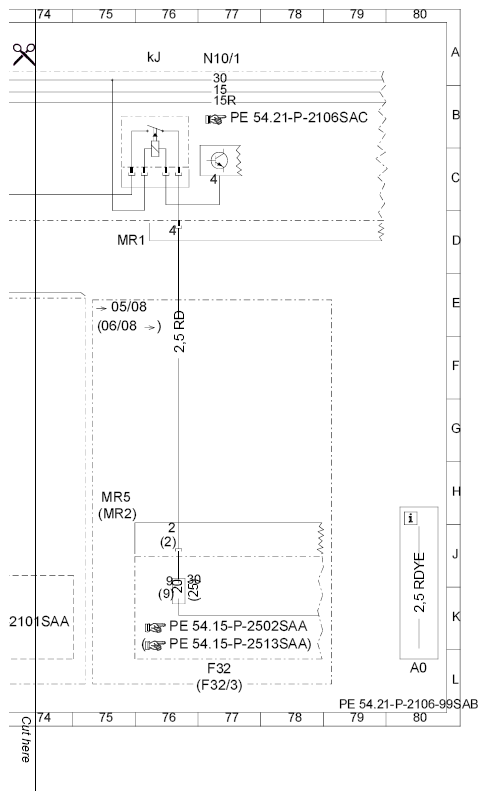

Fig 5: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (5 Of 5)
G07594312Courtesy of MERCEDES-BENZ USA
