| Code: |
Designation: |
Position: |

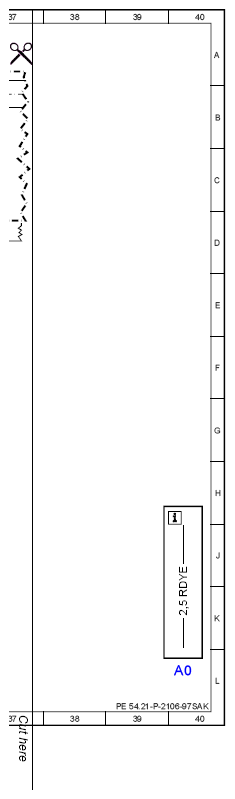

| A0 |
Color code key |
40L |
| B12 |
Refrigerant pressure sensor |
18L |
| CANB |
Interior CAN |
27K |
| E13/3 |
Stowage compartment illumination |
31L |

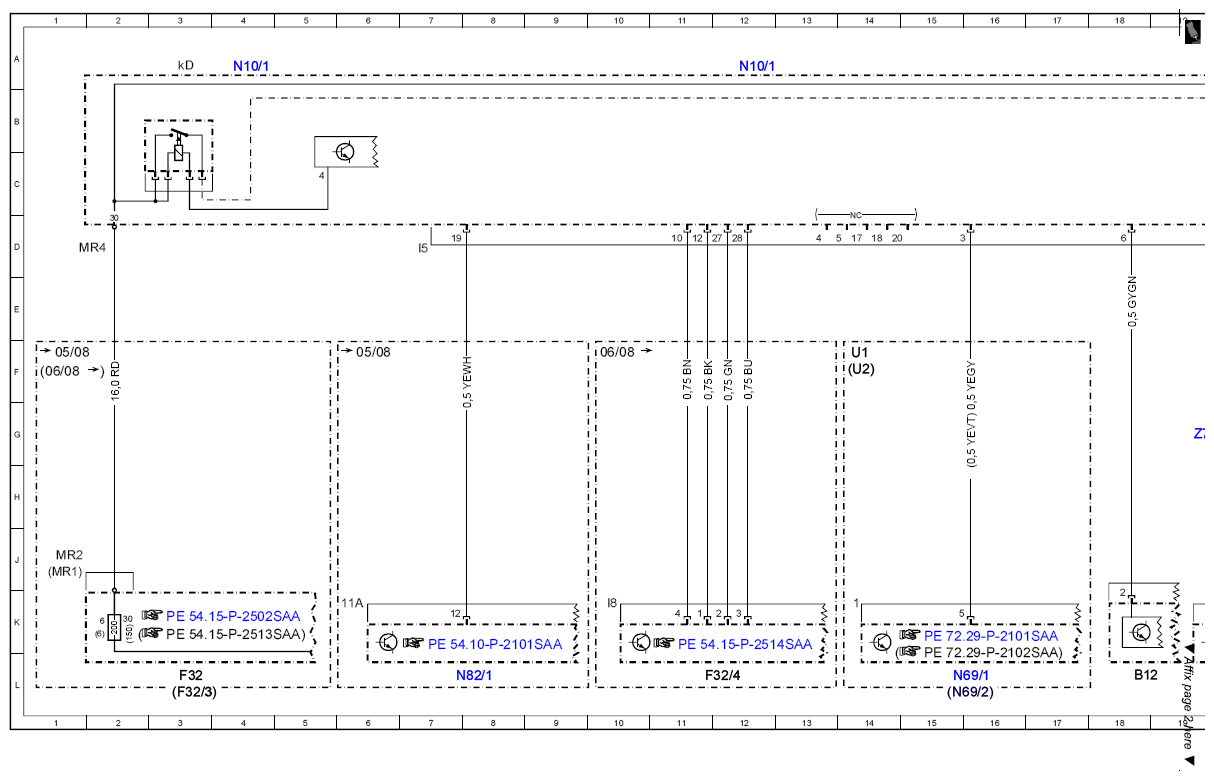

| F32 |
Front prefuse |
3L |
| F32/3 |
Engine compartment prefuse box |
3L |
| F32/4 |
Interior prefuse box |
12L |
| F32f6 |
Fuse 6 |
2K |
| F32f6 |
Fuse 6 |
2K |
| M4/8 |
Control unit box fan motor |
30L |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
35A |
| N10/1f43 |
Fuse 43 |
33C |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
3A |
| N69/1 |
Left front door control unit |
15L |
| N69/2 |
Right front door control unit |
15L |
| N82/1 |
Vehicle power supply control unit |
8L |

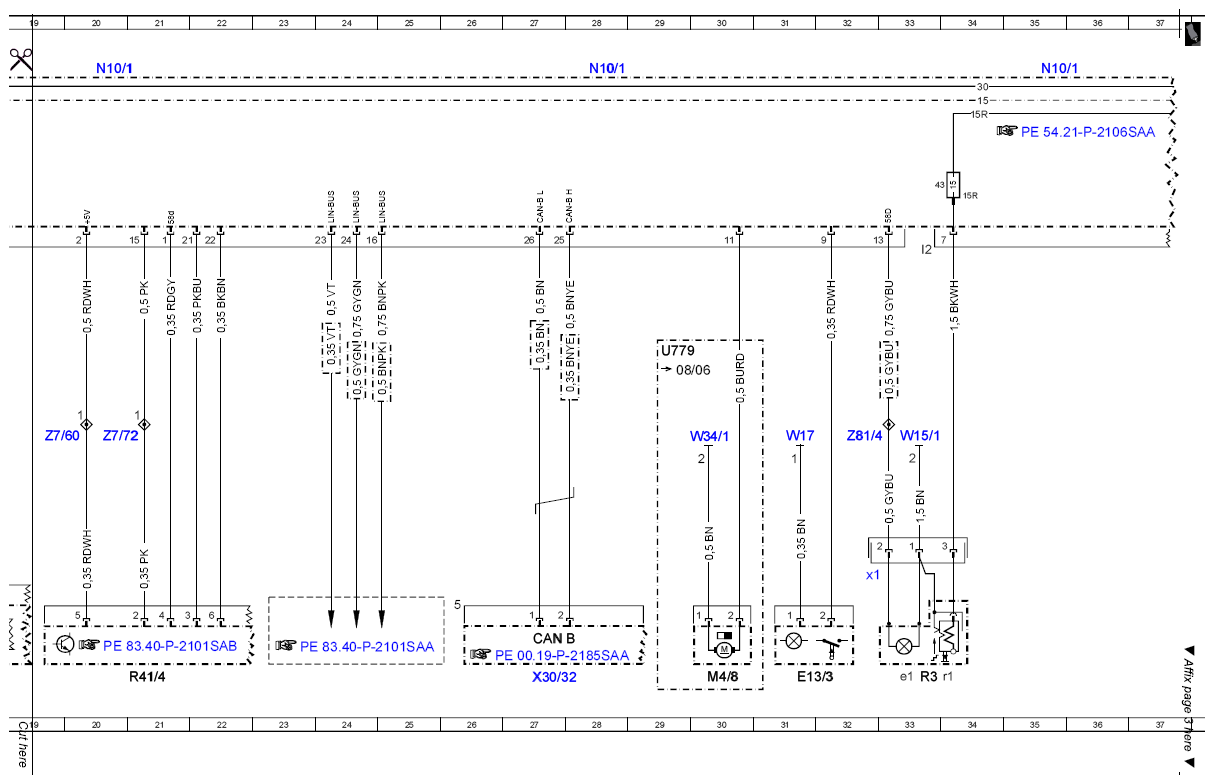

| R3 |
Front cigar lighter (with ashtray illumination) |
33L |
| R3e1 |
Illumination |
33L |
| R3r1 |
Heating element |
34L |
| R3x1 |
Front cigar lighter connector |
32J |
| R41/4 |
Rear center air outlet potentiometer |
21L |
| U1 |
Valid for {{USA}} |
14F |
| U2 |
Valid for all except{{USA}} |
14F |
| U779 |
Valid for engine 275 |
29F |
| W15/1 |
Ground (right footwell) |
33G |
| W17 |
Ground (right rear seat) |
31G |
| W34/1 |
Ground (electronics - left footwell) |
30G |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
27L |
| Z7/60 |
5V output connector sleeve (solder connector in wiring harness) |
19G |
| Z7/72 |
COC nozzles and sensors sensor ground connector sleeve |
20G |
| Z81/4 |
FFS [RBA] circuit 58d connector sleeve |
32G |
