| Code: |
Designation: |
Position: |
| A0 |
Explanation of color codes |
15L |
| F1/7 |
Left instrument panel fuse box |
2L |
| F1/7f111 |
Fuse 111 |
1 K |
| N72/2 |

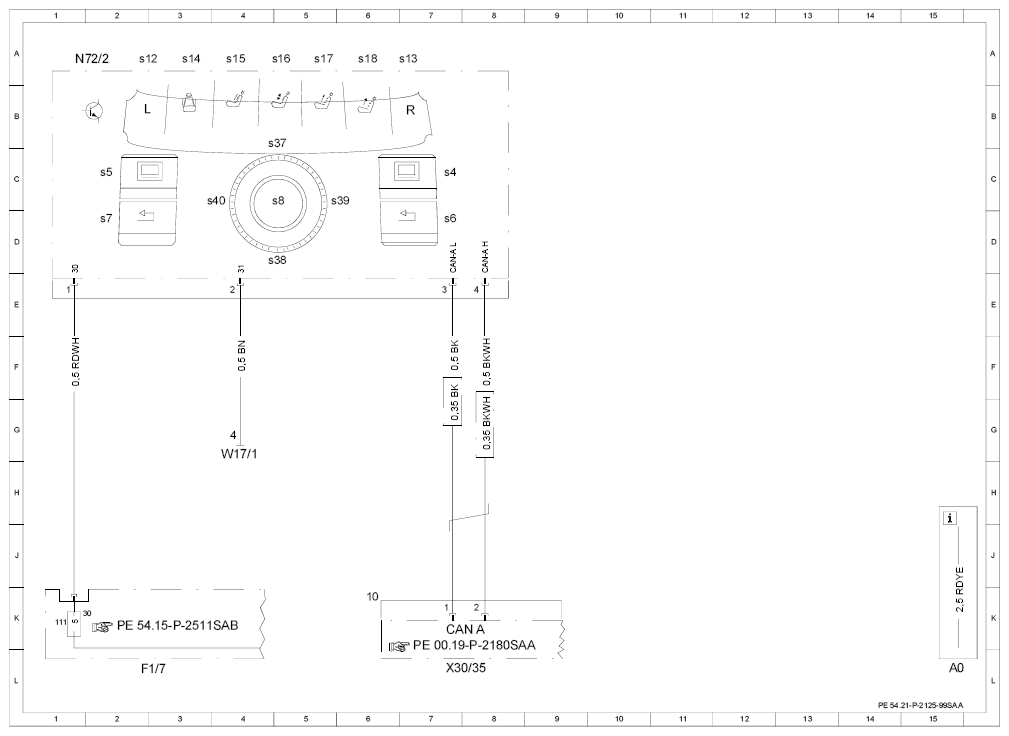

RCP [HBF] control module |
1 A |
| N72/2s12 |
Left seat selection button |
2A |
| N72/2s13 |
Right seat selection button |
6A |
| N72/2s14 |
Backrest side seat contour button |
3A |
| N72/2s15 |
Lumbar support seat contour button |
3A |
| N72/2s16 |
Lumbar support height adjustment button |
4A |
| N72/2s17 |
Gentle massage function button |
5A |
| N72/2s18 |
Firm massage function button |
6A |
| W17/1 |
Ground (left rear seat) |
4E |
| X30/35 |
Telematics CAN voltage distributor connector |
7L |
