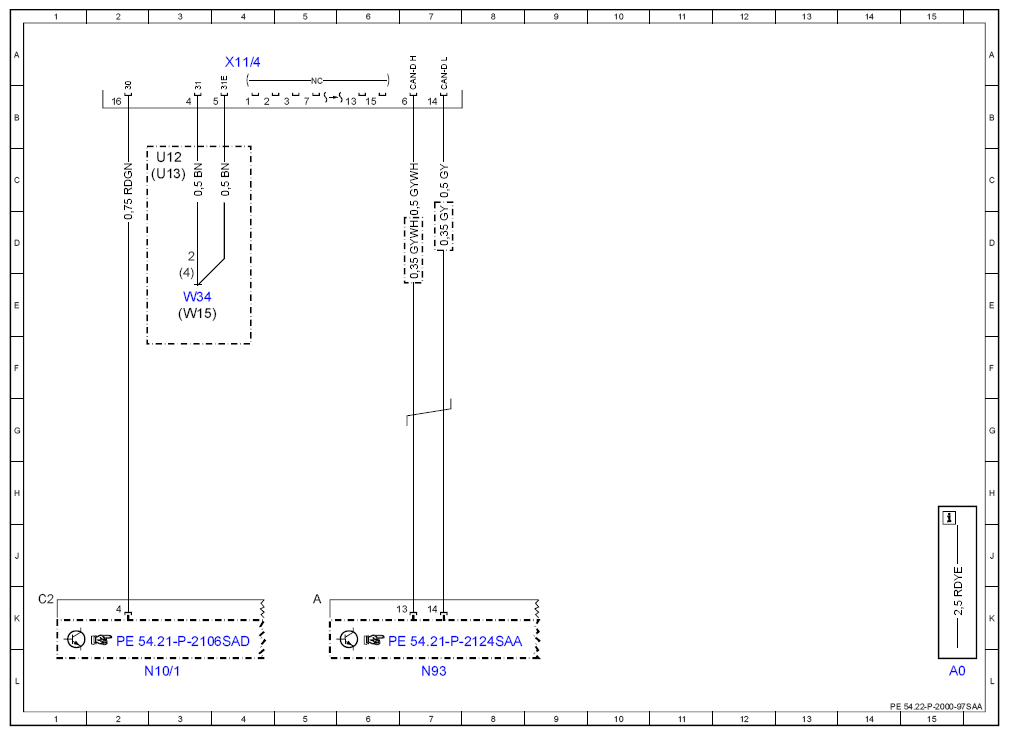

Wiring diagram for data link connector/diagnostic socket - PE54.22-P-2000-97SAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| N10/1 Front SAM control | unit with fuse and relay module | 3L |
| N93 | Central gateway control unit | 7L |
| U12 | Valid for left-hand drive vehicles | 3C |
| U13 | Valid for right-hand drive vehicles | |
| W15 | Power ground (electronics) | |
| W34 | Ground (left footwell) | 3E |
| X11/4 | Data link connector | 4A |
