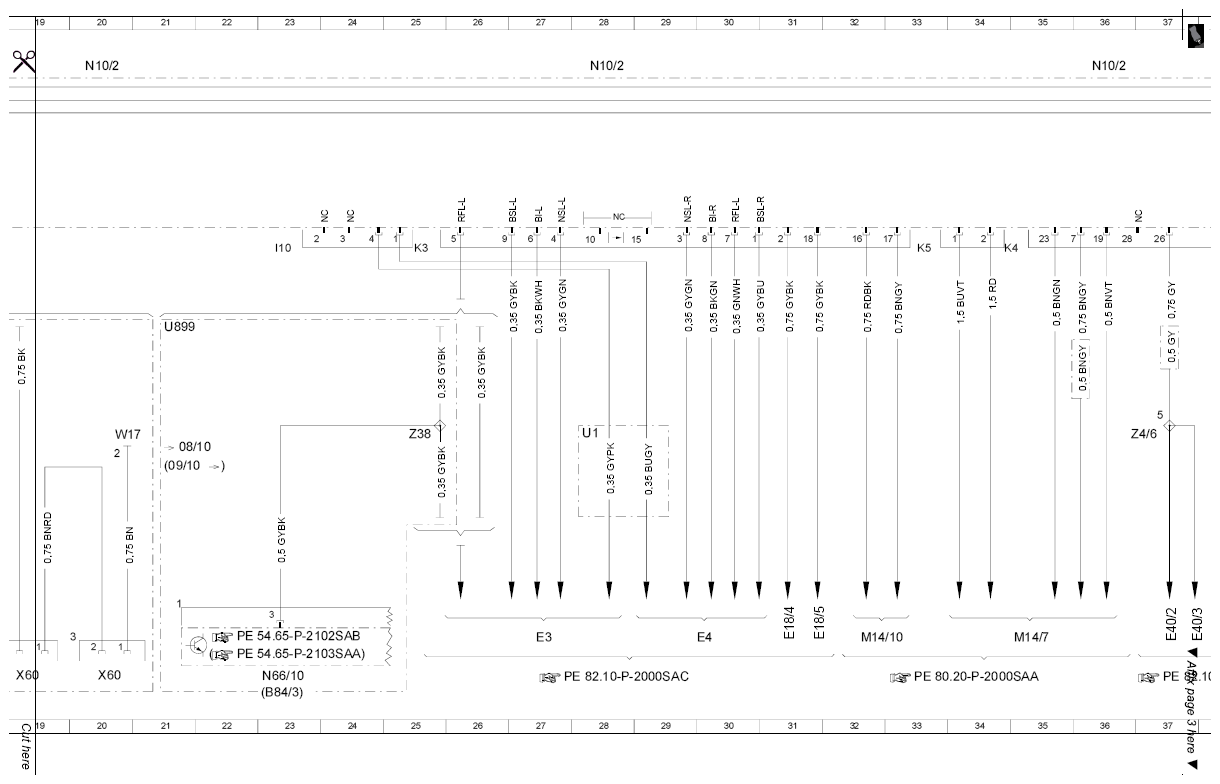

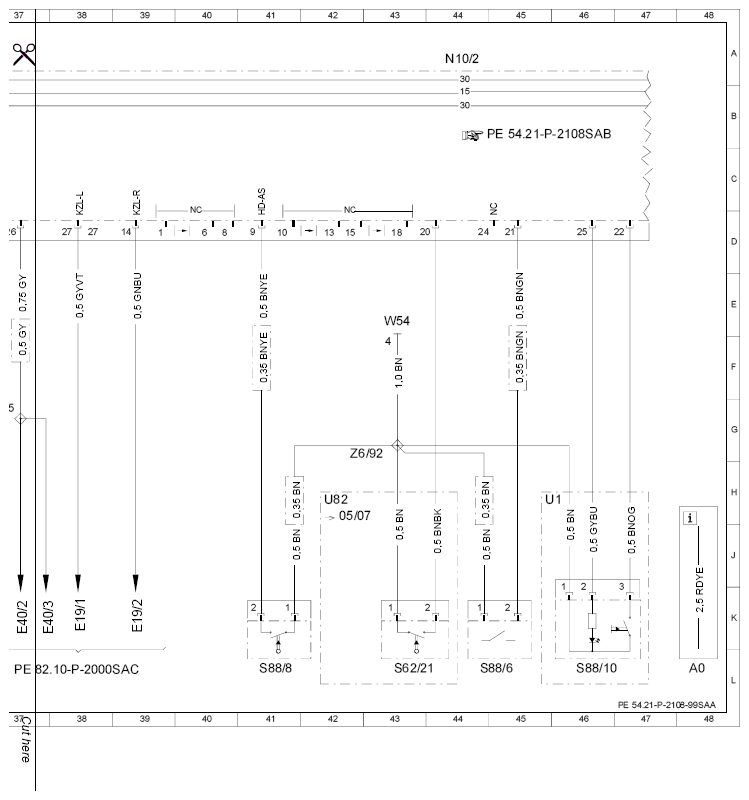

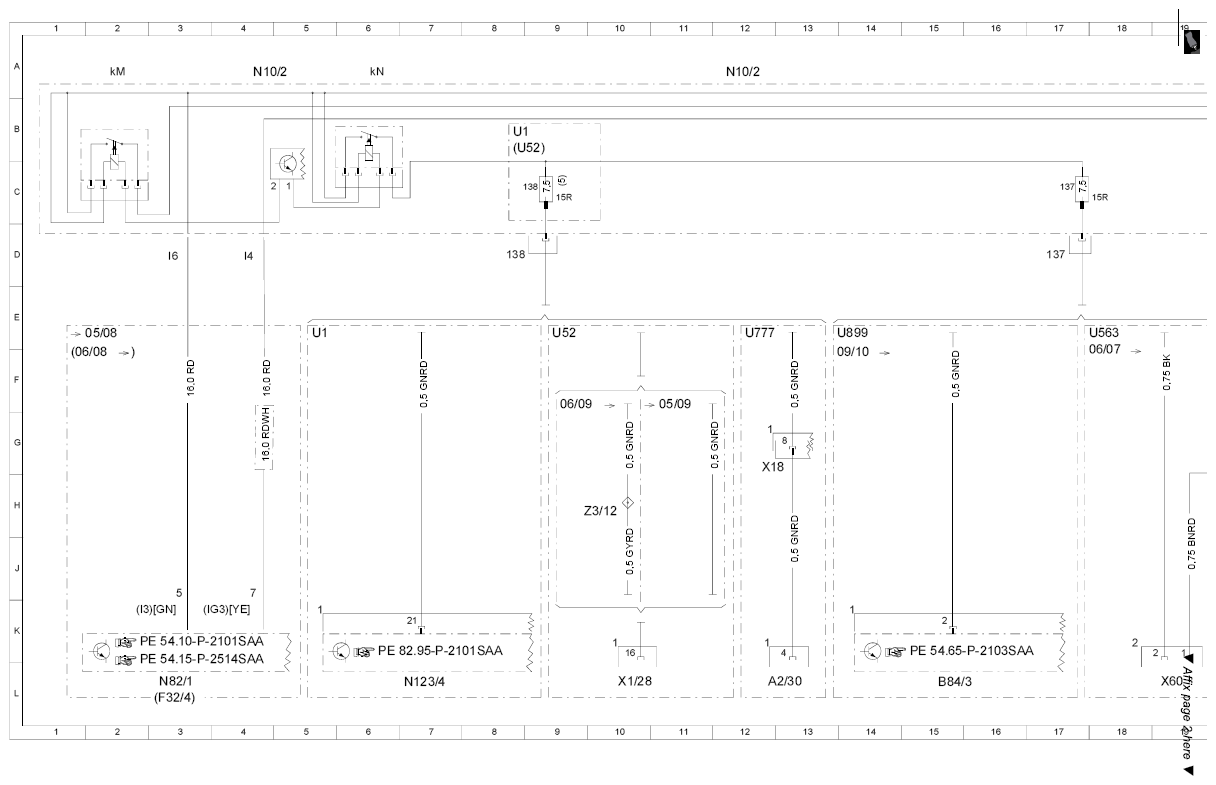

| Code
: |
Designation
: |
Position
: |
| A0 |
Explanation of color codes |
48 L |
| A2/12 |
Rear window antenna amplifier module |
48 L |
| A26/13 |
Ultrasonic echo sounder sensor |
48 L |
| E18/4 |
Right trunk lamp |
20 K |
| E18/5 |
Left trunk lamp |
20 K |
| E19/1 |
Left license plate lamp |
27 K |
| E19/2 |
Right license plate lamp |
28 K |
| E21 |
Center high-mounted stop lamp |
48 K |
| E3 |
Left taillamp |
16K |
| E4 |
Right taillamp |
18K |
| E40/2 |
Left trunk lid ambient and warning lamp |
26 K |
| F1/6 |
Right instrument panel fuse box |
48 L |
| F1/6f79 |
Fuse 79 |
48 K |
| H3/1 |
Alarm signal siren |
48 L |
| M14/10 |
Fuel filler flap CL motor |
21 K |
| M14/7 |
Trunk lid CL [ZV] motor |
23 K |
| N10/1 |
Front SAM control module with fuse anc relay module |
46 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
4A |
| N10/2 |
Rear SAM control module with fuse and relay module |
12A |
| N10/2 |
Rear SAM control module with fuse and relay module |
20 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
28 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
36 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
44 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
48 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
48 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
48 A |
| N10/2f137 |
Fuse 137 |
10C |
| N10/2f138 |
Fuse 138 |
6C |
| N10/2kM |
Circuit 15 relay |
2A |
| N10/2kN |
Circuit 15R relay |
5A |
| N123/4 |
Emergency call system control unit |
7L |
| N2/7 |
Restraint systems control module |
48 L |
| N28/1 |
Trailer recognition control module |
38 L |
| N82/1 |
Vehicle power supply control unit |
3L |
| S10/4 |
Right rear brake pad contact sensor |
48 L |
| S10/4x1 |
Right rear brake pad contact sensor connector |
48 J |
| S62 |
ATA [EDW] hood switch |
43 L |
| S62/21 |
Trunk lid KEYLESS-GO button |
32 L |
| S68/11 |
Left rear seat belt buckle switch |
41 K |
| S68/12 |
Right rear seat belt buckle switch |
42 K |
| S88/10 |
Trunk lid emergency release switch |
35 L |
| S88/6 |
Trunk lid contact switch |
33 L |
| S88/8 |
Trunk lid external operation switch |
30 L |
| U1 |
Valid for {{USA}} |
16G |
| U1 |
Valid for {{USA}} |
34 H |
| U12 |
Valid for left-hand steering |
44 G |
| U13 |
Valid for right-hand steering |
44 G |
| U563 |
Valid for rear entertainment (DVD) |
9E |
| U82 |
Valid for KEYLESS GO |
31 H |
| U899 |
Valid for backup camera |
13E |
| U905 |
Valid for interior protection |
48 F |
| W15/1 |
Ground (right footwell) |
44 H |
| W17 |
Ground (right rear seat) |
12G |
| W17 |
Ground (right rear seat) |
48 E |
| W34/1 |
Ground (electronics - left footwell) |
44 H |
| W34/1 |
Ground (electronics - left footwell) |
48 H |
| W54 |
Ground, wheelhousing rear right |
32 E |
| X1/16 |
Roof antenna connector |
48 H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
48 H |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
48 L |
| X60 |
Volume control intermediate connector |
10L |
| X60 |
Volume control intermediate connector |
12L |
| X62/33 |
Right rear axle electrical distributor connector |
48 H |
| Y24/11 |
Rear head restraints valve block |
48 L |
| Z38 |
Reversing lamp connector sleeve |
14G |
| Z4/6 |
Luggage compartment lamp circuit 30 connector sleeve |
25 G |
| Z6/92 |
Trunk lid ground connector sleeve |
31 H |
