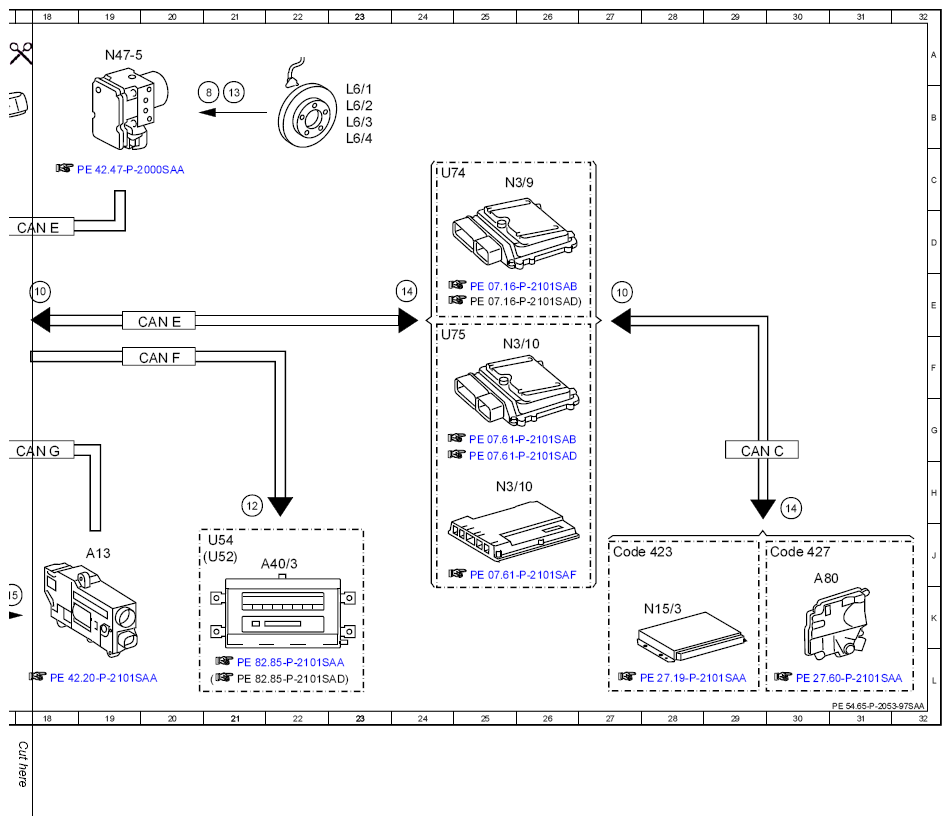

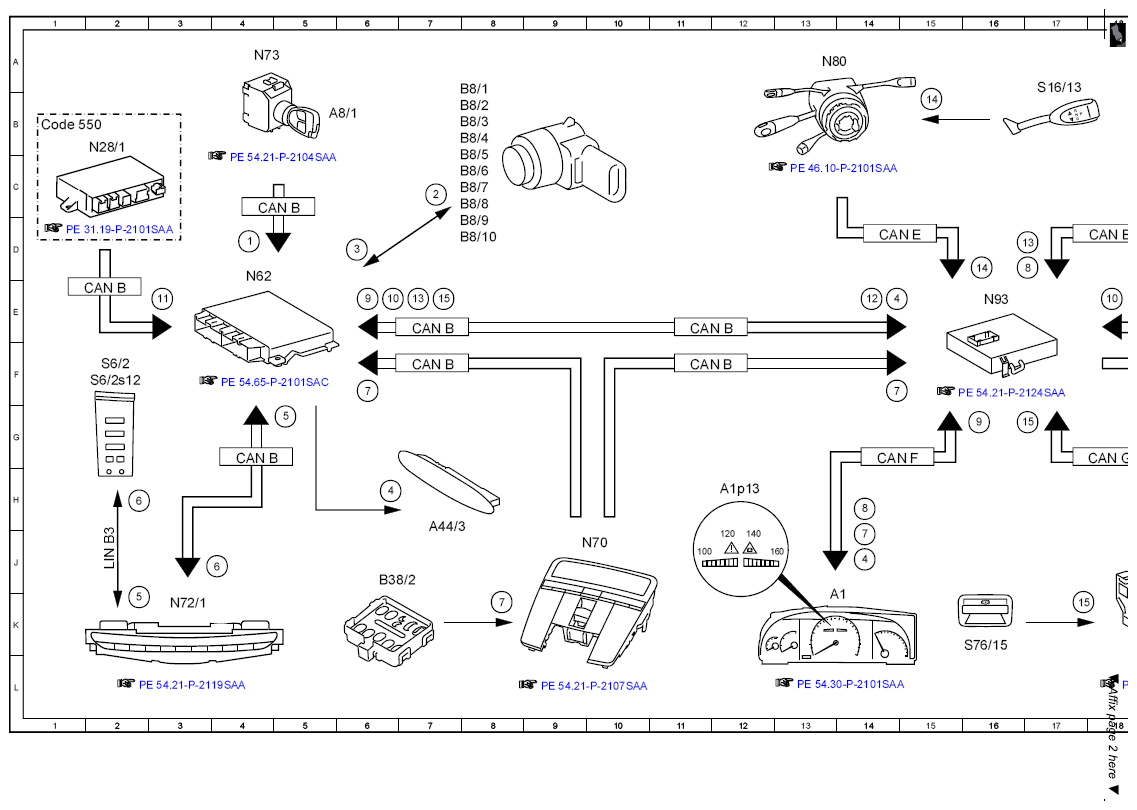

| Code
: |
Designation
: |
Position
: |
| 1 |
Circuit 15, status |
|
| 10 |
Reverse gear, status |
27E |
| 10 |
Reverse gear, status |
|
| 10 |
Reverse gear, status |
|
| 11 |
Trailer recognition, status |
|
| 12 |
Mute, signal |
21H |
| 12 |
Mute, signal |
|
| 13 |
Wheel rotation direction, signal |
16D |
| 13 |
Wheel rotation direction, signal |
21B |
| 13 |
Wheel rotation direction, signal |
|
| 14 |
Gear range, request |
24E |
| 14 |
Gear range, request |
30H |
| 14 |
Gear range, request |
15B |
| 14 |
Gear range, request |
16D |
| 15 |
Parking brake, status |
17K |
| 15 |
Parking brake, status |
|
| 15 |
Parking brake, status |
|
| 2 |
PTS ultrasonic sensor, actuation |
|
| 3 |
PTS ultrasonic sensor, signal |
|
| 4 |
PTS warning indicator, actuation |
|
| 4 |
PTS warning indicator, actuation |
|
| 4 |
PTS warning indicator, actuation |
|
| 5 |
PTS OFF switch, status |
|
| 5 |
PTS OFF switch, status |
|
| 6 |
PARKTRONIC status indication, actuation |
2H |
| 6 |
PARKTRONIC status indication, actuation |
4J |
| 7 |
Rain/light sensor, status |
6F |
| 7 |
Rain/light sensor, status |
8K |
| 7 |
Rain/light sensor, status |
14F |
| 7 |
Rain/light sensor, status |
|
| 8 |
Wheel speed, signal |
21B |
| 8 |
Wheel speed, signal |
17D |
| 8 |
Wheel speed, signal |
|
| 9 |
Vehicle speed, signal |
|
| 9 |
Vehicle speed, signal |
|
| A1 |
Instrument cluster |
13K |
| A13 |
Electric parking brake control unit |
19J |
| A1p13 |
Multifunction display |
12H |
| A40/3 |
COMAND control unit |
22J |
| A44/3 |
Rear PTS warning indicator |
7J |
| A8/1 |
Transmitter key |
5B |
| A80 |
Intelligent servo module for DIRECT SELECT |
30J |
| B38/2 |
Rain/light sensor |
6J |
| B8/1 |
Outer left front PTS ultrasonic sensor |
7B |
| B8/10 |
Outer left rear PTS ultrasonic sensor |
7D |
| B8/2 |
Center left front PTS ultrasonic sensor |
7B |
| B8/3 |
Inner left front PTS ultrasonic sensor |
7B |
| B8/4 |
Inner right front PTS ultrasonic sensor |
7B |
| B8/5 |
Center right front PTS ultrasonic sensor |
7C |
| B8/6 |
Outer right front PTS ultrasonic sensor |
7C |
| B8/7 |
Outer right rear PTS ultrasonic sensor |
7C |
| B8/8 |
Inner right rear PTS ultrasonic sensor |
7C |
| B8/9 |
Inner left rear PTS ultrasonic sensor |
7D |
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CANC |
Drive train CAN |
|
| CAN E |
Chassis CAN |
|
| CAN E |
Chassis CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| CAN F |
Central CAN |
|
| CANG |
Front end CAN |
|
| Code 423 |
5-speed automatic transmission |
|
| Code 427 |
7-speed automatic transmission |
|
| Code 550 |
Trailer hitch |
|
| L6/1 |
Left front RPM sensor |
23B |
| L6/2 |
Right front RPM sensor |
23B |
| L6/3 |
Left rear RPM sensor |
23B |
| L6/4 |
right rear RPM sensor |
23B |
| LIN B3 |
OBF LIN |
|
| N15/3 |
ETC [EGS] control unit |
28K |
| N28/1 |
Trailer recognition control unit |
2B |
| N3/10 |
ME-SFI [ME] control unit |
25H |
| N3/10 |
ME-SFI [ME] control unit |
25F |
| N3/9 |
CDI control unit |
25C |
| N47-5 |
ESP control unit |
19A |
| N62 |
PTS control unit |
4E |
| N70 |
Overhead control panel control unit |
10J |
| N72/1 |
Upper control panel control unit |
3K |
| N73 |
EIS [EZS] control unit |
4A |
| N80 |
Steering column module |
13A |
| N93 |
Central gateway control unit |
16E |
| S16/13 |
Gear selector switch DIRECT SELECT |
17A |
| S6/2 |
Cockpit switch group |
2F |
| S6/2s12 |
PTS OFF switch |
2F |
| S76/15 |
Electric parking brake switch |
16K |
| U52 |
Valid for Japan |
21J |
| U54 |
Valid for all except Japan |
21J |
| U74 |
Valid for diesel engines |
24C |
| U75 |
Valid for gasoline engines |
24F |
