Instrument cluster (IC), networking of components - GF54.30-P-0002-06SX

Networking of components shown on model 221 with engine 272 up to 31.8.06

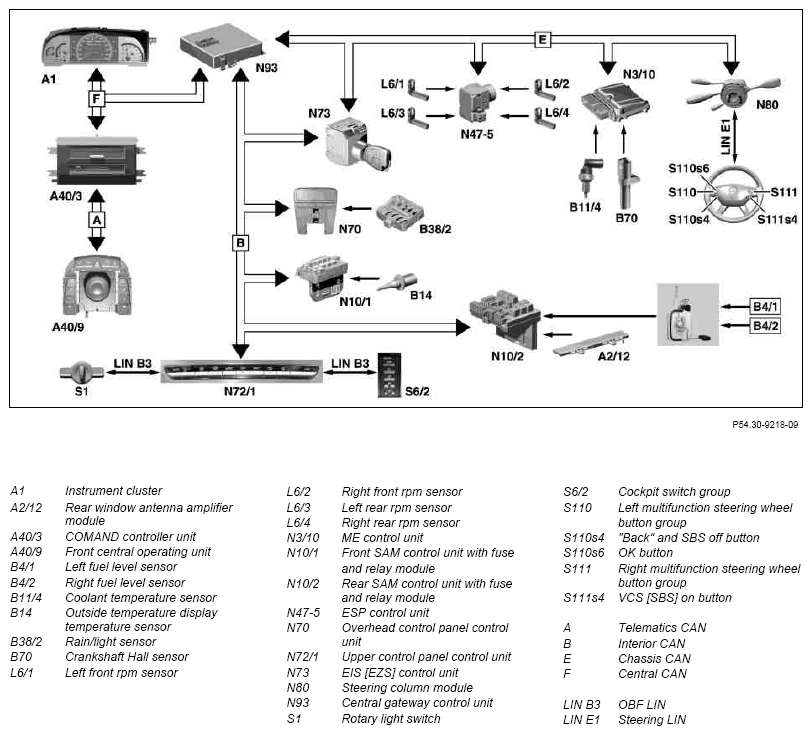

Fig 1: Networking Of Instrument Cluster Components
G07593790Courtesy of MERCEDES-BENZ USA
