Instrument cluster (IC), location of components - GF54.30-P-0002-04LE

Shown on model 221.0 up to 31.5.09

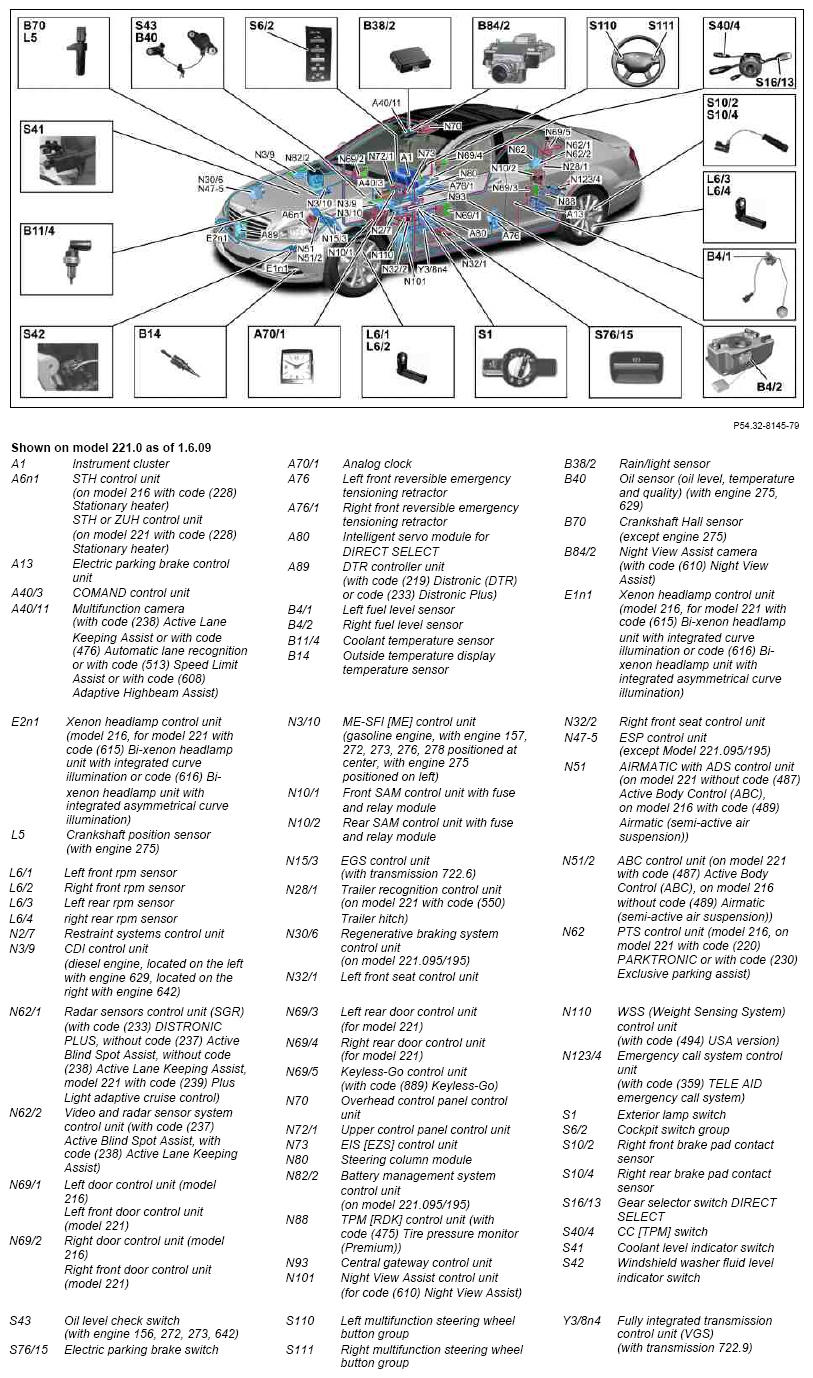

Fig 1: Locating Instrument Cluster Components (Up To 31.5.09)

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 as of 1.6.09

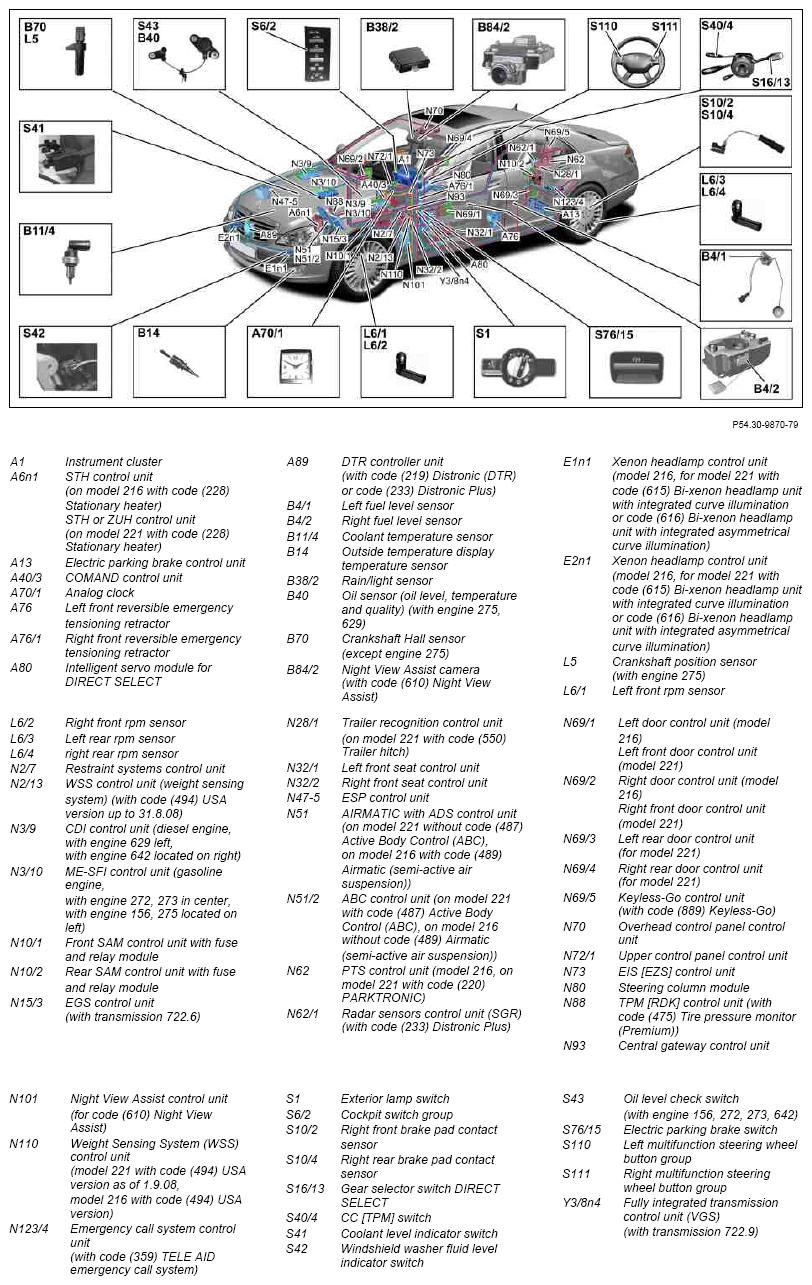

Fig 2: Locating Instrument Cluster Components (As Of 1.6.09)

Courtesy of MERCEDES-BENZ USA
