Instrument cluster (IC), block diagram - GF54.30-P-0002-01LE

Shown up to 31.5.09

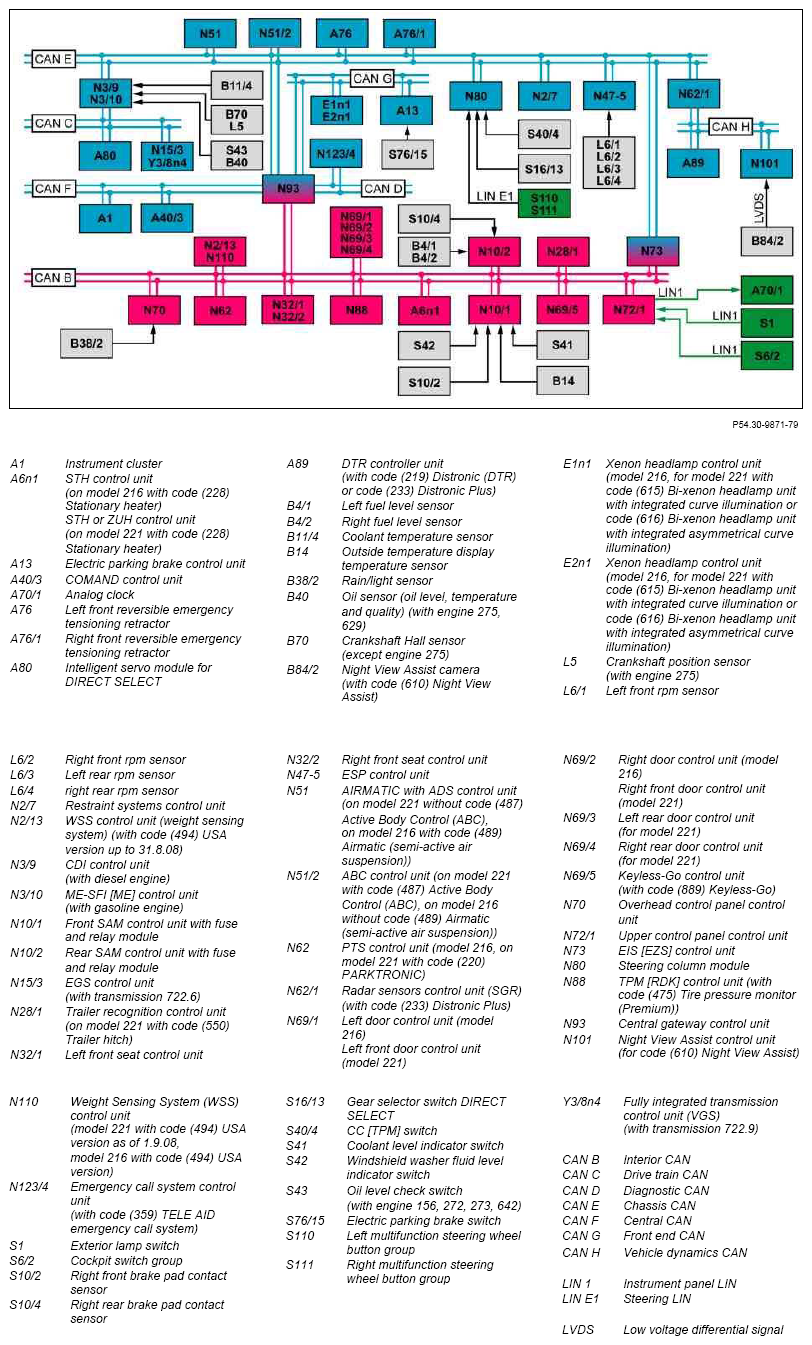

Fig 1: Instrument Cluster (IC) Block Diagram (Up To 31.5.09)
G07593780Courtesy of MERCEDES-BENZ USA

Shown as of 1.6.09

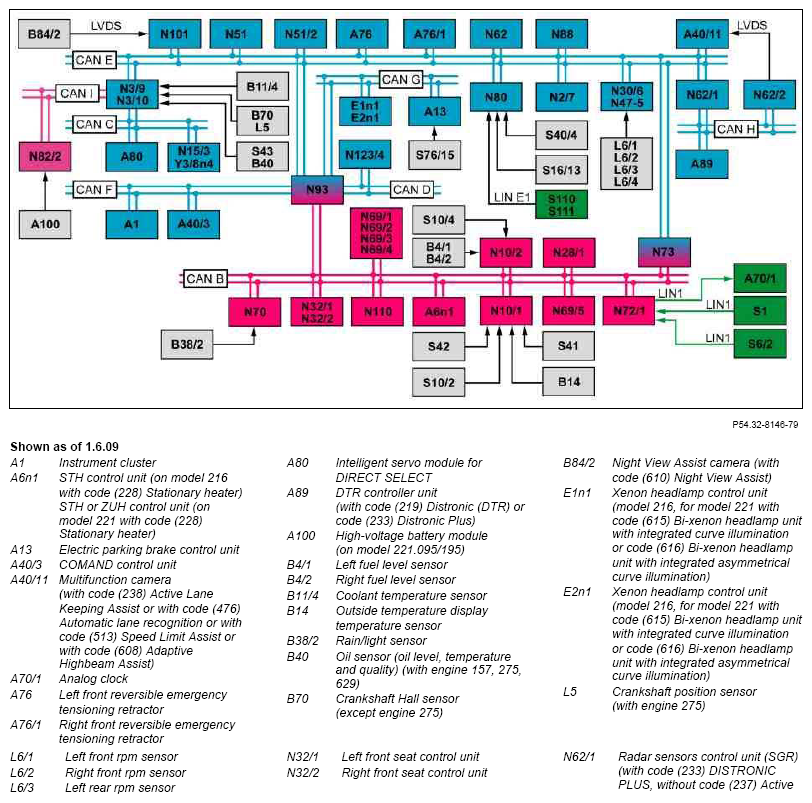

Fig 2: Instrument Cluster (IC) Block Diagram - As Of 1.6.09 (1 Of 2)
G07593781Courtesy of MERCEDES-BENZ USA

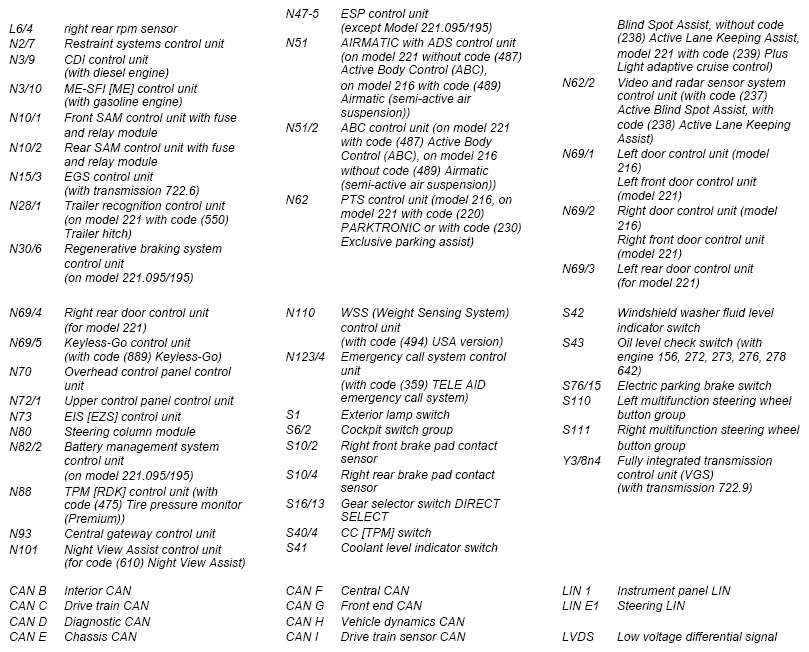

Fig 3: Instrument Cluster (IC) Block Diagram - As Of 1.6.09 (2 Of 2)
G07593782Courtesy of MERCEDES-BENZ USA
