Cockpit central display, location of components - GF54.30-P-0004-01SXC

Illustrated on model 221

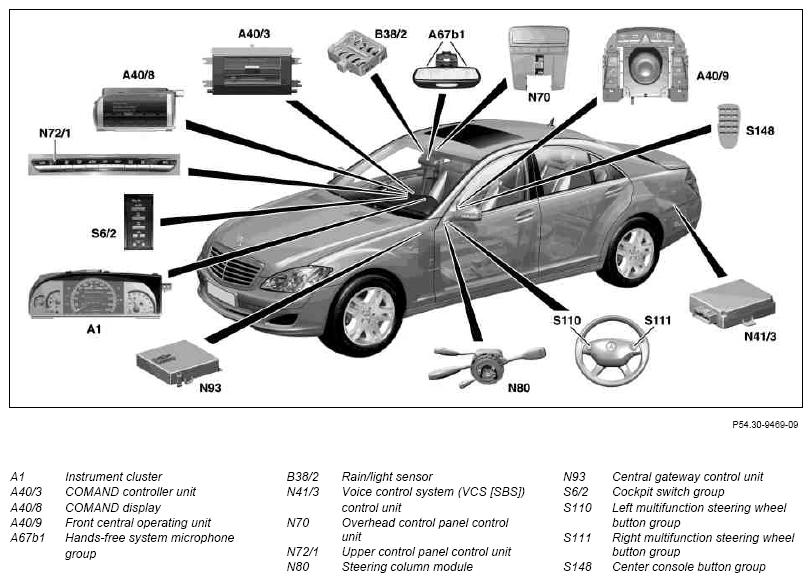

Fig 1: Locating Cockpit Central Display Components

G07593793

Courtesy of MERCEDES-BENZ USA
