Cockpit central display, location of components - GF54.30-P-0004-01SX

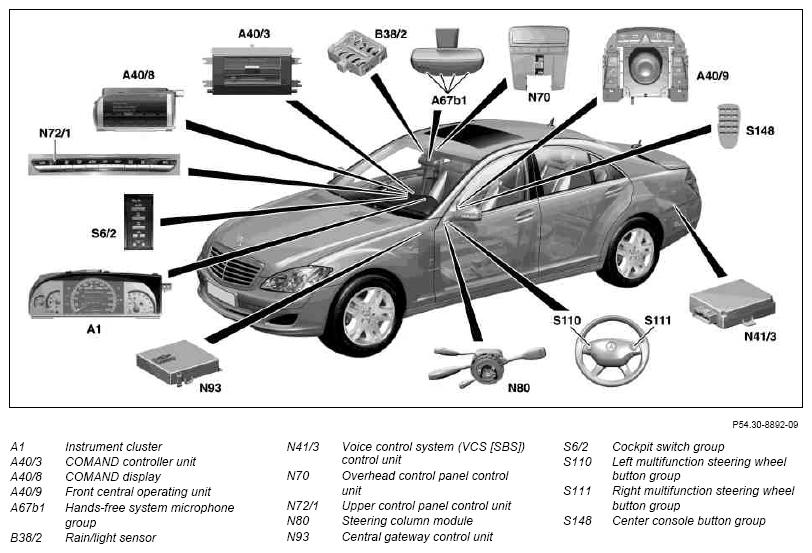

Fig 1: Locating Cockpit Central Display Components

G07593792

Courtesy of MERCEDES-BENZ USA
