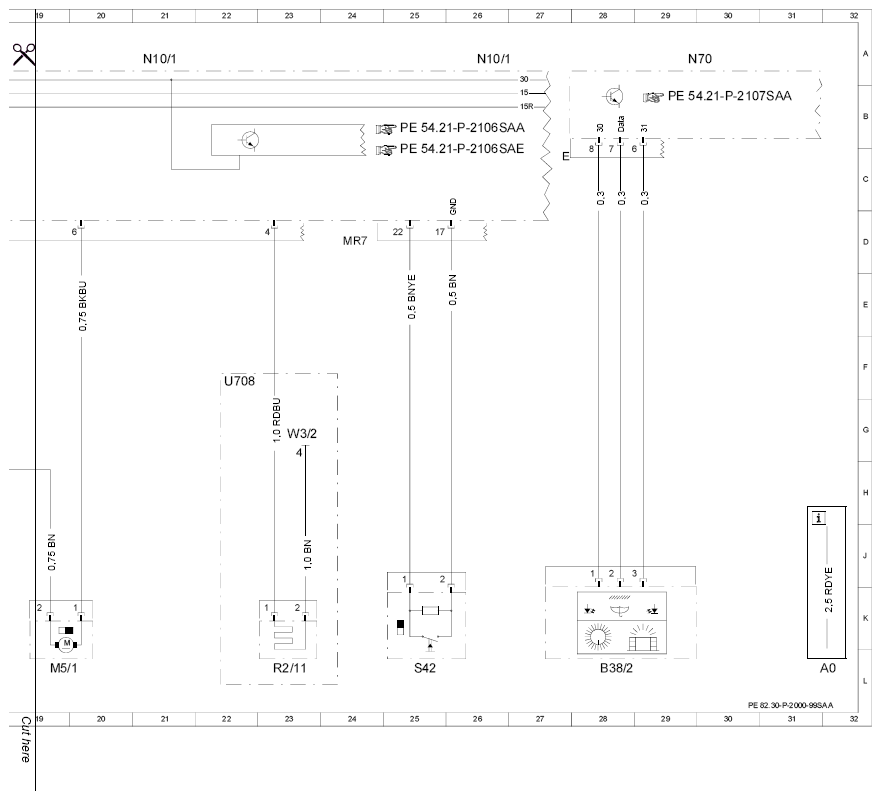

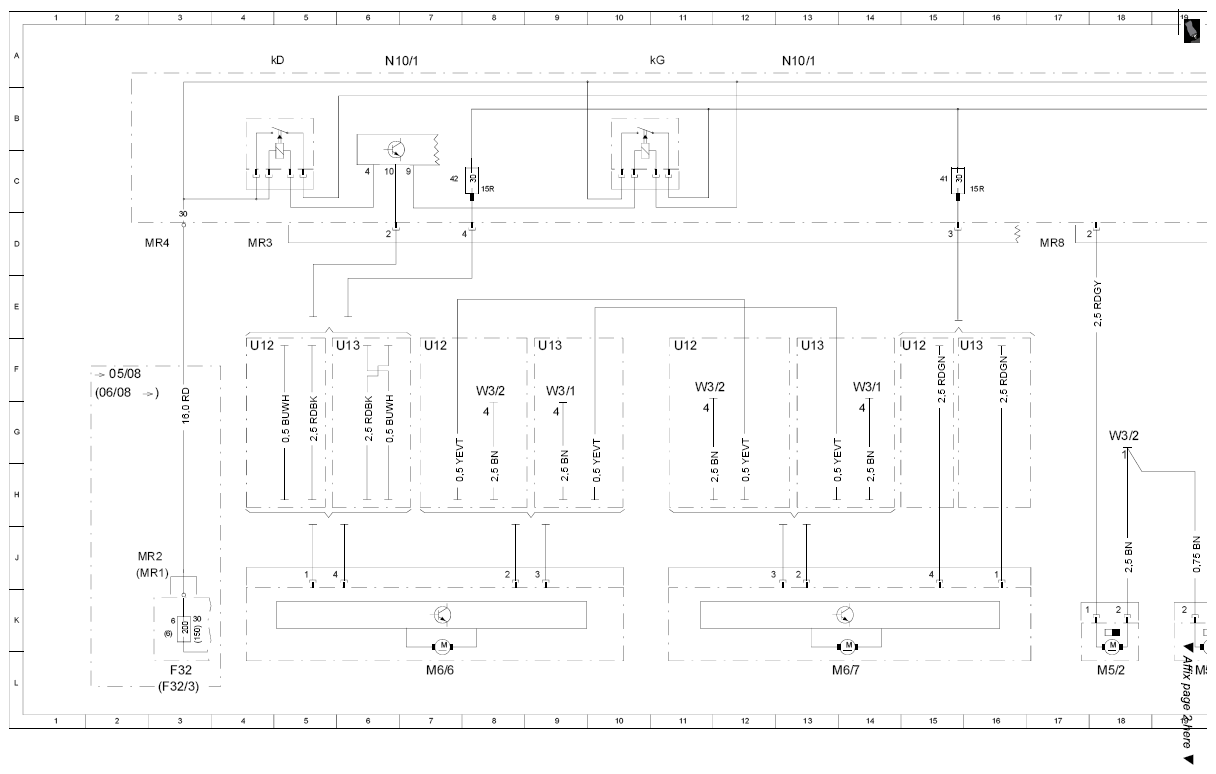

| A0 |
Explanation of color codes |
31 L |
| B38/2 |
Rain/light sensor |
27 L |
| F32 |
Front prefuse |
2 L |
| F32f6 |
Fuse 6 |
1 K |
| M5/1 |
Windshield washer fluid pump |
18 L |
| M5/2 |
HCS pump |
16 L |
| M6/6 |
Master wiper motor |
6 L |
| M6/7 |
Slave wiper motor |
12 L |
| N10/1 |
Front SAM control module with fuse and relay module |
5 A |
| N10/1 |
Front SAM control module with fuse and relay module |
11 A |
| N10/1 |
Front SAM control module with fuse and relay module |
19 A |
| N10/1 |
Front SAM control module with fuse and relay module |
25 A |
| N10/1f41 |
Fuse 41 |
14 C |
| N10/1f42 |
Fuse 42 |
6 C |
| N10/1kD |
Circuit 15 relay |
3 A |
| N10/1kG |
Circuit 15R relay |
9 A |
| N70 |
Overhead control panel control module |
28 A |
| R2/11 |
Washer nozzle hose heater |
19 L |
| S42 |
Windshield washer fluid level indicator switch |
21 L |
| U12 |
Valid for left-hand steering |
3 F |
| U12 |
Valid for left-hand steering |
6 F |
| U12 |
Valid for left-hand steering |
10 F |
| U12 |
Valid for left-hand steering |
13 F |
| U13 |
Valid for right-hand steering |
4 F |
| U13 |
Valid for right-hand steering |
7 F |
| U13 |
Valid for right-hand steering |
12 F |
| U13 |
Valid for right-hand steering |
14 F |
| W3/1 |
Ground (right front wheelhousing) |
7 G |
| W3/1 |
Ground (right front wheelhousing) |
12 F |
| W3/2 |
Ground (left front wheelhousing) |
6 G |
| W3/2 |
Ground (left front wheelhousing) |
10 F |
| W3/2 |
Ground (left front wheelhousing) |
16 G |
| W3/2 |
Ground (left front wheelhousing) |
20 G |
