Wiring Schematic for satellite digital audio radio system control unit (SDAR) - PE82.60-P-2301-99SAA

Code:	Designation:	Position:
A0	Explanation of color codes	15 L
A2/82	SDAR antenna	8 L
F1/7	Left instrument panel fuse box	2 L
F1/7f107	Fuse 107	1 K
N87/5	SDAR control unit	4 A
N87/5	SDAR control unit	9 A
W6	Ground (left wheelhousing in trunk)	2 E

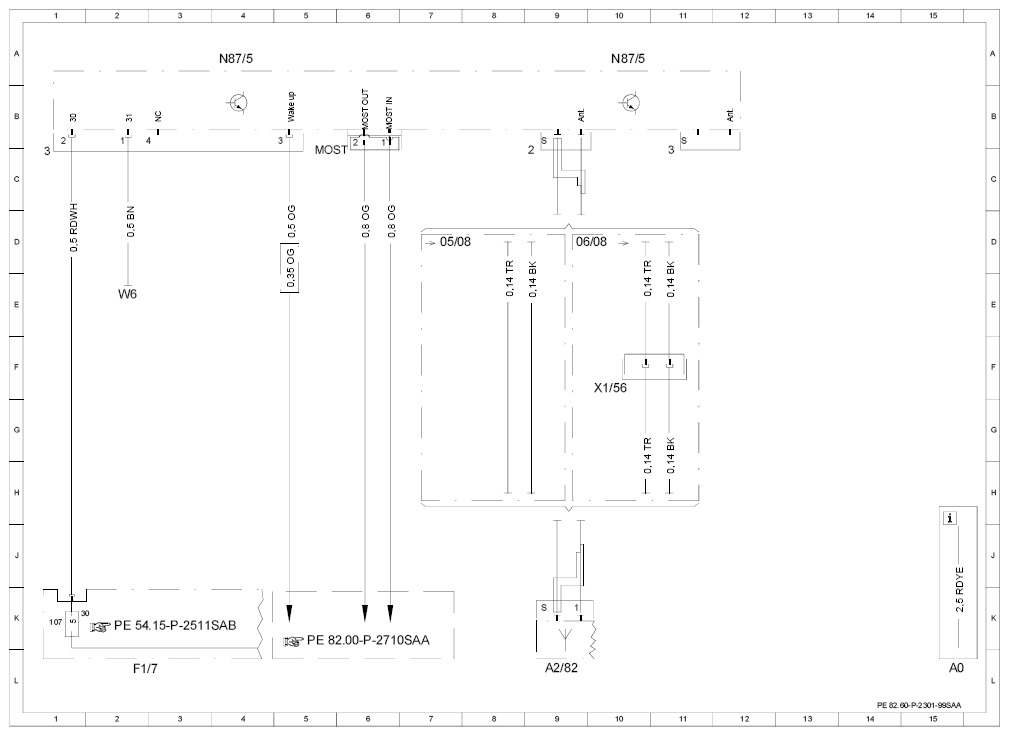

Fig 1: Satellite Digital Audio Radio System Control Unit (SDAR) Wiring Schematic

Courtesy of MERCEDES-BENZ USA
