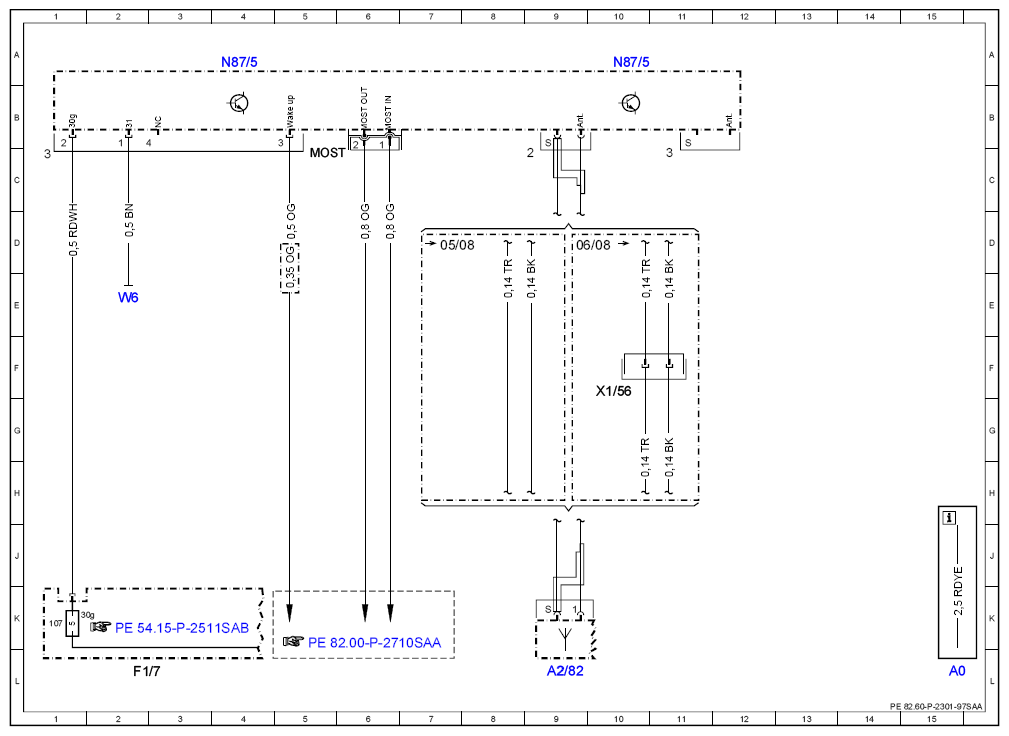

Wiring Schematic for satellite digital audio radio system control unit (SDAR) - PE82.60-P-2301-97SAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2/82 | SDAR antenna | 9L |
| F1/7 | Left instrument panel fuse box | 2L |
| F1/7f107 | Fuse 107 | 1K |
| MOST | Media Oriented System Transport | 5C |
| N87/5 | SDAR control unit | 4A |
| N87/5 | SDAR control unit | 10A |
| W6 | Ground (left wheelhouse in luggage compartment) | 2E |
| X1/56 | DAB/SDARS antenna separation point | 10F |
