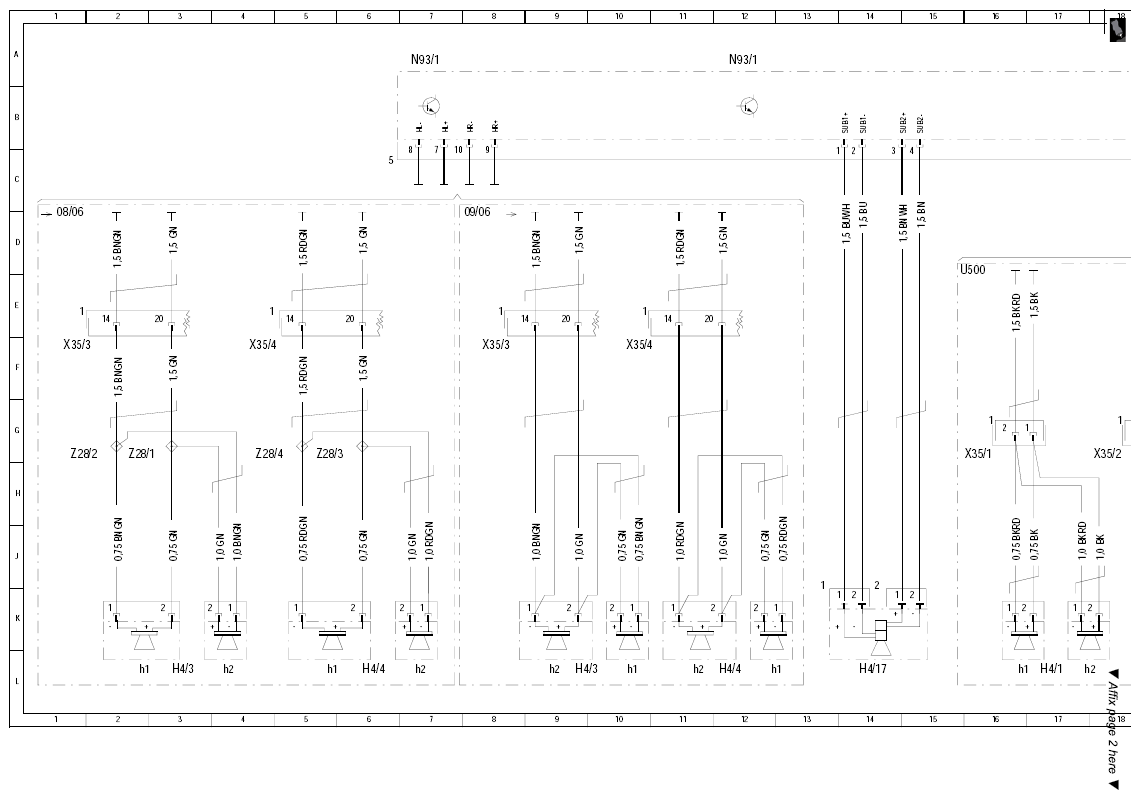

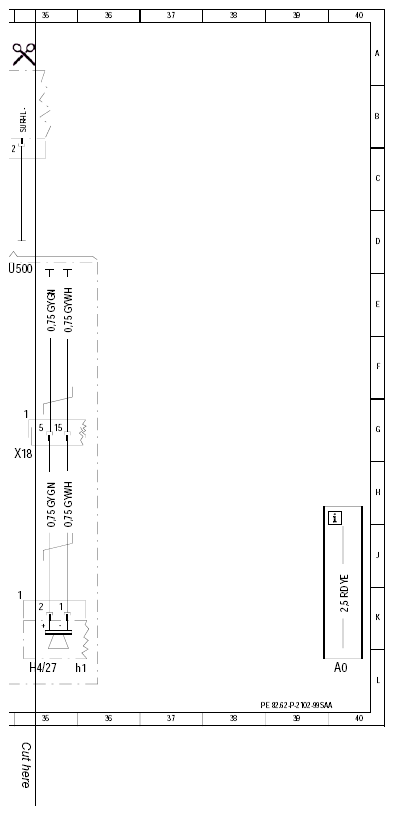

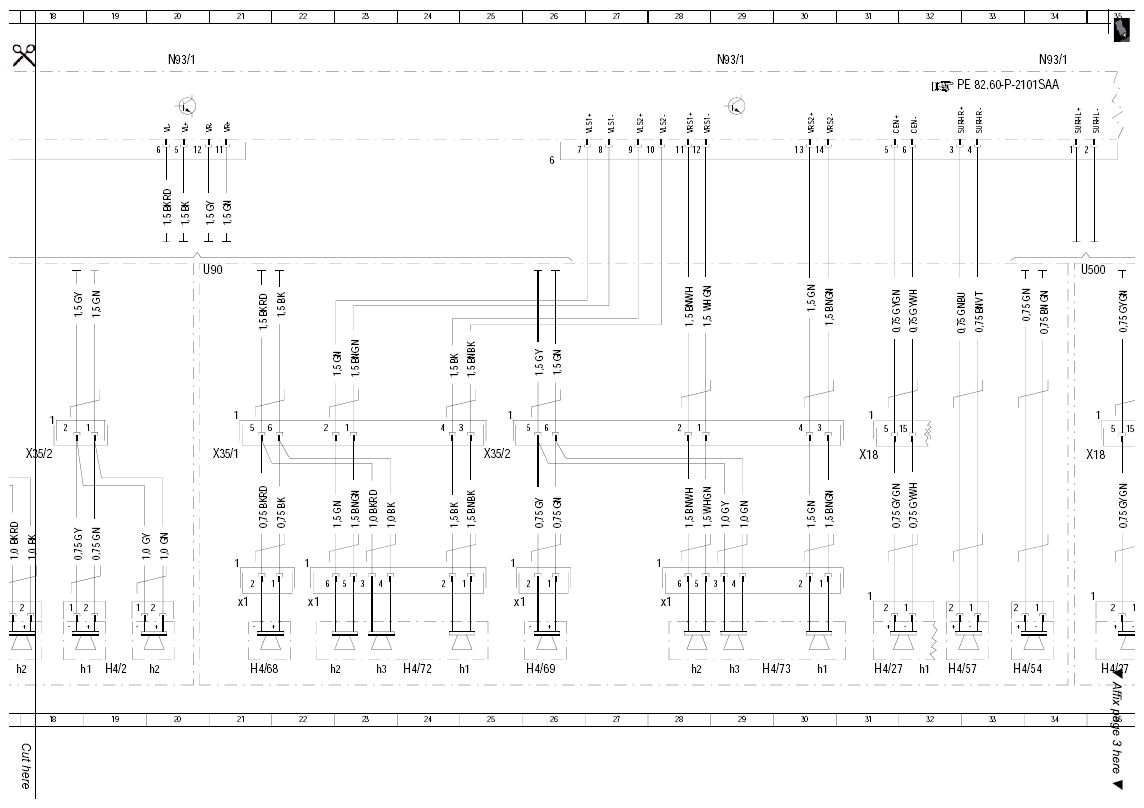

| A0 |
Explanation of color codes |
40 L |
| H4/1 |
Left front door speaker group |
17 L |
| H4/17 |
Bass module loudspeaker |
14 L |
| H4/1h1 |
Left front door tweeter |
16 L |
| H4/1h2 |
Left front door woofer |
17 L |
| H4/2 |
Right front door speaker group |
19 L |
| H4/27 |
Center cockpit speaker (Centerfill) |
31 L |
| H4/27 |
Center cockpit speaker (Centerfill) |
35 L |
| H4/2h1 |
Right front door tweeter |
18 L |
| H4/2h2 |
Right front door woofer |
19 L |
| H4/3 |
Left front door speaker group |
3 L |
| H4/3 |
Left front door speaker group |
9 L |
| H4/3h1 |
Left rear door tweeter |
2 L |
| H4/3h1 |
Left rear door tweeter |
10 L |
| H4/3h2 |
Left rear door woofer |
3 L |
| H4/3h2 |
Left rear door woofer |
9 L |
| H4/4 |
Right rear door speaker group |
6 L |
| H4/4 |
Right rear door speaker group |
12 L |
| H4/4h1 |
Right rear door tweeter |
5 L |
| H4/4h1 |
Right rear door tweeter |
12 L |
| H4/4h2 |
Right rear door woofer |
6 L |
| H4/4h2 |
Right rear door woofer |
11 L |
| H4/54 |
Left rear surround loudspeaker |
33 L |
| H4/57 |
Right rear surround loudspeaker |
32 L |
| H4/68 |
Left front door Sound tweeter |
21 L |
| H4/68x1 |
Left front door Sound tweeter connector |
21 K |
| H4/69 |
Right front door Sound tweeter |
26 L |
| H4/69x1 |
Right front door Sound tweeter connector |
25 K |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
24 L |
| H4/72h1 |
Left front door Sound woofer |
24 L |
| H4/72h2 |
Left front door Sound woofer |
22 L |
| H4/72h3 |
Left front door Sound midrange speaker |
23 L |
| H4/72x1 |
Left front door Sound woofer and midrange speaker group connector |
22 K |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
29 L |
| H4/73h1 |
Right front door Sound woofer |
30 L |
| H4/73h2 |
Right front door Sound woofer |
28 L |
| H4/73h3 |
Right front door Sound midrange speaker |
28 L |
| H4/73x1 |
Right front door Sound woofer and midrange speaker group connector |
27 K |
| N93/1 |
Audio tuner control unit |
7 A |
| N93/1 |
Audio tuner control unit |
12 A |
| N93/1 |
Audio tuner control unit |
20 A |
| N93/1 |
Audio tuner control unit |
29 A |
| N93/1 |
Audio tuner control unit |
34 A |
| U500 |
Not valid for Sound System |
15 E |
| U500 |
Not valid for Sound System |
34 E |
| U90 |
Valid for Sound System |
20 E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
31 H |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
34 H |
| X35/1 |
Left front door and FFS [RBA] connector |
15 H |
| X35/1 |
Left front door and FFS [RBA] connector |
21 H |
| X35/2 |
Right front door and FFS [RBA] connector |
18 H |
| X35/2 |
Right front door and FFS [RBA] connector |
25 H |
| X35/3 |
Left rear door separation point |
1 E |
| X35/3 |
Left rear door separation point |
8 E |
| X35/4 |
Right rear door separation point |
4 E |
| X35/4 |
Right rear door separation point |
10 E |
| Z28/1 |
Left rear speaker group connector sleeve (+ signal) |
2 H |
| Z28/2 |
Left rear speaker group connector sleeve (- signal) |
1 H |
| Z28/3 |
Right rear speaker group connector sleeve (+ signal) |
5 H |
| Z28/4 |
Right rear speaker group connector sleeve (- signal) |
4 H |
