| A0 |
Explanation of color codes |
64 L |

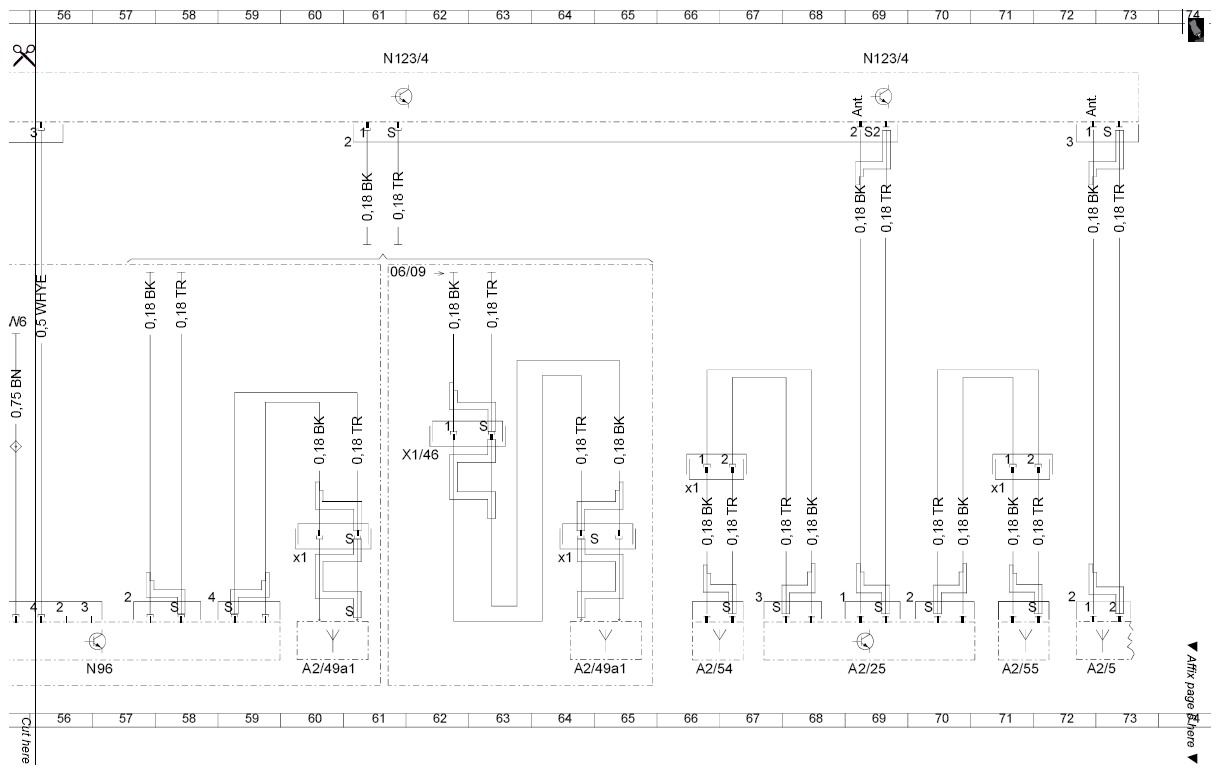

| A2/25 |
Emergency call system antenna splitter |
53 L |
| A2/49a1 |
CTEL antenna |
48 L |
| A2/5 |
Antenna splitter |
56 L |
| A2/54 |
Emergency call system left backup antenna |
50 L |
| A2/54x1 |
Left backup antenna connector, emergency call system |
50 H |
| A2/55 |
Emergency call system right backup antenna |
55 L |
| A2/55x1 |
Right backup antenna connector, emergency call system |
55 H |

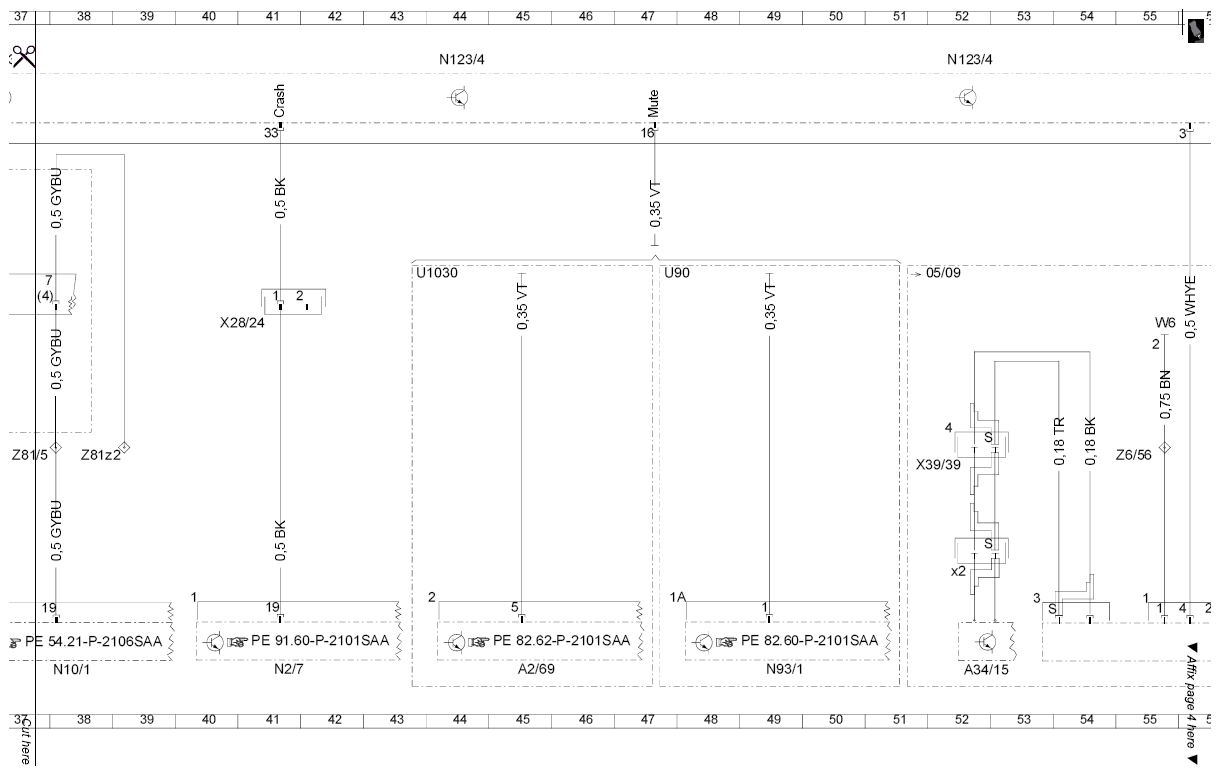

| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
41 L |
| A34/15x2 |
Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
40 J |
| F1/6 |
Right instrument panel fuse box |
6.L |
| F1/6f73 |
Fuse 73 |
6 K |
| H4/27 |
Center cockpit speaker (Centerfill) |
24 L |
| N10/1 |
Front SAM control module with fuse and relay module |
27 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
9 L |
| N10/2f138 |
Fuse 138 |
8 L |

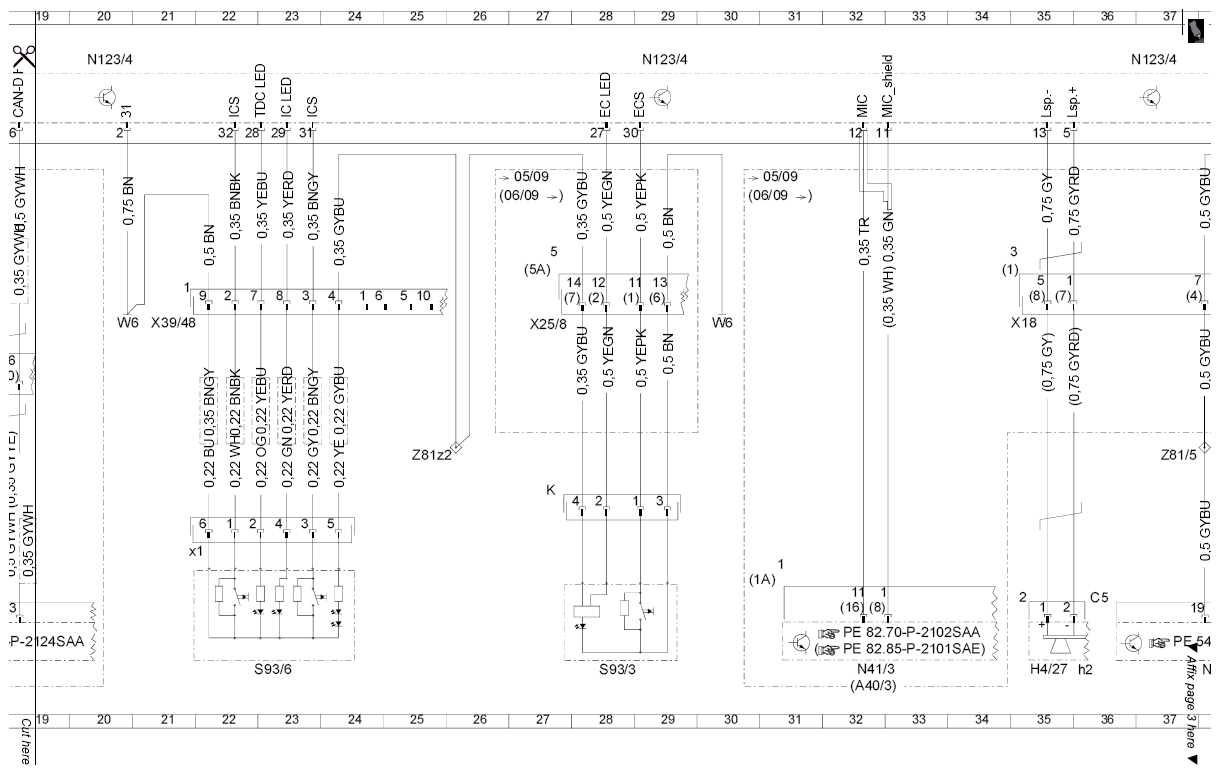

| N123/4 |
Emergency call system control unit |
4 A |
| N123/4 |
Emergency call system control unit |
12 A |
| N123/4 |
Emergency call system control unit |
20 A |
| N123/4 |
Emergency call system control unit |
28 A |
| N123/4 |
Emergency call system control unit |
35 A |
| N123/4 |
Emergency call system control unit |
44 A |
| N123/4 |
Emergency call system control unit |
52 A |
| N2/7 |
Restraint systems control module |
31 L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
34 L |

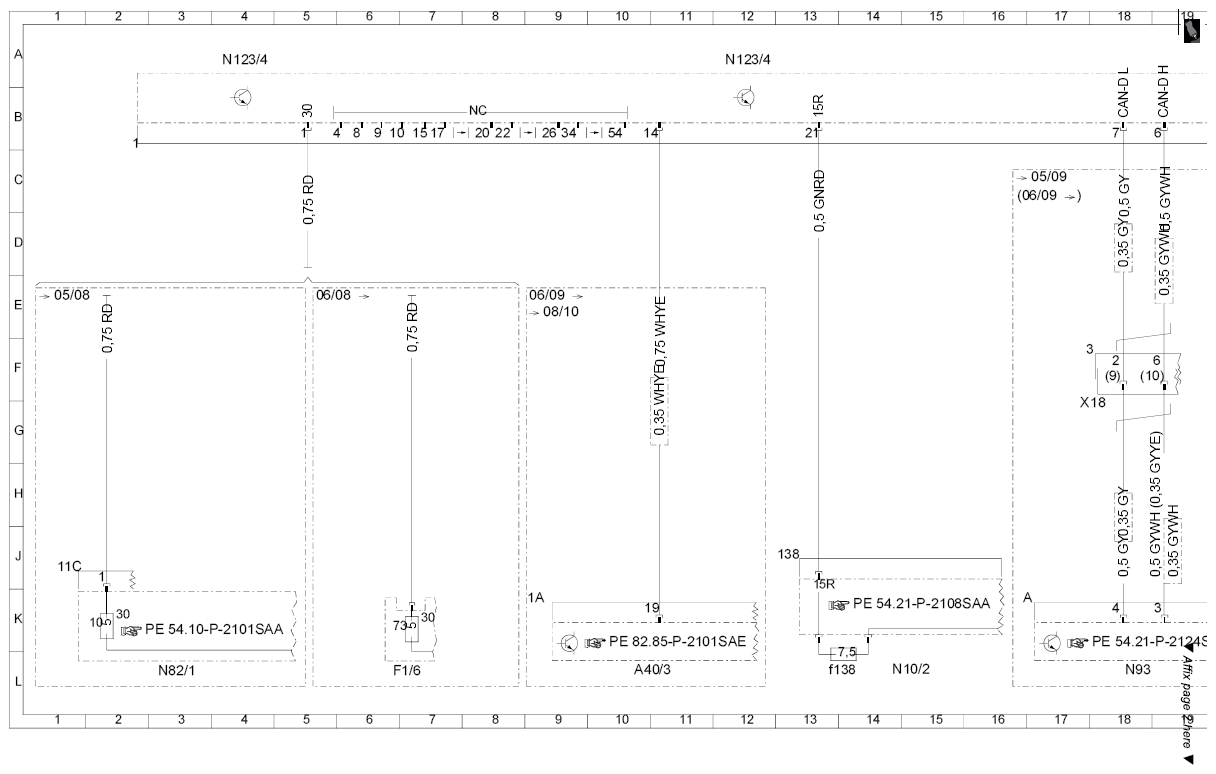

| N82/1 |
Vehicle power supply control unit |
3 L |
| N82/1f10 |
Fuse 10 |
1 K |
| N93 |
Central gateway control module |
14 L |
| N93/1 |
Audio tuner control unit |
38 L |
| N96 |
Frequency switchover control module |
45 L |
| S93/3 |
SOS pushbutton switch |
22 L |
| S93/6 |
MB-lnfo and telediagnosis button group |
17 L |
| S93/6x1 |
MB-lnfo and telediagnosis button group connector |
16 J |
| W6 |
Ground (left wheelhousing in trunk) |
15 E |
| W6 |
Ground (left wheelhousing in trunk) |
24 E |
| W6 |
Ground (left wheelhousing in trunk) |
44 E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
13 E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
24 E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
21 E |
| X28/24 |
Interior/telematics connector |
30 E |
| X39/39 |
Handy connector |
40 H |
| X39/48 |
Breakdown assistance/info button connector |
16 E |
| Z6/56 |
Circuit 31 connector sleeve |
43 H |
| Z81/5 |
Circuit 58d COC connector sleeve |
26 H |
| Z81z2 |
Circuit 58d connector sleeve |
20 H |
| Z81z2 |
Circuit 58d connector sleeve |
28 H |
