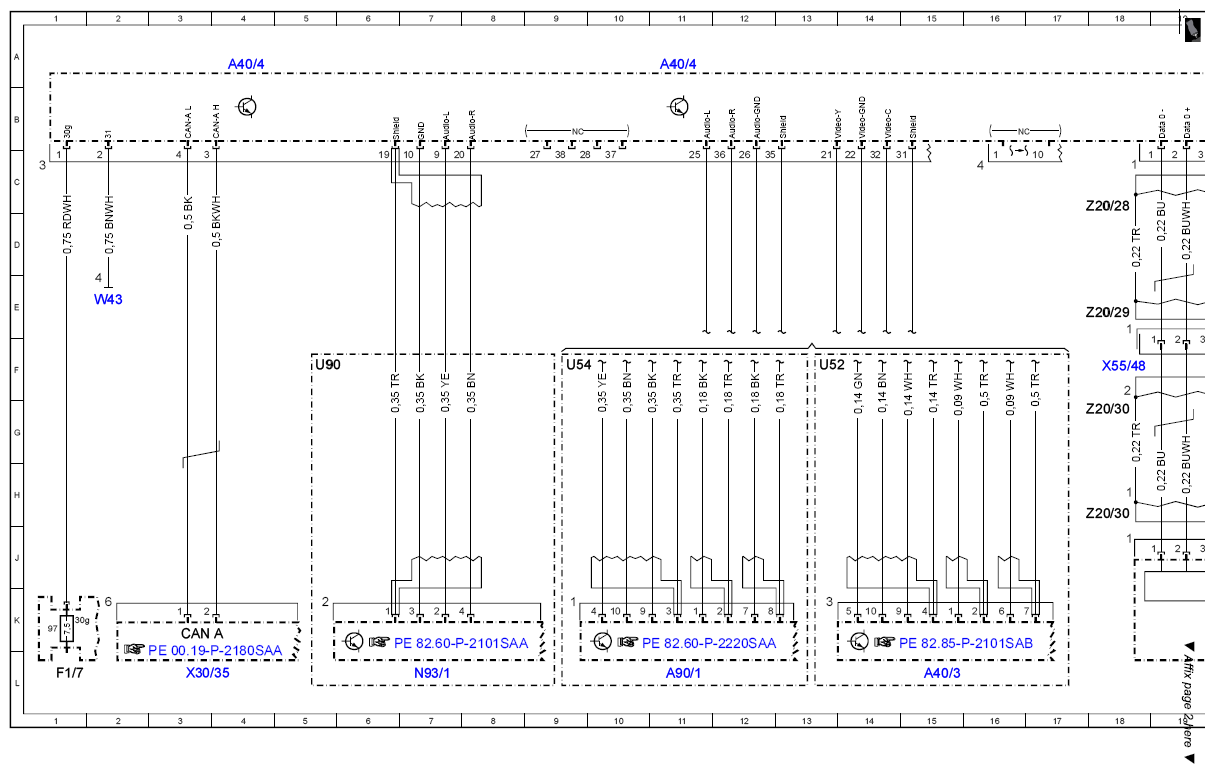

| A0 |
Color code key |
48L |
| A40/3 |
COMAND control unit |
15L |
| A40/4 |
DVD player |
4A |
| A40/4 |
DVD player |
11A |
| A40/4 |
DVD player |
20A |
| A40/4 |
DVD player |
28A |
| A40/4 |
DVD player |
36A |
| A40/4 |
DVD player |
44A |

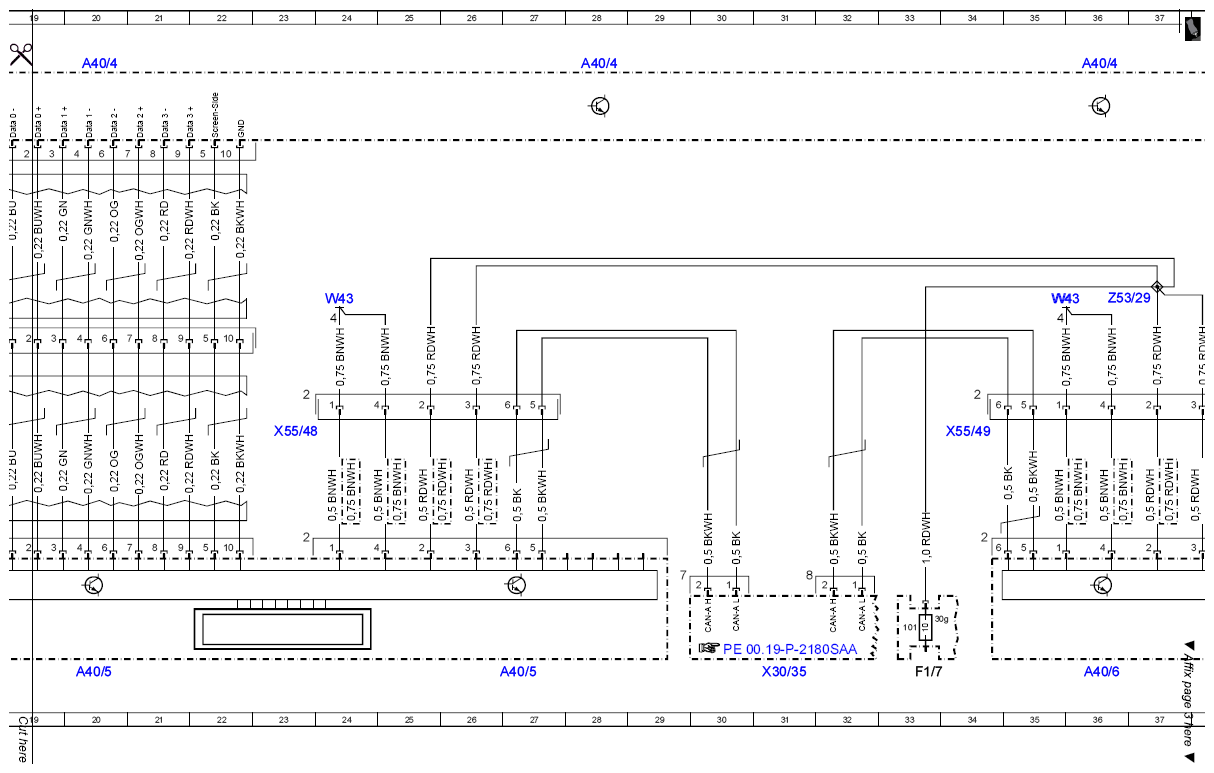

| A40/5 |
Left rear display |
20L |
| A40/5 |
Left rear display |
27L |
| A40/6 |
Right rear display |
36L |
| A40/6 |
Right rear display |
43L |
| A90/1 |
TV combination tuner (analog/digital) |
11L |
| CAN A |
Telematics CAN |
3K |
| F1/7 |
Left instrument panel fuse box |
1L |
| F1/7 |
Left instrument panel fuse box |
33L |
| F1/7f101 |
Fuse 101 |
33K |
| F1/7f97 |
Fuse 97 |
1K |
| N93/1 |
Audio tuner control unit |
7L |
| U52 |
Valid for {{Japan}} |
13F |
| U54 |
Valid for all except {{Japan}} |
9F |
| U90 |
Valid for Sound System |
5F |
| W43 |
Ground (reference, image transmission systems) |
2E |
| W43 |
Ground (reference, image transmission systems) |
24E |
| W43 |
Ground (reference, image transmission systems) |
35E |
| X30/35 |
Telematics CAN voltage distributor connector |
3L |
| X30/35 |
Telematics CAN voltage distributor connector |
31L |

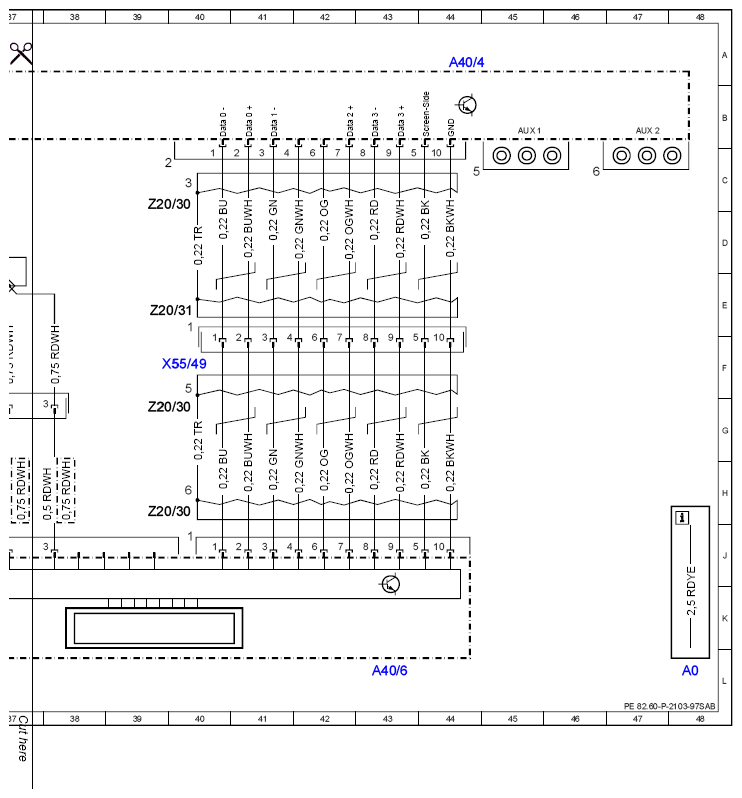

| X55/48 |
Left rear display seat/FFS [RBA] separation point |
23G |
| X55/48 |
Left rear display seat/FFS [RBA] separation point |
18F |
| X55/49 |
Right rear display seat/FFS [RBA] separation point |
34G |
| X55/49 |
Right rear display seat/FFS [RBA] separation point |
40F |
| Z20/28 |
Cable end insulation not stripped, placed inside insulated tubing |
18C |
| Z20/29 |
Screening end insulated from outer shield |
18E |
| Z20/30 |
Tracer wire connector sleeve |
18H |
| Z20/30 |
Tracer wire connector sleeve |
18G |
| Z20/30 |
Tracer wire connector sleeve |
40H |
| Z20/30 |
Tracer wire connector sleeve |
40G |
| Z20/30 |
Tracer wire connector sleeve |
40C |
| Z20/31 |
Tracer wire connector sleeve |
40E |
| Z53/29 |
Rear entertainment circuit 30 connector sleeve |
37E |
