| A0 |
Color code key |
48A |

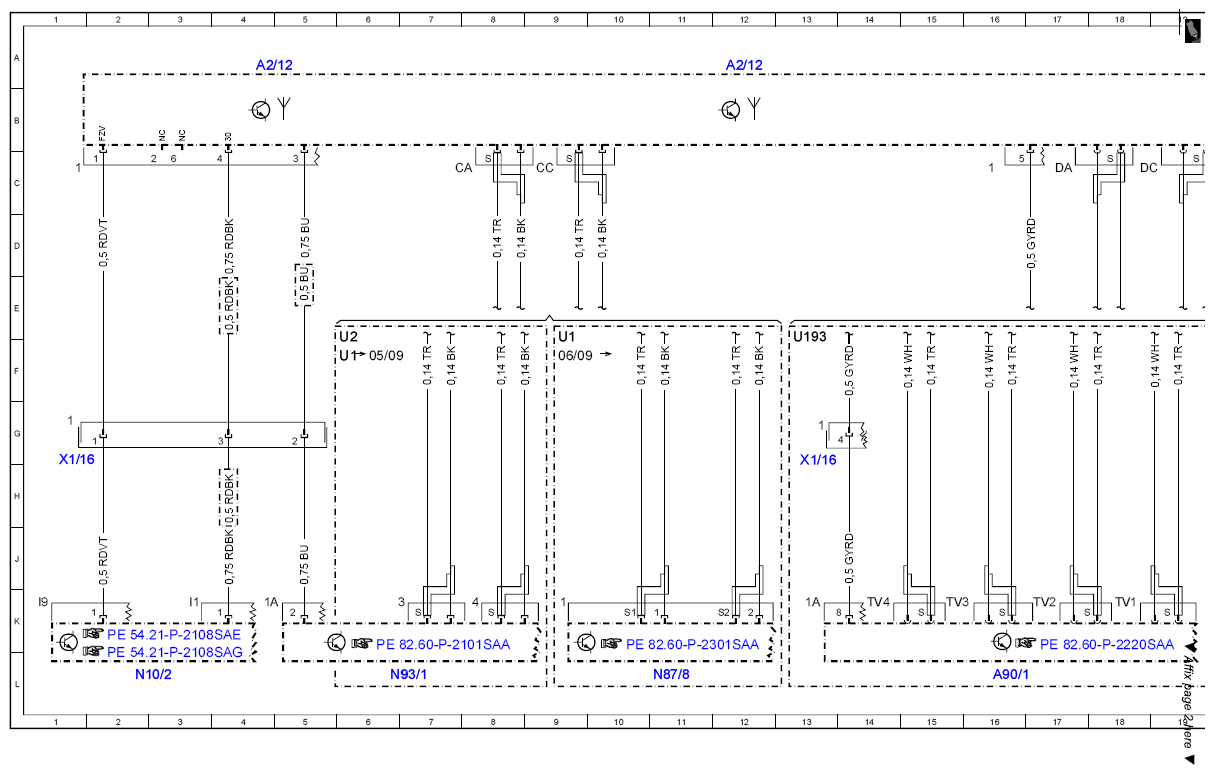

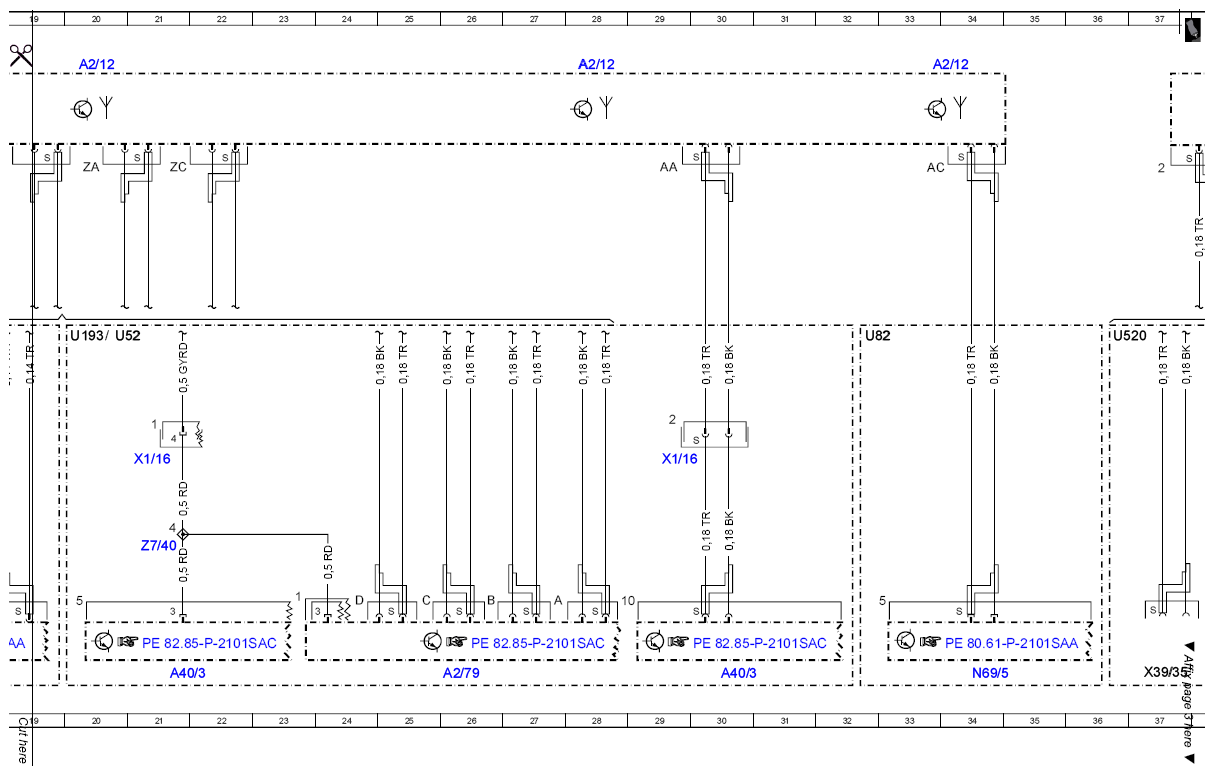

| A2/12 |
Rear window antenna amplifier module |
4A |
| A2/12 |
Rear window antenna amplifier module |
12A |
| A2/12 |
Rear window antenna amplifier module |
20A |
| A2/12 |
Rear window antenna amplifier module |
28A |
| A2/12 |
Rear window antenna amplifier module |
34A |
| A2/49a2 |
GPS antenna |
47L |

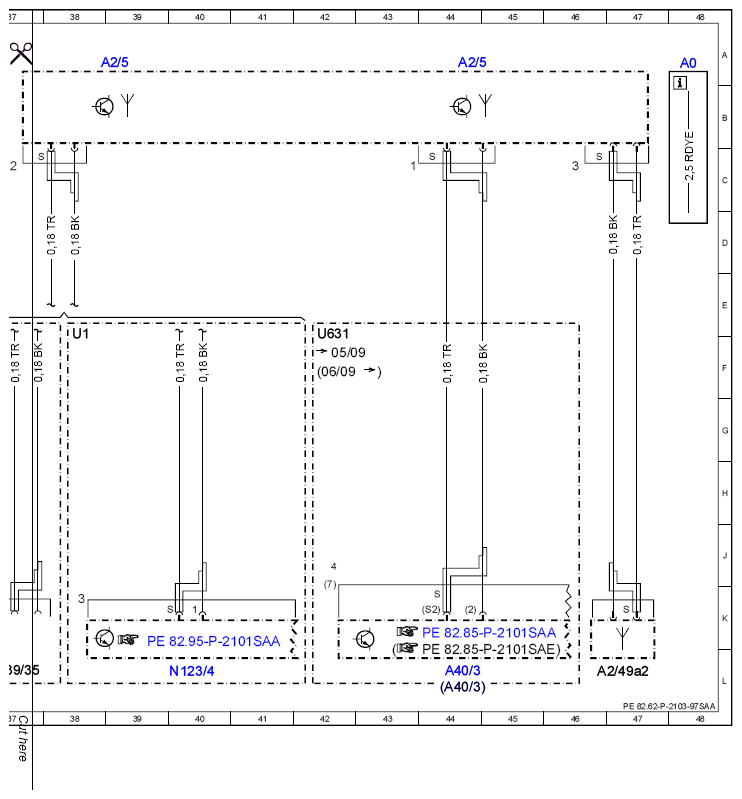

| A2/5 |
Antenna splitter |
39A |
| A2/5 |
Antenna splitter |
44A |
| A2/79 |
TV antenna selector |
26L |
| A40/3 |
COMAND control unit |
21L |
| A40/3 |
COMAND control unit |
30L |
| A40/3 |
COMAND control unit |
44L |
| A40/3 |
COMAND control unit |
44L |
| A90/1 |
TV combination tuner (analog/digital) |
16L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2L |
| N123/4 |
Emergency call system control unit |
40L |
| N69/5 |
KEYLESS-GO control unit |
34L |
| N87/8 |
High-definition tuner control unit |
11L |
| N93/1 |
Audio tuner control unit |
6L |
| U1 |
Valid for {{USA}} |
9F |
| U1 |
Valid for {{USA}} |
38F |
| U1 |
Valid for {{USA}} |
6F |
| U193 |
Valid for TV and Video |
13F |
| U193 |
Valid for TV and Video |
20F |
| U2 |
Valid for all except{{USA}} |
6F |
| U52 |
Valid for {{Japan}} |
20F |
| U520 |
Valid for taxi |
36F |
| U631 |
Valid for version with COMAND |
42F |
| U82 |
Valid for KEYLESS GO |
32F |
| X1/16 |
Roof antenna connector |
1G |
| X1/16 |
Roof antenna connector |
13H |
| X1/16 |
Roof antenna connector |
21H |
| X1/16 |
Roof antenna connector |
29H |
| X39/35 |
GPS antenna connector |
37L |
| Z7/40 |
Tml. 30 connector sleeve |
21J |
