| Code: |
Designation: |
Position: |

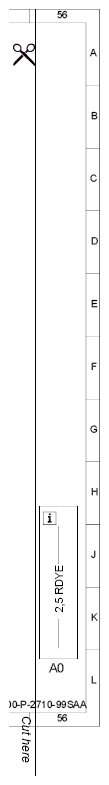

| A0 |
Explanation of color codes |
40 L |

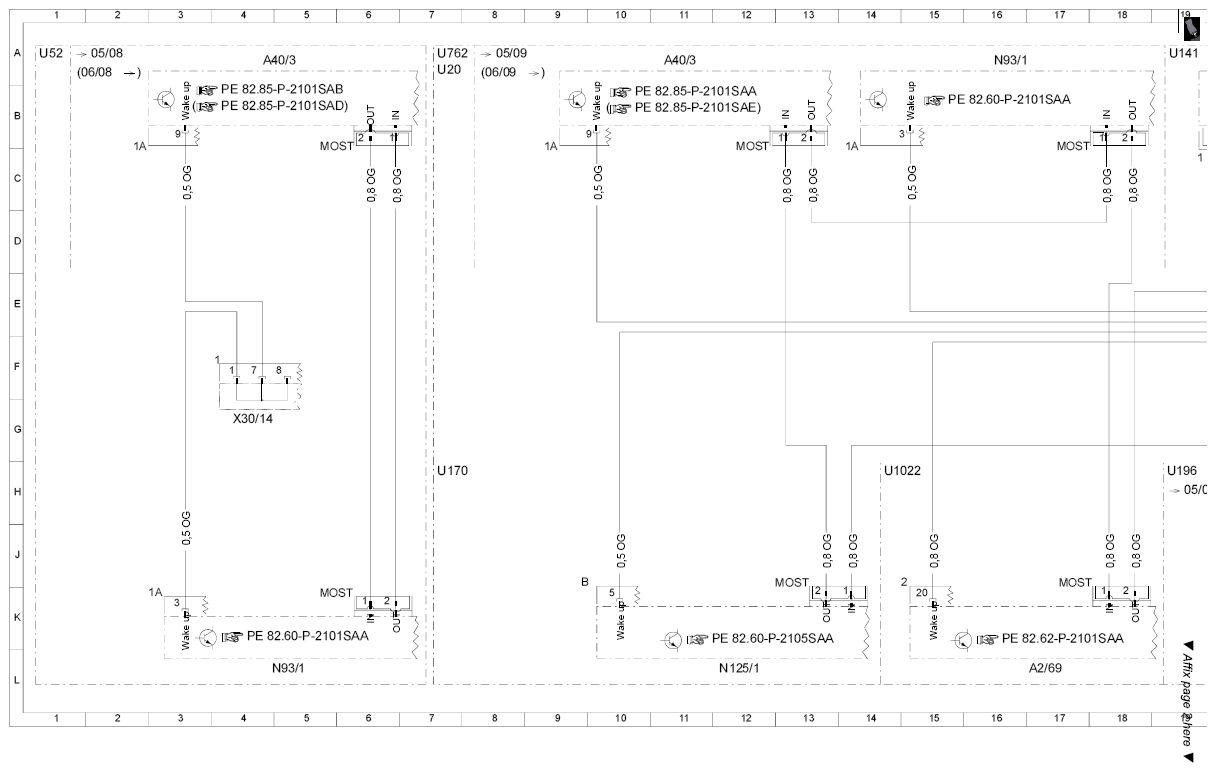

| A40/3 |
COMAND control unit |
3 A |
| A40/3 |
COMAND control unit |
8 L |
| A40/3 |
COMAND control unit |
25 L |

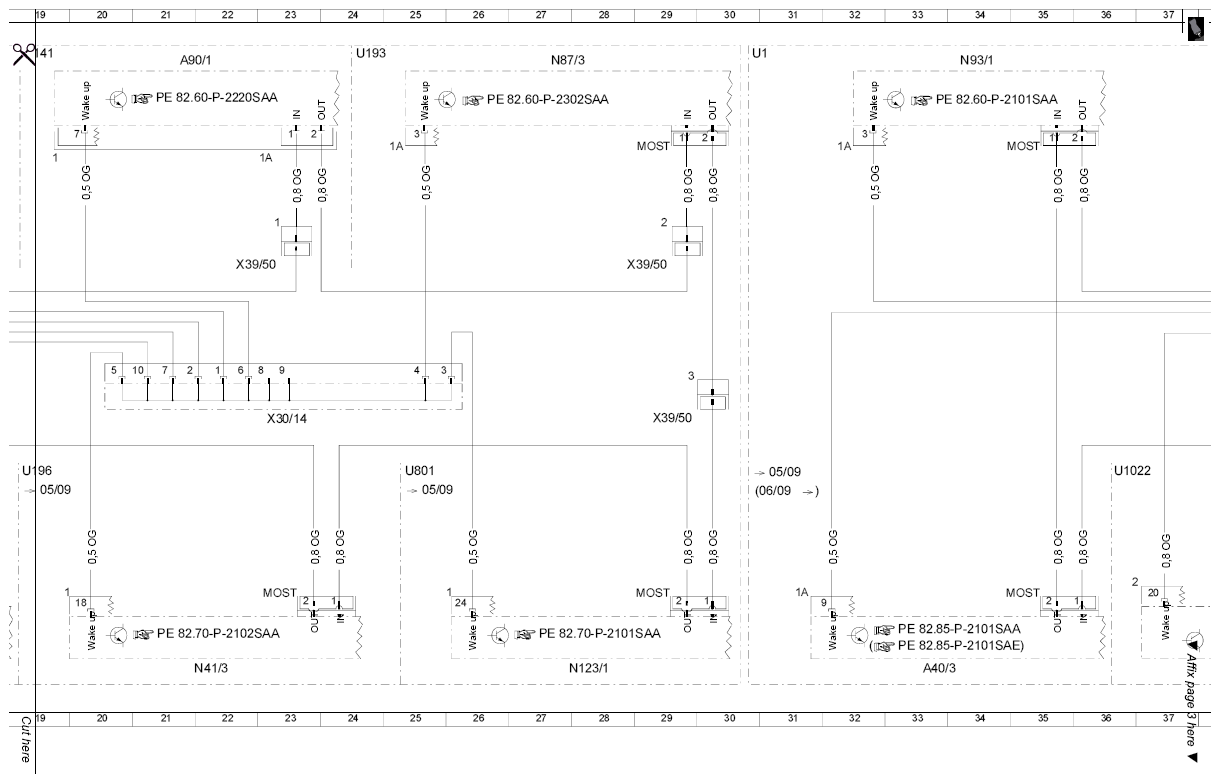

| A90/1 |
TV combination tuner (analog/digital) |
19 A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control module |
20 L |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control module |
34 L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
13 L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
30 L |

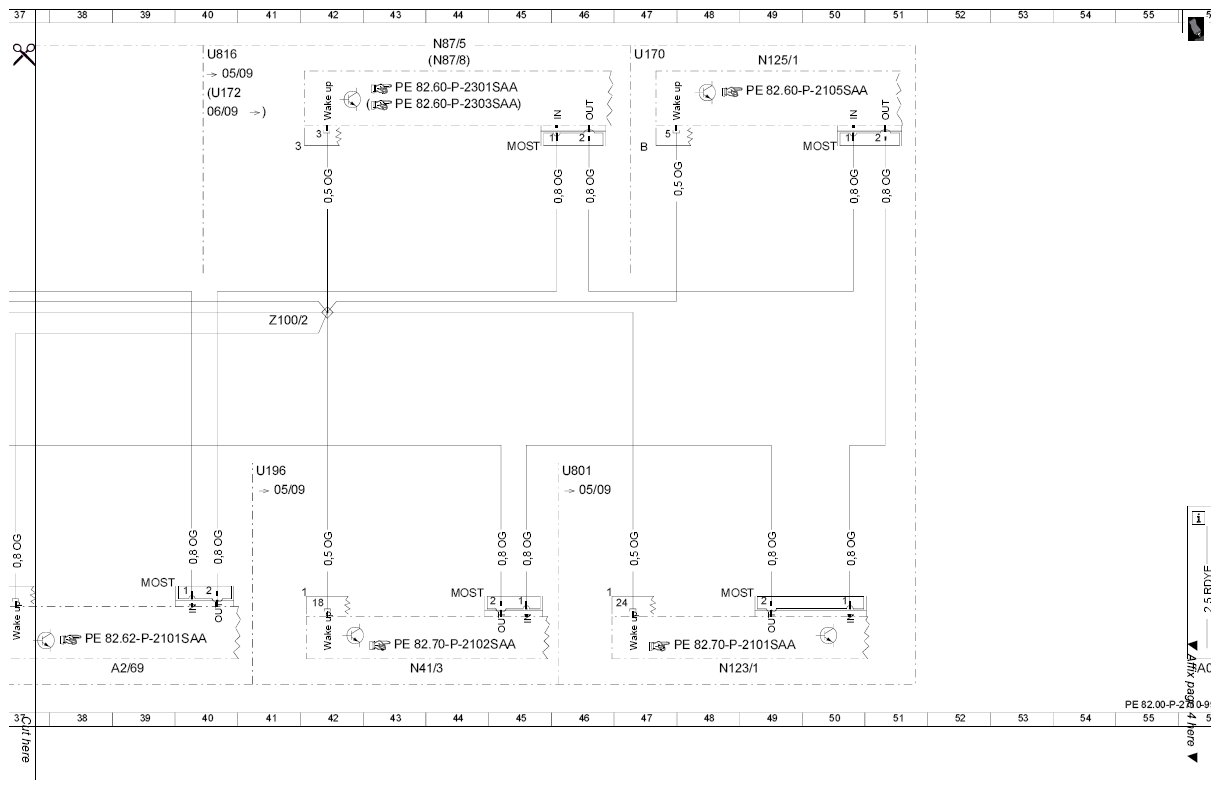

| N87/3 |
Digital Audio Broadcasting control unit |
14 A |
| N87/5 |
SDAR control unit |
30 A |
| N93/1 |
Audio tuner control unit |
3 L |
| N93/1 |
Audio tuner control unit |
8 A |
| N93/1 |
Audio tuner control unit |
25 A |
| U1 |
Valid for {{USA}} |
23 A |
| U141 |
Valid for Digital Audio Broadcasting |
11 A |
| U193 |
Valid for TV and Video |
16 A |
| U196 |
Valid for VCS [SBS] |
11 H |
| U196 |
Valid for VCS [SBS] |
28 H |
| U20 |
Valid for all except {{USA}}{{Japan}} |
6 A |
| U52 |
Valid for {{Japan}} |
1 A |
| U762 |
Valid for MOST bus (maximum equipment) |
6 A |
| U801 |
Valid for UPCI [UHI] (Universal Portable CTEL Interface) |
17 H |
| U801 |
Valid for UPCI [UHI] (Universal Portable CTEL Interface) |
32 H |
| U816 |
Valid for satellite radio (SDAR) |
28 A |
| X30/14 |
Wake-up signal/diagnosis distributor connector |
15 G |
| X39/50 |
Fiber optical cable connector (MOST) |
14 E |
| X39/50 |
Fiber optical cable connector (MOST) |
21 E |
| X39/50 |
Fiber optical cable connector (MOST) |
21 G |
| Z100/2 |
Wake-up signal connector sleeve |
28 E |
