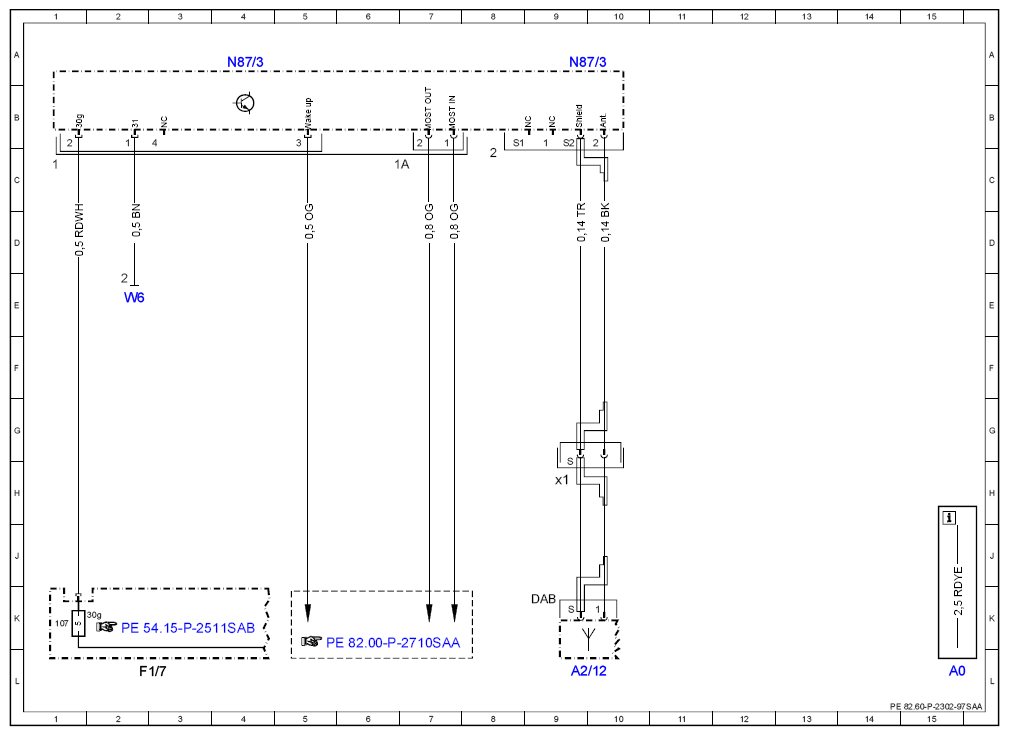

Wiring Schematic for Digital Audio Broadcasting control unit system (DAB) - PE82.60-P-2302-97SAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2/12 | Rear window antenna amplifier module | 9L |
| A2/12x1 | Rear window antenna amplifier module connector | 9H |
| F1/7 | Left instrument panel fuse box | 3L |
| F1/7f107 | Fuse 107 | 1K |
| N87/3 | Digital Audio Broadcasting control unit | 4A |
| N87/3 | Digital Audio Broadcasting control unit | 9A |
| W6 | Ground (left wheelhouse in luggage compartment) | 2E |
