Wiring Diagram for audio video controller control unit - PE82.60-P-2103-99SAB

MODEL 221.0 /1 up to 31.5.09 with CODE (864) Rear entertainment system as of Model Year 2009 /AEJ08 Control unit A40/4

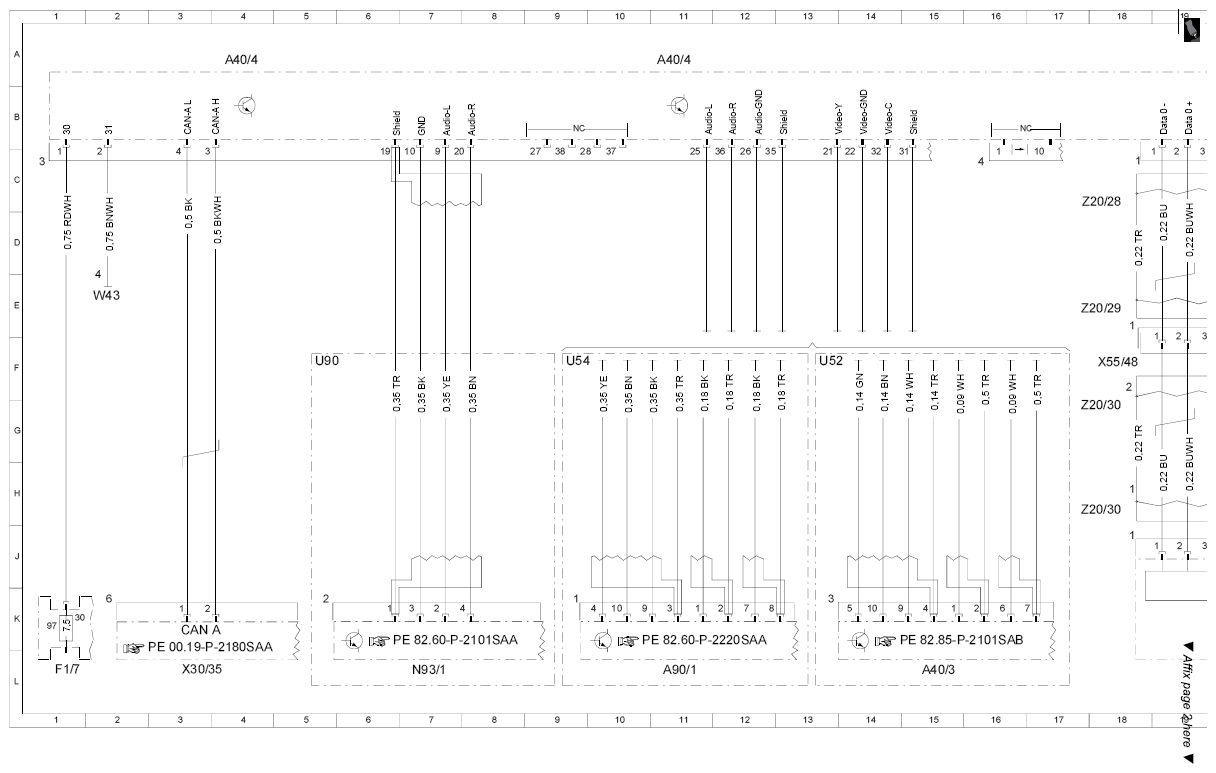

Fig 1: Audio Video Controller Control Unit Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

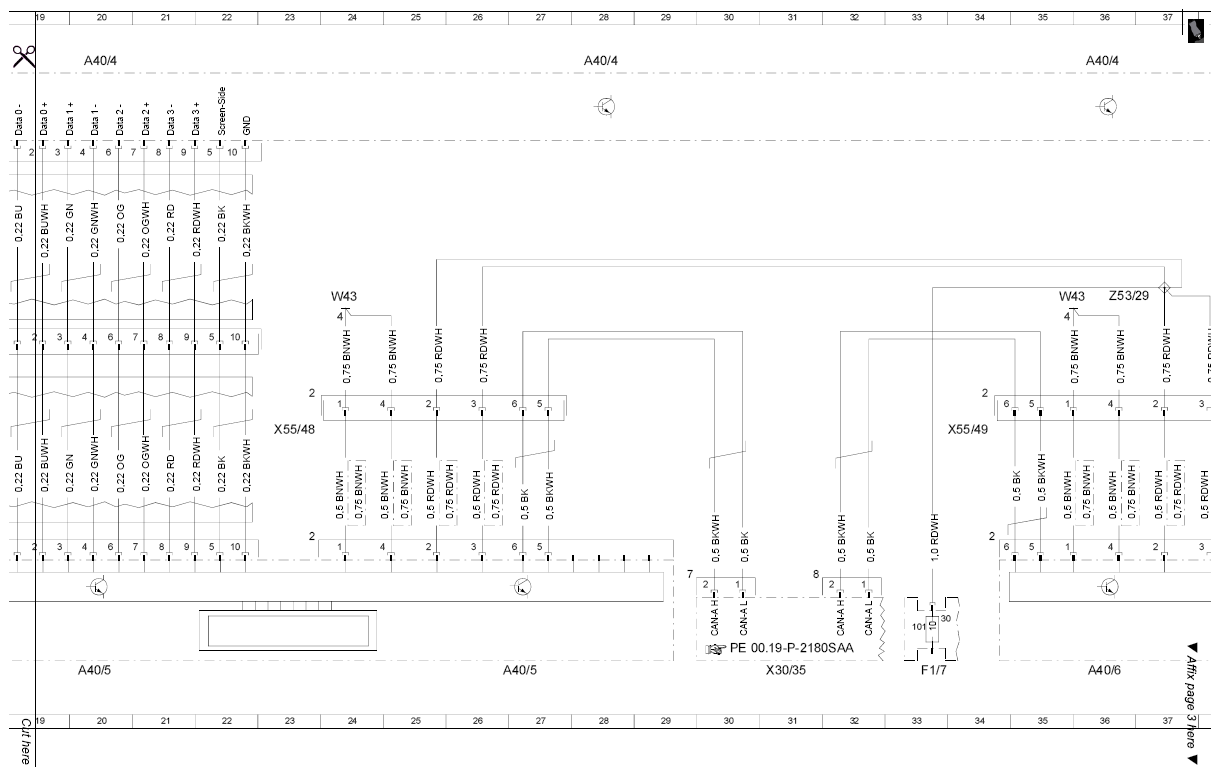

Fig 2: Audio Video Controller Control Unit Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

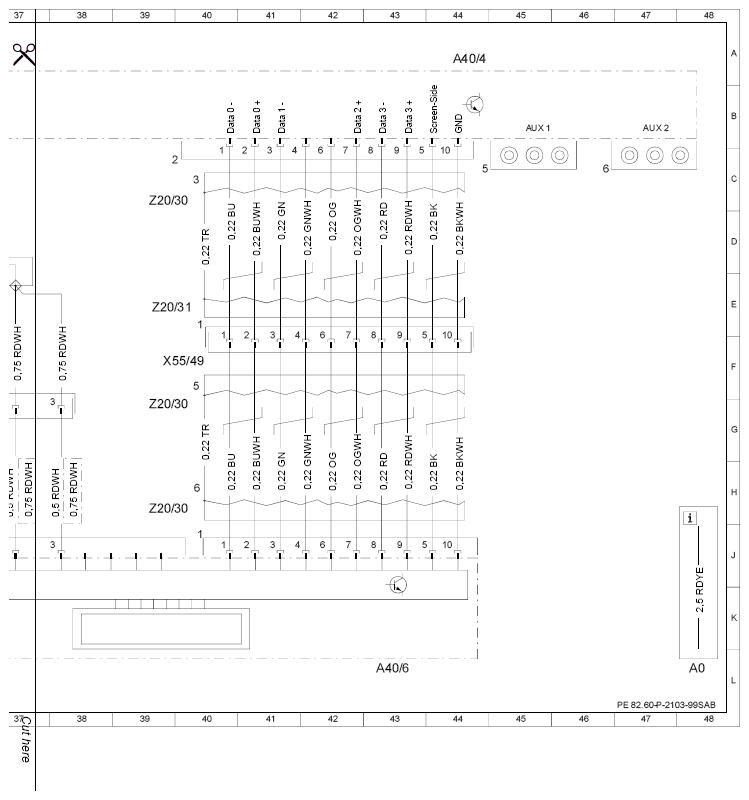

Fig 3: Audio Video Controller Control Unit Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
