Voice control system (VCS [SBS]) control unit wiring Schematic - PE82.70-P-2102-99SAA

Code:	Designation:	Position:
A0	Explanation of color codes	23 L
A67b1	Hands-free system microphone group	7L
A67b1	Hands-free system microphone group	11 L
N10/2	Rear SAM control module with fuse and relay module	2L
N123/4	Emergency call system control unit	14L
N41/3	Voice control system (VCS [SBS]) control unit	4A
N41/3	Voice control system (VCS [SBS]) control unit	11 A
N41/3	Voice control system (VCS [SBS]) control unit	20 A
W6	Ground (left wheelhousing in trunk)	2E
X25/8	Overhead control panel and FFS [RBA] connector	5E
X25/8	Overhead control panel and FFS [RBA] connector	10E

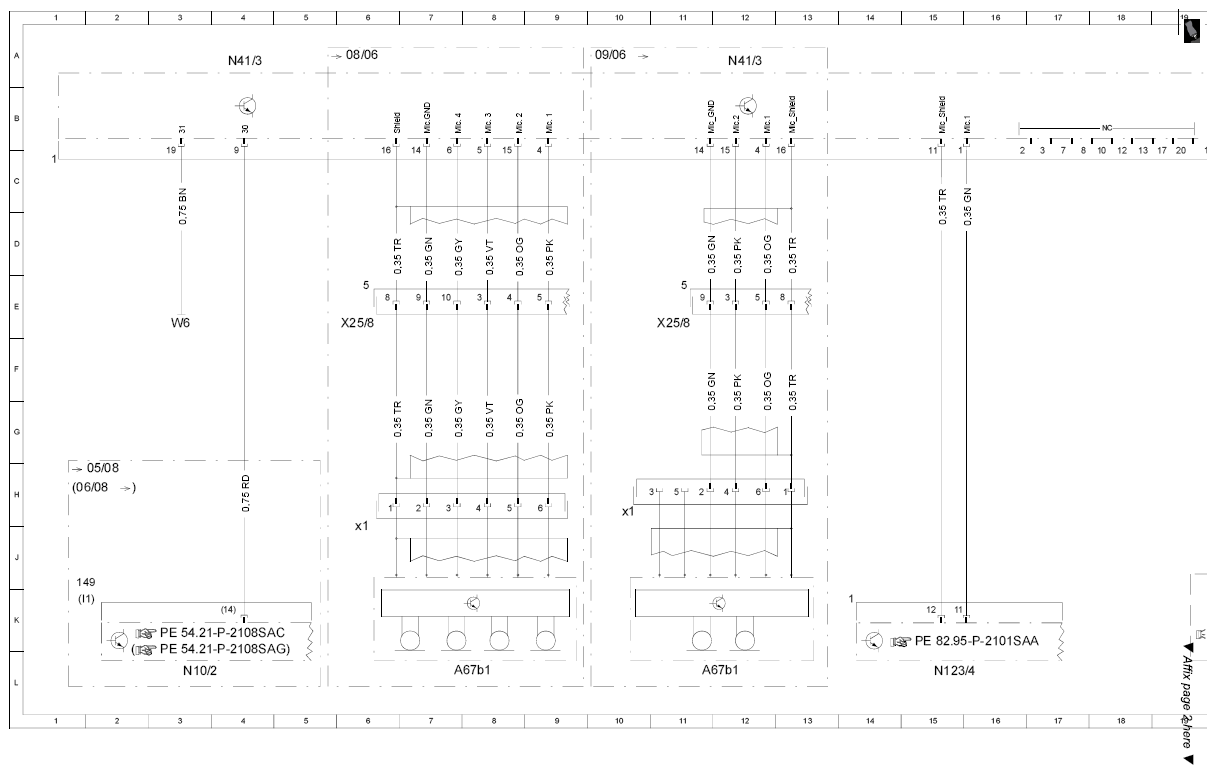

Fig 1: Voice Control System (VCS [SBS]) Control Unit Wiring Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Voice Control System (VCS [SBS]) Control Unit Wiring Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
