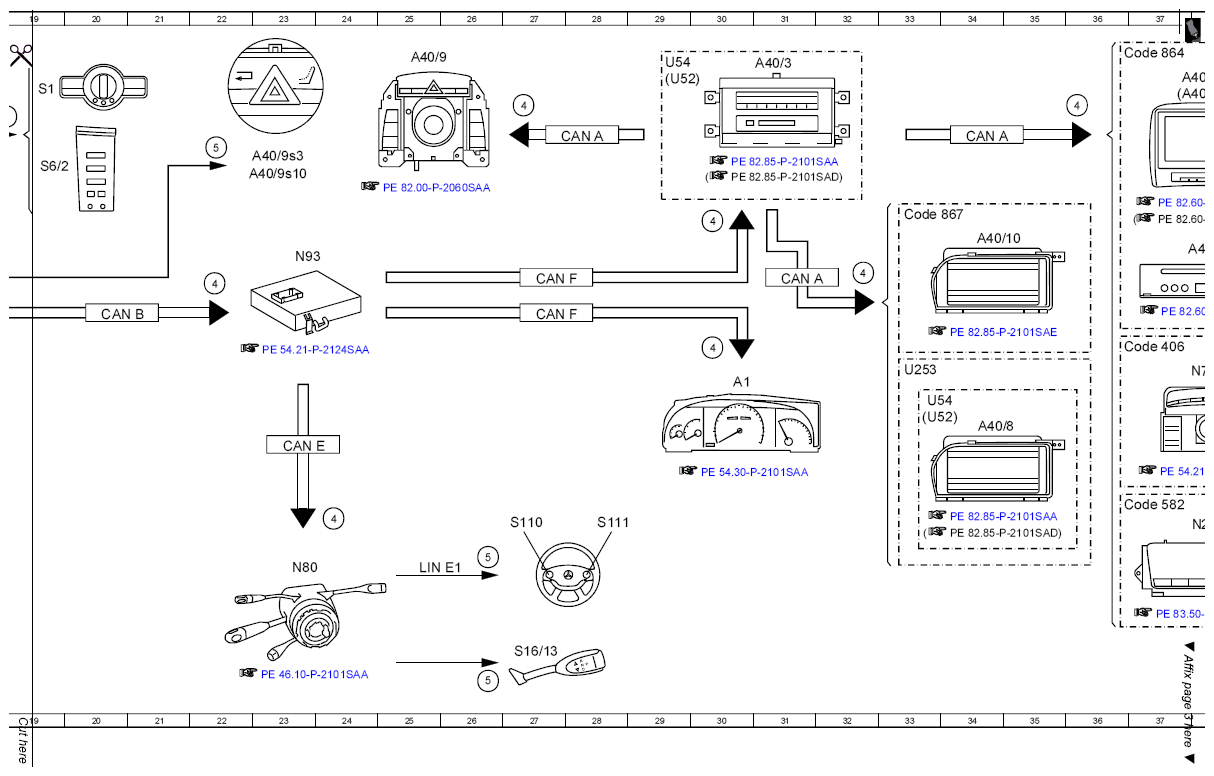

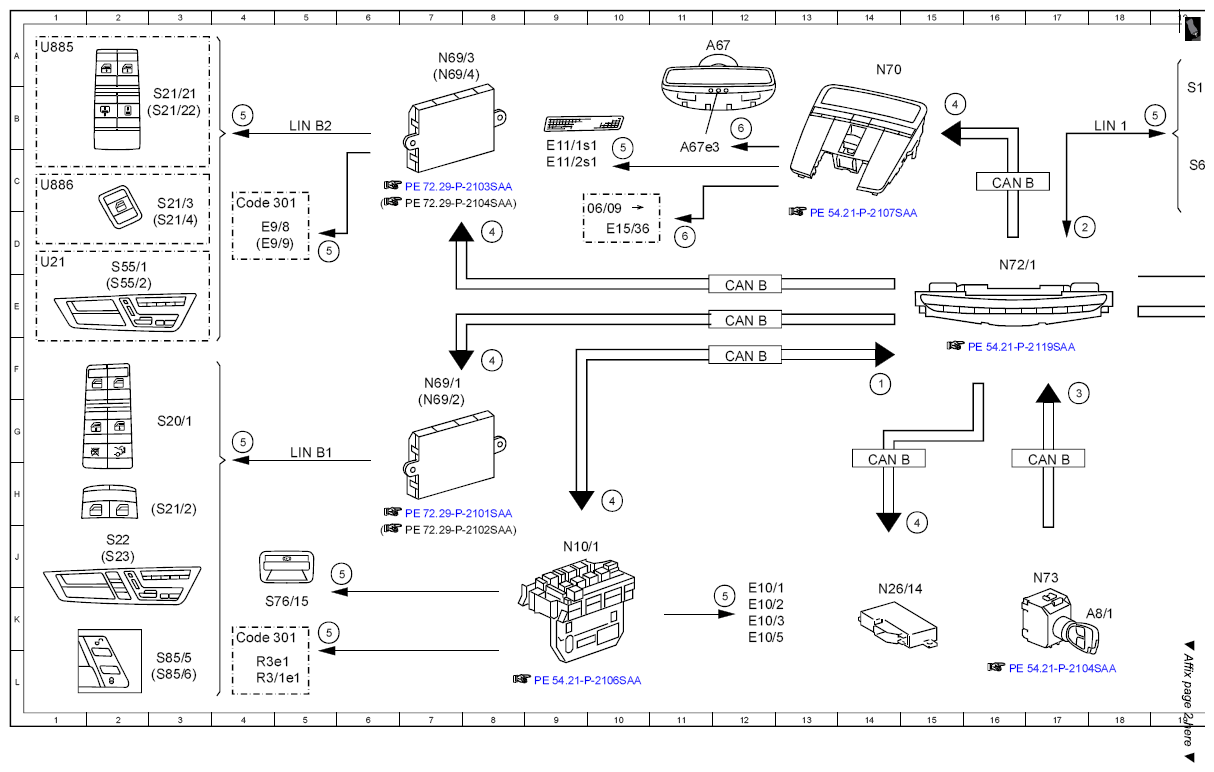

| 1 |
Circuit 58, status |
14F |
| 2 |
Switch and controls illumination brightness control, status |
17D |
| 3 |
Circuit 15, status |
17F |
| 4 |
Circuit 58d, status |
10H |
| 4 |
Circuit 58d, status |
8F |
| 4 |
Circuit 58d, status |
8D |
| 4 |
Circuit 58d, status |
15B |
| 4 |
Circuit 58d, status |
27B |
| 4 |
Circuit 58d, status |
22E |
| 4 |
Circuit 58d, status |
24H |
| 4 |
Circuit 58d, status |
30D |
| 4 |
Circuit 58d, status |
30F |
| 4 |
Circuit 58d, status |
36B |
| 4 |
Circuit 58d, status |
32E |
| 4 |
Circuit 58d, status |
15J |
| 5 |
Button/symbol illumination, actuation |
4B |
| 5 |
Button/symbol illumination, actuation |
4G |
| 5 |
Button/symbol illumination, actuation |
5K |
| 5 |
Button/symbol illumination, actuation |
19B |
| 5 |
Button/symbol illumination, actuation |
22C |
| 5 |
Button/symbol illumination, actuation |
26J |
| 5 |
Button/symbol illumination, actuation |
6J |
| 5 |
Button/symbol illumination, actuation |
12K |
| 5 |
Button/symbol illumination, actuation |
10B |
| 5 |
Button/symbol illumination, actuation |
5D |
| 5 |
Button/symbol illumination, actuation |
26L |
| 6 |
Ambient lamp, actuation |
12B |
| 6 |
Ambient lamp, actuation |
11D |
| A1 |
Instrument cluster |
30F |
| A40/10 |
SPLITVIEW display |
34D |
| A40/3 |
COMAND control unit |
31A |
| A40/4 |
DVD player |
38D |
| A40/5 |
Left rear display |
38A |
| A40/6 |
Right rear display |
37B |
| A40/8 |
COMAND display |
34G |
| A40/9 |
Front central operating unit |
25A |
| A40/9s10 |
Freely programmable button |
23C |
| A40/9s3 |
Hazard warning system button |
23C |
| A67 |
Inside rearview mirror unit |
12A |
| A67e3 |
Ambient lamp |
11C |
| A8/1 |
Transmitter key |
18K |
| CAN A |
Telematics CAN |
27B |
| CAN A |
Telematics CAN |
34B |
| CAN A |
Telematics CAN |
31E |
| CAN B |
Interior CAN |
17G |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
12E |
| CAN B |
Interior CAN |
12E |
| CAN B |
Interior CAN |
16C |
| CAN B |
Interior CAN |
20E |
| CAN E |
Chassis CAN |
23G |
| CAN F |
Central CAN |
27E |
| Code 301 |
Ashtray package/smoker package |
4C |
| Code 301 |
Ashtray package/smoker package |
4K |
| Code 406 |
Multicontour seats in rear |
37F |
| Code 582 |
Rear air conditioning |
37H |
| Code 864 |
Rear entertainment system |
37A |
| Code 867 |
SPLITVIEW |
33D |
| E10/1 |
Center air outlet illumination |
12K |
| E10/2 |
Left air outlet illumination |
12K |
| E10/3 |
Right air outlet illumination |
12K |
| E10/5 |
Rear air outlet illumination |
12K |
| E11/1s1 |
Left rear dome lamp switch |
9C |
| E11/2s1 |
Right rear dome lamp switch |
9C |
| E15/36 |
Rear ambient lamp |
10D |
| E9/8 |
Left rear ashtray illumination |
4D |
| E9/9 |
Right rear ashtray illumination |
4D |
| LIN 1 |
Instrument panel LIN |
18B |
| LIN B1 |
Front door LIN |
5G |
| LIN B2 |
Rear door LIN |
5B |
| LIN E1 |
Steering LIN |
25J |
| N10/1 |
Front SAM control unit with fuse and relay module |
9J |
| N22/4 |
Rear AC control unit |
38J |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
14K |
| N69/1 |
Left front door control unit |
7F |
| N69/2 |
Right front door control unit |
7G |
| N69/3 |
Rear left door control unit |
7A |
| N69/4 |
Right rear door control unit |
7A |
| N70 |
Overhead control panel control unit |
14A |
| N72/1 |
Upper control panel control unit |
16D |
| N72/2 |
RCP [HBF] control unit |
38F |
| N73 |
EIS [EZS] control unit |
17J |
| N80 |
Steering column module |
23J |
| N93 |
Central gateway control unit |
23D |
| R3/1e1 |
Illumination |
4L |
| R3e1 |
Illumination |
4L |
| S1 |
Rotary light switch |
19B |
| S110 |
Left multifunction steering wheel button group |
27J |
| S111 |
Right multifunction steering wheel button group |
28J |
| S16/13 |
Gear selector switch DIRECT SELECT |
27L |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
3G |
| S21/2 |
Front passenger power window switch |
3H |
| S21/21 |
Left rear door power window/roller blind switch group |
3B |
| S21/22 |
Right rear door power window/roller blind switch group |
3B |
| S21/3 |
Left rear power window switch |
3C |
| S21/4 |
Right rear power window switch |
3D |
| S22 |
Left front seat operation switch group |
2J |
| S23 |
Right front seat operation switch group |
2J |
| S55/1 |
Left rear seat operation switch group |
2D |
| S55/2 |
Right rear seat operation switch group |
2E |
| S6/2 |
Cockpit switch group |
19C |
| S76/15 |
Electric parking brake switch |
5K |
| S85/5 |
Left interior CL [ZV] switch |
3L |
| S85/6 |
Right interior CL [ZV] switch |
3L |
| U21 |
Valid for heated seats |
1D |
| U253 |
Not valid for SPLITVIEW display |
33F |
| U52 |
Valid for Japan |
29A |
| U52 |
Valid for Japan |
33G |
| U54 |
Valid for all except Japan |
29A |
| U54 |
Valid for all except Japan |
33G |
| U885 |
Valid for rear side roller blind/roof roller blind/rear roller blind |
1A |
| U886 |
Valid for rear individual power window switches |
1C |
