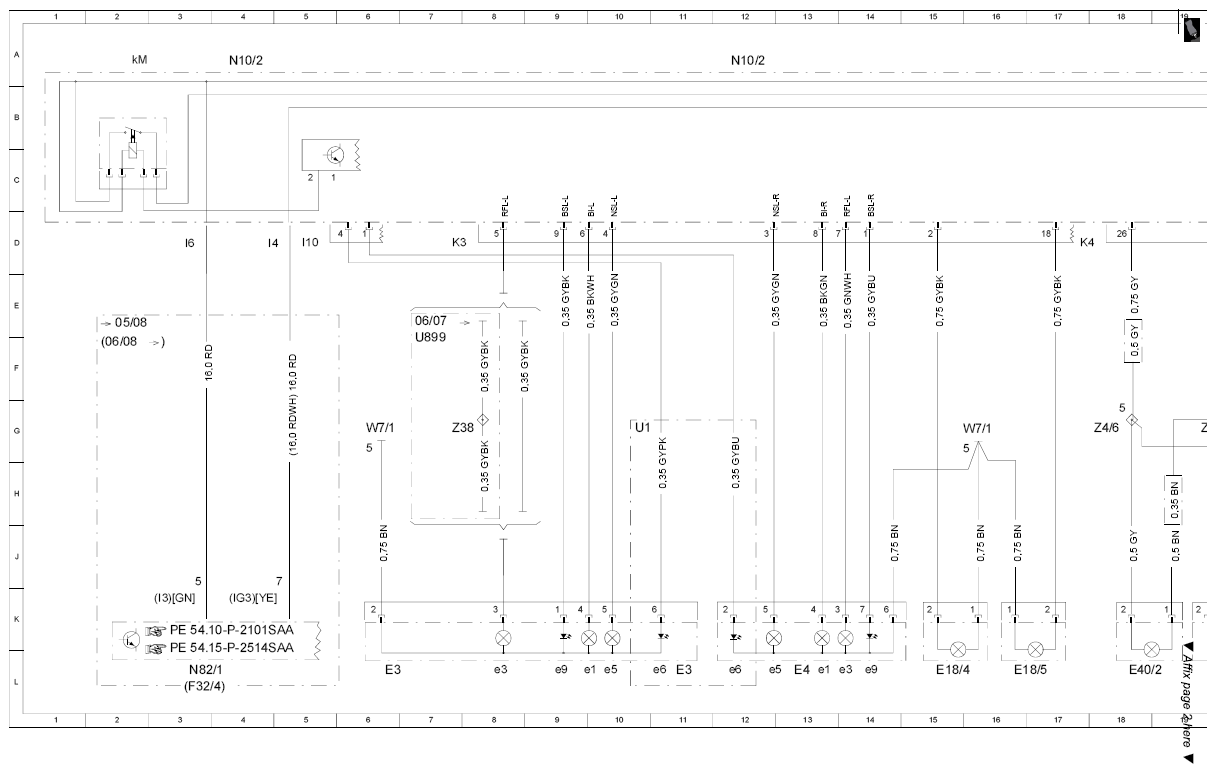

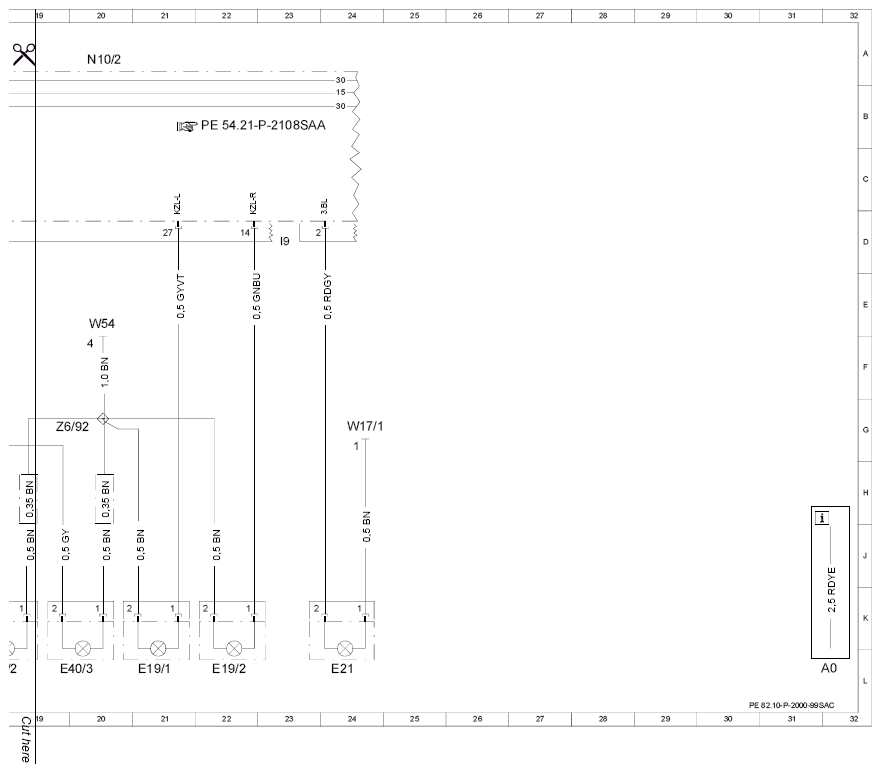

| A0 |
Explanation of color codes |
31 L |
| E18/4 |
Right trunk lamp |
15 L |
| E18/5 |
Left trunk lamp |
16 L |
| E19/1 |
Left license plate lamp |
20 L |
| E19/2 |
Right license plate lamp |
21 L |
| E21 |
Center high-mounted stop lamp |
23 L |
| E3 |
Left taillamp |
6 L |
| E3 |
Left taillamp |
11 L |
| E3e1 |
Left turn signal lamp |
9 L |
| E3e3 |
Left backup lamp |
8 L |
| E3e5 |
Left rear fog lamp |
9 L |
| E3e6 |
Left rear side marker lamp {{USA}} |
10 L |
| E3e9 |
Left stop lamp, taillamp and parking lamp |
9 L |
| E4 |
Right taillamp |
12 L |
| E40/2 |
Left trunk lid ambient and warning lamp |
18 L |
| E40/3 |
Right trunk lid ambient and warning lamp |
19 L |
| E4e1 |
Right turn signal lamp |
13 L |
| E4e3 |
Right backup lamp |
13 L |
| E4e5 |
Right rear fog lamp |
12 L |
| E4e6 |
Right rear side marker lamp {{USA}} |
11 L |
| E4e9 |
Right stop lamp, taillamp and parking lamp |
13 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
4 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
12 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
22 A |
| N10/2kM |
Circuit 15 relay |
2 A |
| N82/1 |
Vehicle power supply control unit |
3 L |
| U1 |
Valid for {{USA}} |
10 G |
| U899 |
Valid for backup camera |
6 F |
| W17/1 |
Ground (left rear seat) |
24 G |
| W54 |
Ground, wheelhousing rear right |
19 E |
| W7/1 |
Ground (right taillamp in trunk) |
6 G |
| W7/1 |
Ground (right taillamp in trunk) |
15 G |
| Z38 |
Reversing lamp connector sleeve |
7 G |
| Z4/6 |
Luggage compartment lamp circuit 30 connector sleeve |
17 G |
| Z6/92 |
Trunk lid ground connector sleeve |
19 G |
