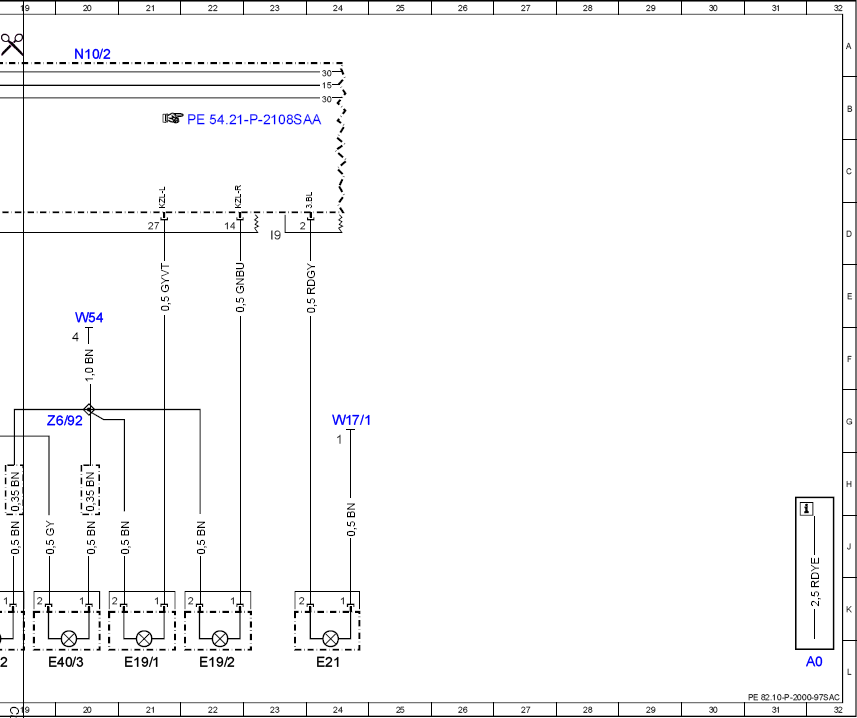

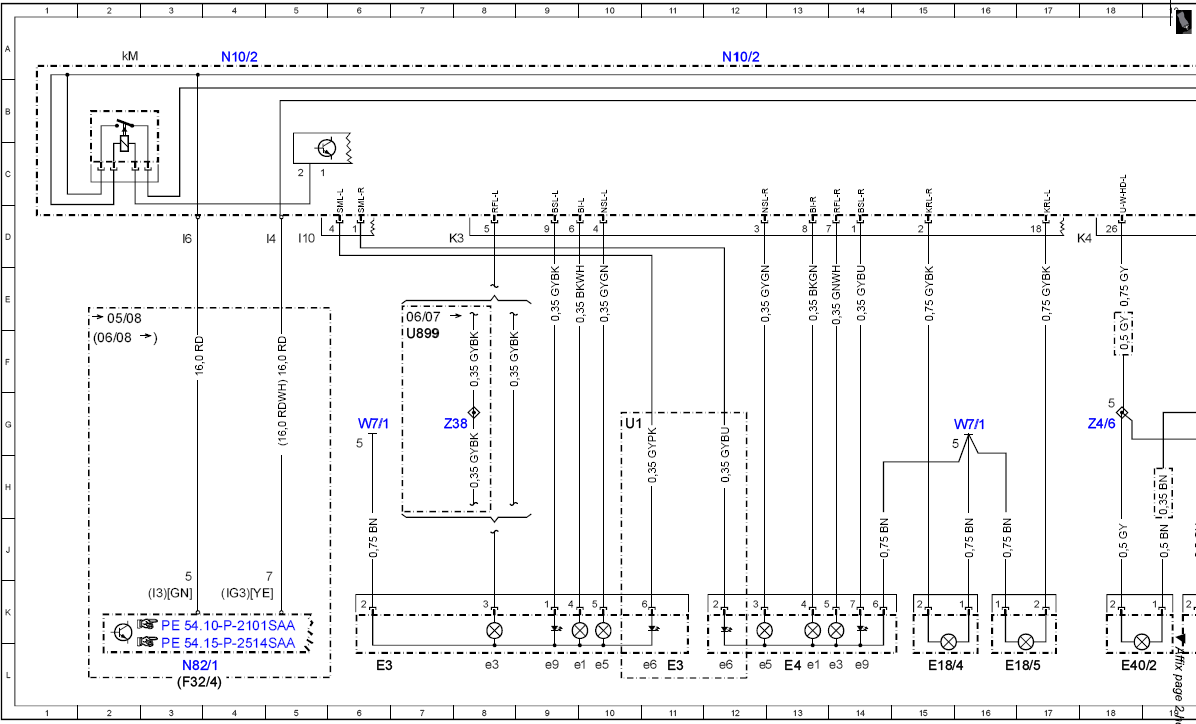

| A0 |
Color code key |
32L |
| E18/4 |
Right luggage compartment lamp |
15L |
| E18/5 |
Left luggage compartment lamp |
16L |
| E19/1 |
Left license plate lamp |
21L |
| E19/2 |
Right license plate lamp |
22L |
| E21 |
Center high-mounted stop lamp |
24L |
| E3 |
Left taillamp |
6L |
| E3 |
Left taillamp |
11L |
| E3e1 |
Left turn signal lamp |
9L |
| E3e3 |
Left backup lamp |
8L |
| E3e5 |
Left rear fog lamp |
10L |
| E3e6 |
Left rear side marker lamp |
11L |
| E3e9 |
Left stop lamp, taillamp and parking lamp |
9L |
| E4 |
Right taillamp |
13L |
| E40/2 |
Left trunk lid ambient and warning lamp |
18L |
| E40/3 |
Right trunk lid ambient and warning lamp |
20L |
| E4e1 |
Right turn signal lamp |
13L |
| E4e3 |
Right backup lamp |
14L |
| E4e5 |
Right rear fog lamp |
12L |
| E4e6 |
Right rear side-marker lamp |
12L |
| E4e9 |
Right stop lamp, taillamp and parking lamp |
14L |
| F32/4 |
Interior prefuse box |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2kM |
Circuit 15 (2)/spare 1 relay (changeover contact) |
2A |
| N82/1 |
Vehicle power supply control unit |
3L |
| U1 |
Valid for {{USA}} |
10G |
| U899 |
Valid for backup camera |
7F |
| W17/1 |
Ground (left rear seat) |
24G |
| W54 |
Ground (right rear wheelhouse) |
20E |
| W7/1 |
Ground (right taillamp in trunk) |
6G |
| W7/1 |
Ground (right taillamp in trunk) |
16G |
| Z38 |
Backup lamp connector sleeve |
8G |
| Z4/6 |
Luggage compartment lamp circuit 30 connector sleeve |
18G |
| Z6/92 |
Trunk lid ground connector sleeve |
20G |
