| A0 |
Color code key |
80L |

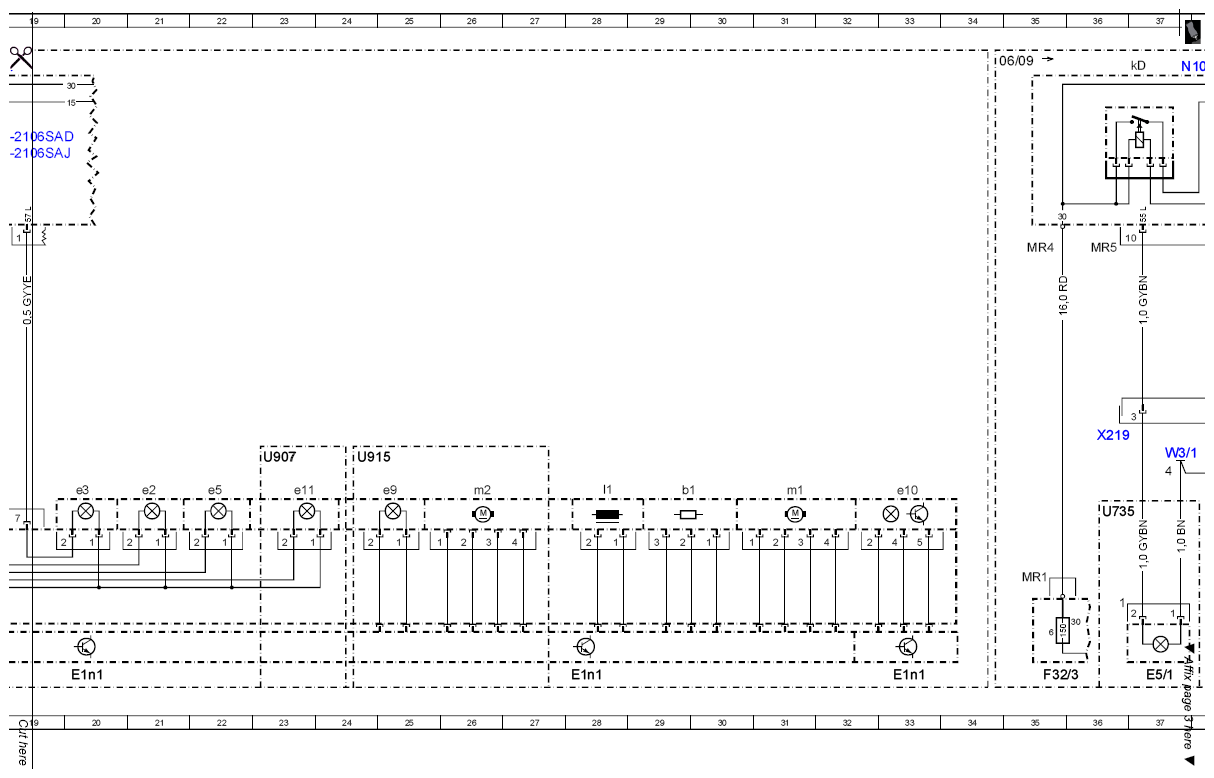

| E1 |
Left front lamp unit |
11K |
| E1 |
Left front lamp unit |
44K |
| E1/3 |
Left daytime running lamps headlamp |
39L |
| E1/3 |
Left daytime running lamps headlamp |
40L |
| E1b1 |
Left active curve illumination position sensor |
29H |
| E1b1 |
Left active curve illumination position sensor |
68H |
| E1b2 |
Left light distribution position sensor |
73H |
| E1e1 |
Left high beam |
77H |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
33H |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
72H |
| E1e11 |
Left infrared lamp |
23H |
| E1e11 |
Left infrared lamp |
61H |
| E1e2 |
Left low beam |
21H |
| E1e3 |
Left standing and parking lamp |
20H |
| E1e3 |
Left standing and parking lamp |
54H |
| E1e3 |
Left standing and parking lamp |
56H |
| E1e5 |
Left turn signal lamp |
22H |
| E1e5 |
Left turn signal lamp |
57H |
| E1e5 |
Left turn signal lamp |
59H |
| E1e9 |
Cornering illumination |
25H |
| E1e9 |
Cornering illumination |
63H |
| E1l1 |
Left high beam solenoid |
28H |
| E1l1 |
Left high beam solenoid |
66H |
| E1m1 |
Left headlamp range adjustment motor |
31H |
| E1m1 |
Left headlamp range adjustment motor |
70H |
| E1m2 |
Left dynamic curve illumination motor |
26H |
| E1m2 |
Left dynamic curve illumination motor |
64H |
| E1m3 |
Left light distribution actuator motor |
75H |
| E1n1 |
Xenon headlamp control unit |
12L |
| E1n1 |
Xenon headlamp control unit |
20L |
| E1n1 |
Xenon headlamp control unit |
28L |
| E1n1 |
Xenon headlamp control unit |
33L |
| E1n1 |
Xenon headlamp control unit |
45L |
| E1n1 |
Xenon headlamp control unit |
54L |
| E1n1 |
Xenon headlamp control unit |
72L |
| E1n1 |
Xenon headlamp control unit |
66L |
| E1n1 |
Xenon headlamp control unit |
77L |

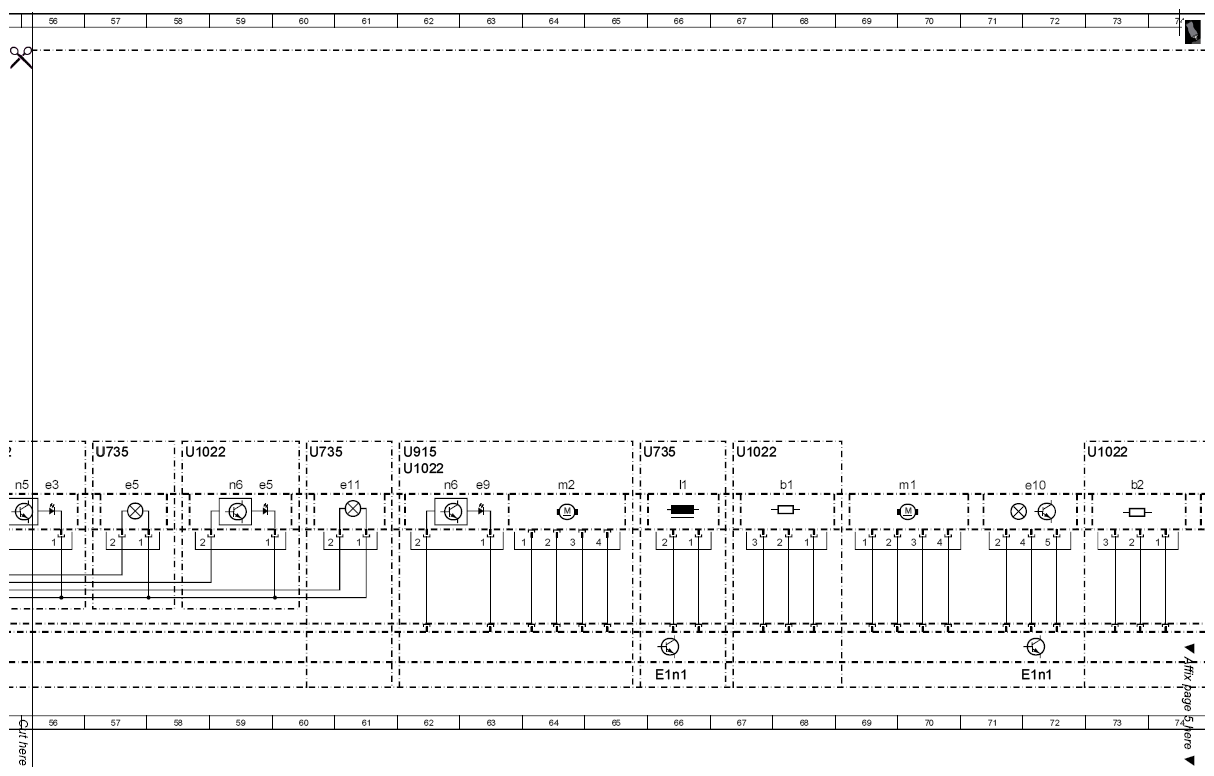

| E1n5 |
Left standing and parking light voltage converter |
55H |
| E1n6 |
Left turn signal and cornering light voltage converter |
62H |
| E1n6 |
Left turn signal and cornering light voltage converter |
59H |

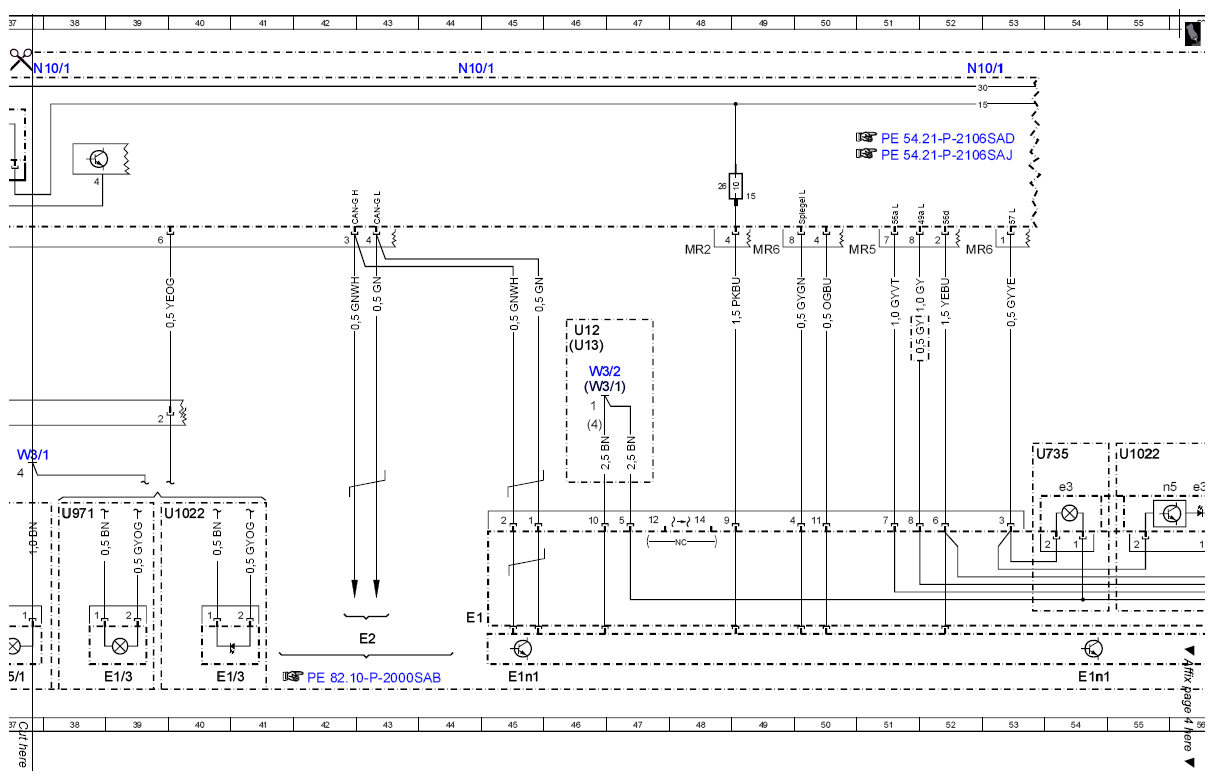

| E2 |
Right front lamp unit |
10K |
| E2 |
Right front lamp unit |
43K |
| E5/1 |
Left front fog lamp |
37L |
| E5/1 |
Left front fog lamp |
4L |

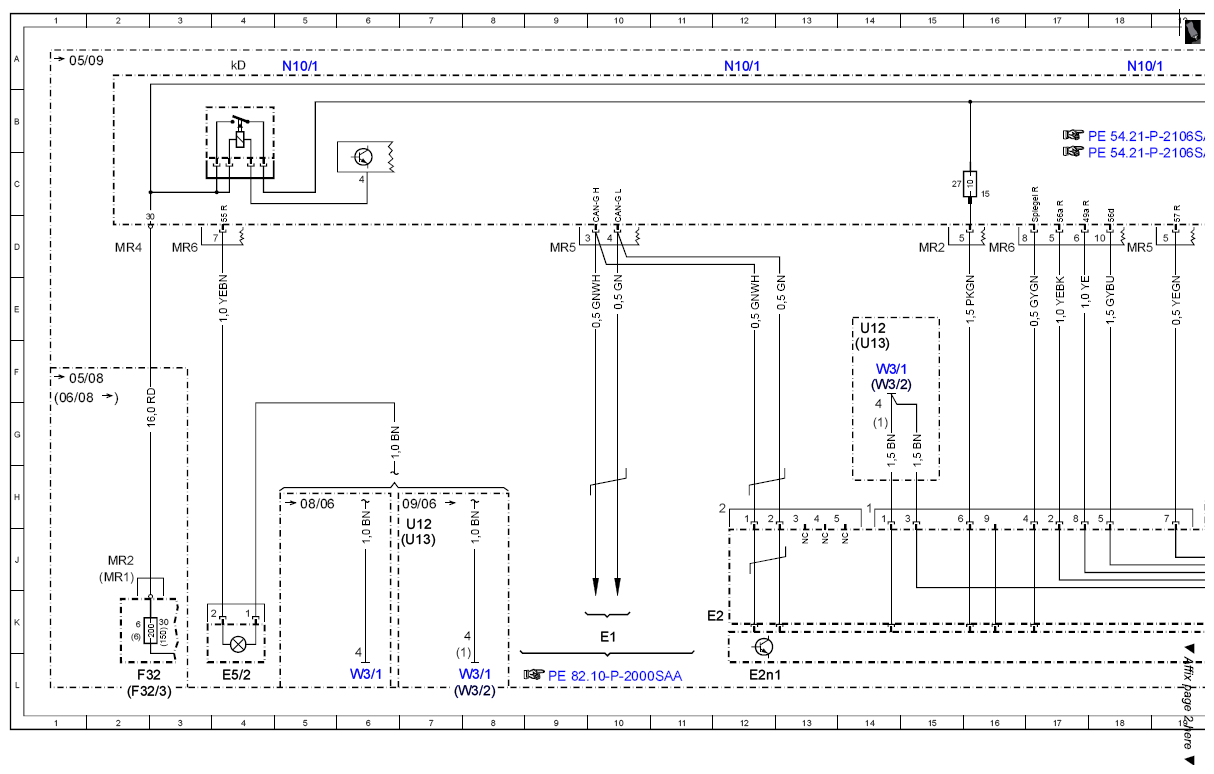

| F32 |
Front prefuse |
2L |
| F32/3 |
Engine compartment prefuse box |
2L |
| F32/3 |
Engine compartment prefuse box |
35L |
| F32/3f6 |
Fuse 6 |
2K |
| F32/3f6 |
Fuse 6 |
35K |
| F32f6 |
Fuse 6 |
2K |
| N10/1 |
Front SAM control unit with fuse and relay module |
5A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
18A |
| N10/1 |
Front SAM control unit with fuse and relay module |
37A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1f26 |
Fuse 26 |
15C |
| N10/1f26 |
Fuse 26 |
48C |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
4A |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
37A |
| U1022 |
Valid for Intelligent Light System |
62H |
| U1022 |
Valid for Intelligent Light System |
67G |
| U1022 |
Valid for Intelligent Light System |
73G |
| U1022 |
Valid for Intelligent Light System |
55G |
| U1022 |
Valid for Intelligent Light System |
58G |
| U1022 |
Valid for Intelligent Light System |
39H |
| U12 |
Valid for left-hand drive vehicles |
7J |
| U12 |
Valid for left-hand drive vehicles |
14E |
| U12 |
Valid for left-hand drive vehicles |
46E |
| U13 |
Valid for right-hand drive vehicles |
7J |
| U13 |
Valid for right-hand drive vehicles |
14F |
| U13 |
Valid for right-hand drive vehicles |
46F |
| U220 |
Valid without Night View Assist |
77G |
| U735 |
Valid for bi-xenon |
60G |
| U735 |
Valid for bi-xenon |
53G |
| U735 |
Valid for bi-xenon |
65G |
| U735 |
Valid for bi-xenon |
57G |
| U735 |
Valid for bi-xenon |
36H |
| U907 |
Valid for night view assist |
23G |
| U915 |
Valid for cornering illumination |
24G |
| U915 |
Valid for cornering illumination |
62G |
| U971 |
Valid for daytime running lamps |
38H |
| W3/1 |
Ground (right front wheelhouse) |
8L |
| W3/1 |
Ground (right front wheelhouse) |
14F |
| W3/1 |
Ground (right front wheelhouse) |
37G |
| W3/1 |
Ground (right front wheelhouse) |
46F |
| W3/2 |
Ground (left front wheelhouse) |
6L |
| W3/2 |
Ground (left front wheelhouse) |
8L |
| W3/2 |
Ground (left front wheelhouse) |
14F |
| W3/2 |
Ground (left front wheelhouse) |
46F |
| X219 |
Daytime running lights/front fog lamps and engine wiring harness connector |
36G |
