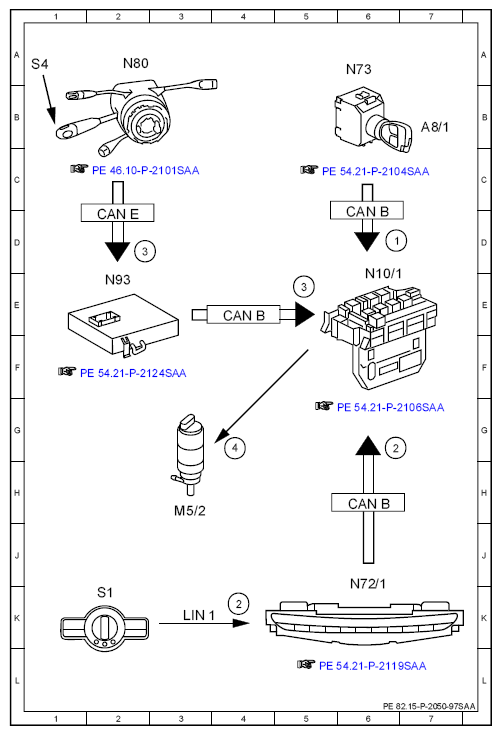

| 1 |
Circuit 15, status |
6D |
| 2 |
Rotary light switch, status |
6G |
| 2 |
Rotary light switch, status |
4K |
| 3 |
Combination switch, status |
2D |
| 3 |
Combination switch, status |
5E |
| 4 |
HCS [SRA] pump, actuation |
4G |
| A8/1 |
Transmitter key |
7B |
| CAN B |
Interior CAN |
6H |
| CAN B |
Interior CAN |
6C |
| CAN B |
Interior CAN |
4E |
| CAN E |
Chassis CAN |
2D |
| LIN 1 |
Instrument panel LIN |
3K |
| M5/2 |
HCS [SRA] pump |
3H |
| N10/1 |
Front SAM control unit with fuse and relay module |
6D |
| N72/1 |
Upper control panel control unit |
6J |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
2A |
| N93 |
Central gateway control unit |
2E |
| S1 |
Rotary light switch |
2K |
| S4 |
Combination switch |
1A |
