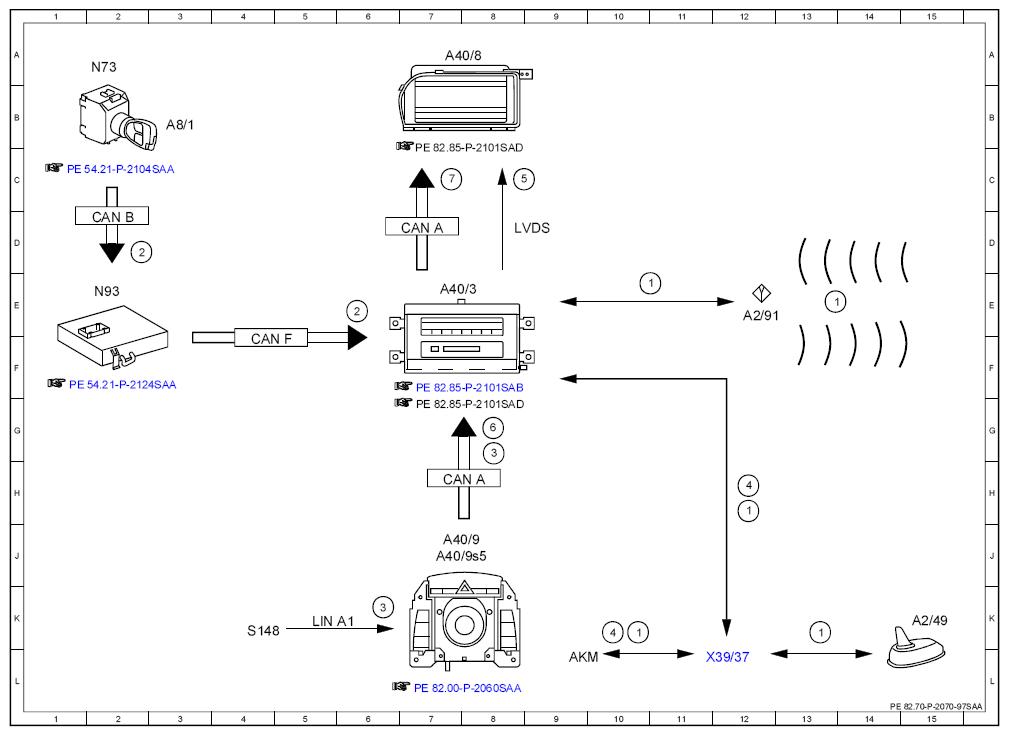

| 1 |
Telephone, signal |
14E |
| 1 |
Telephone, signal |
10E |
| 1 |
Telephone, signal |
10K |
| 1 |
Telephone, signal |
12H |
| 1 |
Telephone, signal |
13K |
| 2 |
Circuit 15R/circuit 15, status ON |
2D |
| 2 |
Circuit 15R/circuit 15, status ON |
6E |
| 4 |
Switch on/off, signal |
10K |
| 4 |
Switch on/off, signal |
12H |
| 5 |
Audio/COMAND display, signal |
8C |
| 7 |
Switch-on request, signal |
7C |
| A2/49 |
Telephone and GPS roof antenna |
15K |
| A2/91 |
Bluetooth antenna |
12E |
| A40/3 |
COMAND control unit |
7E |
| A40/8 |
COMAND display |
7A |
| A40/9 |
Front central operating unit |
7J |
| A40/9s5 |
Telephone/navigation quick select button |
7J |
| A8/1 |
Transmitter key |
3B |
| CAN A |
Telematics CAN |
7D |
| CAN A |
Telematics CAN |
7H |
| CANB |
Interior CAN |
2D |
| CANF |
Central CAN |
4E |
| LIN A1 |
COU [ZBE] LIN |
5K |
| LVDS |
Low voltage differential signal |
8D |
| N73 |
EIS [EZS] control unit |
2A |
| N93 |
Central gateway control unit |
2E |
| S148 |
Center console button group |
4K |
| X39/37 |
CTEL separation point |
12L |
