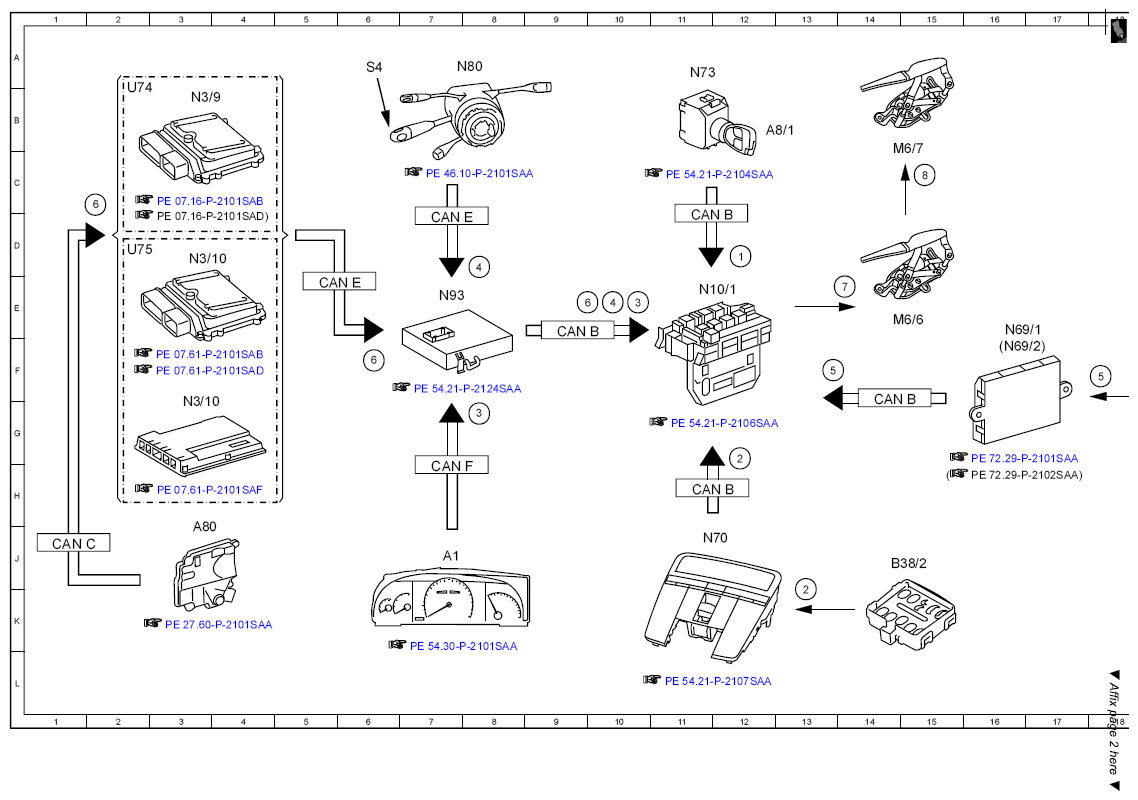

| 1 |
Circuit 15, status |
12D |
| 2 |
Rain/light sensor, status |
12H |
| 2 |
Rain/light sensor, status |
13K |
| 3 |
Vehicle speed, signal |
10E |
| 3 |
Vehicle speed, signal |
8G |
| 4 |
Combination switch, status |
7D |
| 4 |
Combination switch, status |
10E |
| 5 |
Door rotary tumbler switch, status |
18F |
| 5 |
Door rotary tumbler switch, status |
13F |
| 6 |
Transmission mode, signal |
9E |
| 6 |
Transmission mode, signal |
1C |
| 6 |
Transmission mode, signal |
6F |
| 7 |
Master wiper motor, actuation |
13E |
| 8 |
Slave wiper motor, actuation |
15C |
| A1 |
Instrument cluster |
7J |
| A8/1 |
Transmitter key |
12B |
| A80 |
Intelligent servo module for DIRECT SELECT |
3H |
| A85/1s1 |
Right front rotary tumbler switch |
19E |
| A85s1 |
Left front rotary tumbler switch |
19E |
| B38/2 |
Rain/light sensor |
15J |
| CAN B |
Interior CAN |
9E |
| CAN B |
Interior CAN |
11H |
| CAN B |
Interior CAN |
11C |
| CAN B |
Interior CAN |
14F |
| CAN C |
Drive train CAN |
1J |
| CAN E |
Chassis CAN |
7C |
| CAN E |
Chassis CAN |
5E |
| CAN F |
Central CAN |
7H |
| M6/6 |
Master wiper motor |
14E |
| M6/7 |
Slave wiper motor |
14B |
| N10/1 |
Front SAM control unit with fuse and relay module |
11E |
| N3/10 |
ME-SFI [ME] control unit |
3F |
| N3/10 |
ME-SFI [ME] control unit |
3D |
| N3/9 |
CDI control unit |
3B |
| N69/1 |
Left front door control unit |
16E |
| N69/2 |
Right front door control unit |
16F |
| N70 |
Overhead control panel control unit |
11J |
| N73 |
EIS [EZS] control unit |
11A |
| N80 |
Steering column module |
7A |
| N93 |
Central gateway control unit |
7E |
| S4 |
Combination switch |
6A |
| U74 |
Valid for diesel engines |
2A |
| U75 |
Valid for gasoline engines |
2D |
