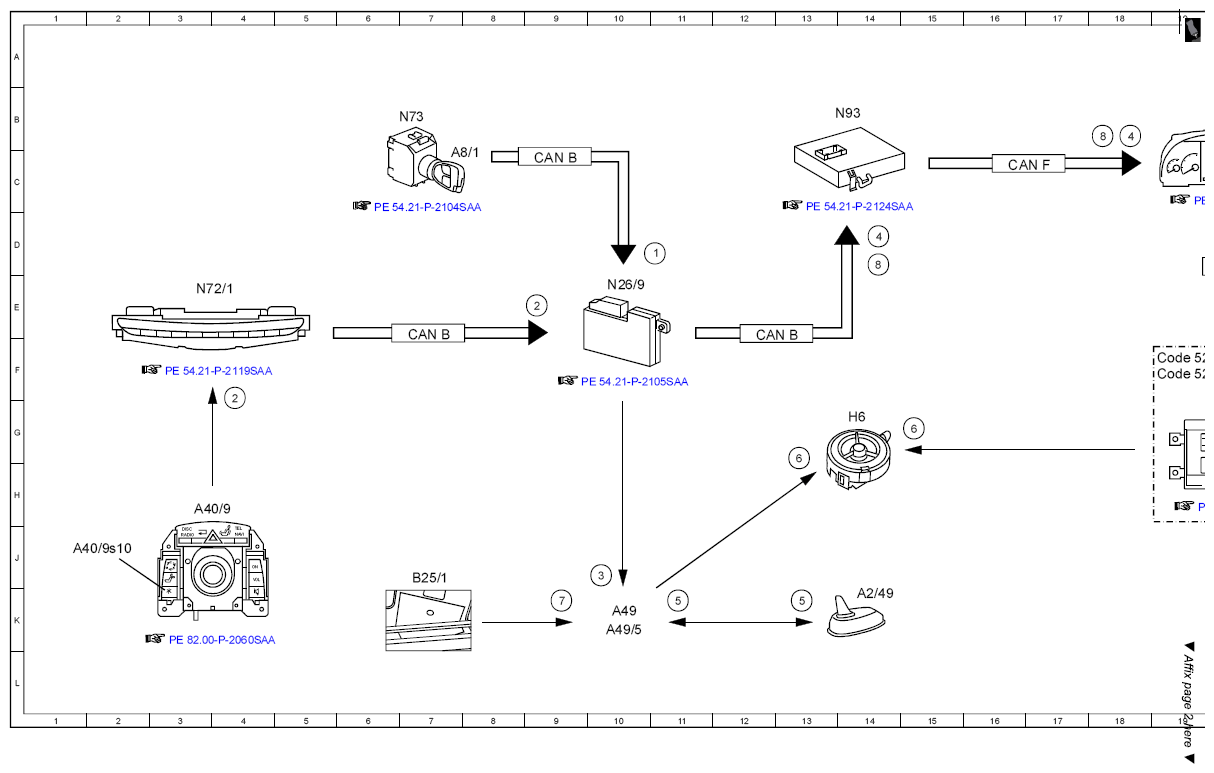

| 1 |
Circuit 15, status |
11D |
| 2 |
Two-way radio connection request |
9E |
| 2 |
Two-way radio connection request |
4G |
| 3 |
Two-way radio connection signal |
10J |
| 4 |
Mute, signal |
14D |
| 4 |
Mute, signal |
18B |
| 4 |
Mute, signal |
20E |
| 5 |
Transmit/receive signal |
11K |
| 5 |
Transmit/receive signal |
13K |
| 6 |
Voice output, signal |
15G |
| 6 |
Voice output, signal |
13G |
| 7 |
Voice input, signal |
9K |
| 8 |
Instrument cluster, message |
14D |
| 8 |
Instrument cluster, message |
18B |
| A1 |
Instrument cluster |
20B |
| A2/49 |
Telephone and GPS roof antenna |
14K |
| A40/3 |
COMAND control unit |
20G |
| A40/9 |
Front central operating unit |
3H |
| A40/9s10 |
Freely programmable button |
2J |
| A49 |
Two-way radio |
10K |
| A49/5 |
Radio data transmission two-way radio |
10K |
| A8/1 |
Transmitter key |
7C |
| B25/1 |
Microphone |
7J |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
7F |
| CAN B |
Interior CAN |
9C |
| CAN F |
Central CAN |
16C |
| CAN F |
Central CAN |
20D |
| Code 526 |
COMAND with single DVD drive (without navigation) |
19F |
| Code 527 |
COMAND APS (with navigation) |
19F |
| H6 |
Taxi two-way radio speaker |
14G |
| N26/9 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
10E |
| N72/1 |
Upper control panel control unit |
3E |
| N73 |
EIS [EZS] control unit |
7B |
| N93 |
Central gateway control unit |
14B |
