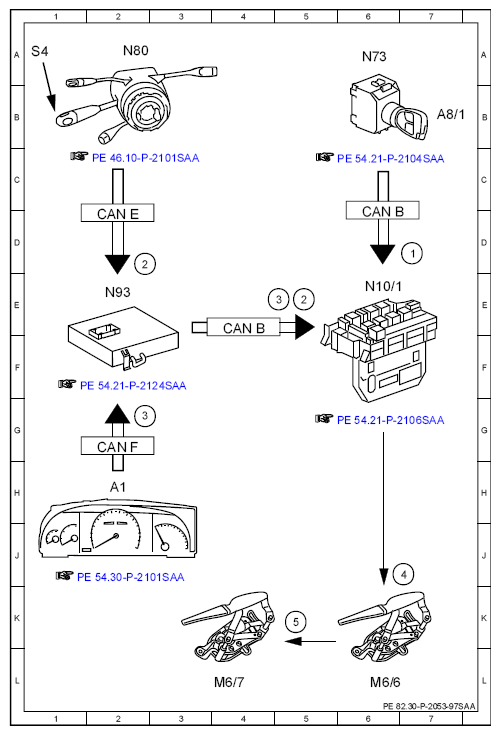

| 1 |
Circuit 15, status |
7D |
| 2 |
Combination switch, status |
2D |
| 2 |
Combination switch, status |
5E |
| 3 |
Vehicle speed, signal |
2G |
| 3 |
Vehicle speed, signal |
4E |
| 4 |
Master wiper motor, actuation |
6J |
| 5 |
Slave wiper motor, actuation |
5K |
| A1 |
Instrument cluster |
2H |
| A8/1 |
Transmitter key |
7B |
| CAN B |
Interior CAN |
4E |
| CAN B |
Interior CAN |
6C |
| CAN E |
Chassis CAN |
2C |
| CAN F |
Central CAN |
2G |
| M6/6 |
Master wiper motor |
6L |
| M6/7 |
Slave wiper motor |
4L |
| N10/1 |
Front SAM control unit with fuse and relay module |
6E |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
2A |
| N93 |
Central gateway control unit |
2E |
| S4 |
Combination switch |
1A |
