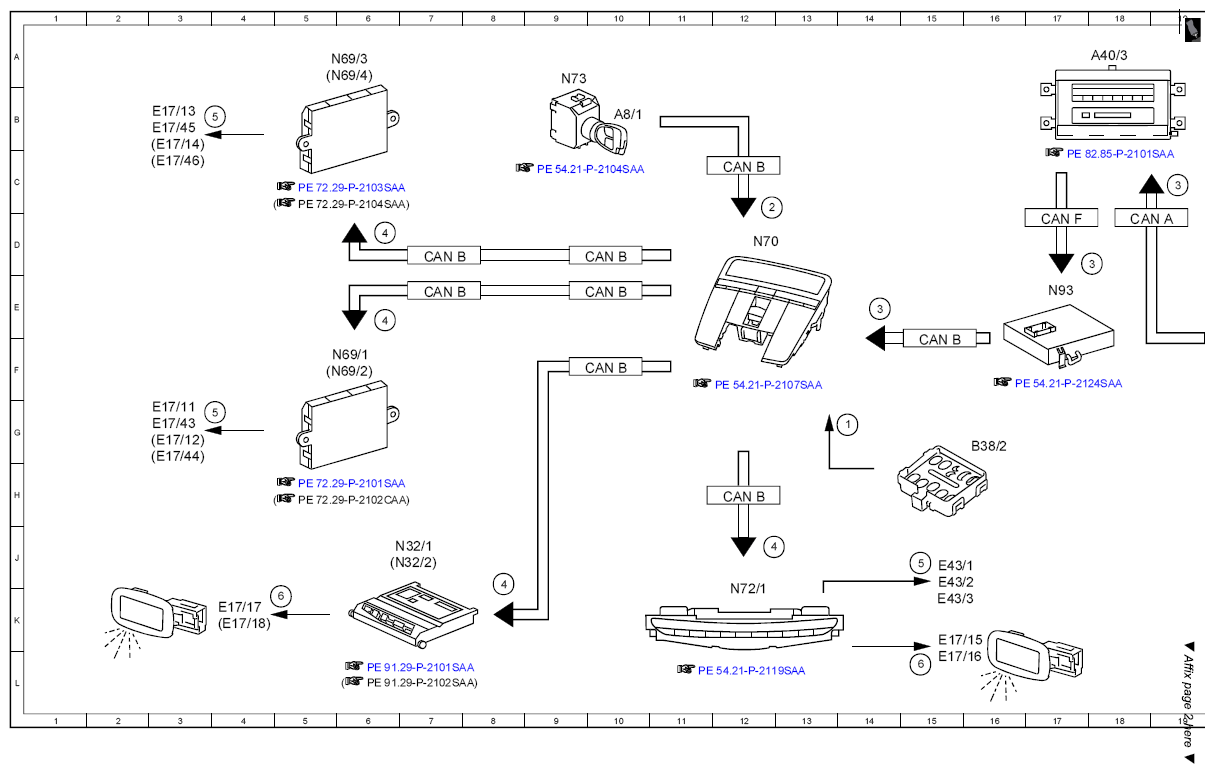

| 1 |
Rain/light sensor, status |
14G |
| 2 |
Circuit 15, status |
12C |
| 3 |
Ambiance illumination brightness, status |
14E |
| 3 |
Ambiance illumination brightness, status |
18D |
| 3 |
Ambiance illumination brightness, status |
19C |
| 4 |
Ambience illumination, request |
8J |
| 4 |
Ambience illumination, request |
6E |
| 4 |
Ambience illumination, request |
6D |
| 4 |
Ambience illumination, request |
12J |
| 5 |
Ambience illumination, actuation |
4G |
| 5 |
Ambience illumination, actuation |
15J |
| 5 |
Ambience illumination, actuation |
4B |
| 6 |
Footwell lamp, actuation |
5K |
| 6 |
Footwell lamp, actuation |
15L |
| A40/3 |
COMAND control unit |
18A |
| A40/9 |
Front central operating unit |
20E |
| A8/1 |
Transmitter key |
10B |
| B38/2 |
Rain/light sensor |
16G |
| CAN A |
Telematics CAN |
18C |
| CAN B |
Interior CAN |
12H |
| CAN B |
Interior CAN |
10F |
| CAN B |
Interior CAN |
10E |
| CAN B |
Interior CAN |
10D |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
7E |
| CAN B |
Interior CAN |
15E |
| CAN B |
Interior CAN |
12C |
| CAN F |
Central CAN |
17F |
| E17/11 |
Left front door inside handle illumination |
3G |
| E17/12 |
Right front door inside handle illumination |
3G |
| E17/13 |
Left rear inside door handle illumination |
3B |
| E17/14 |
Right rear door inside handle illumination |
3B |
| E17/15 |
Right front footwell lamp |
15K |
| E17/16 |
Left front footwell lamp |
15L |
| E17/17 |
Right rear footwell lamp |
4K |
| E17/18 |
Left rear footwell lamp |
4K |
| E17/43 |
Left front door trim strip illumination |
3G |
| E17/44 |
Right front door trim strip illumination |
3G |
| E17/45 |
Left rear door trim strip illumination |
3B |
| E17/46 |
Right rear door trim strip illumination |
3C |
| E43/1 |
Ambiance illumination LED 1 |
15J |
| E43/2 |
Ambiance illumination LED 2 |
15J |
| E43/3 |
Ambiance illumination LED 3 |
15K |
| N32/1 |
Left front seat control unit |
7J |
| N32/2 |
Right front seat control unit |
7J |
| N69/1 |
Left front door control unit |
6F |
| N69/2 |
Right front door control unit |
6F |
| N69/3 |
Rear left door control unit |
6A |
| N69/4 |
Right rear door control unit |
6A |
| N70 |
Overhead control panel control unit |
12D |
| N72/1 |
Upper control panel control unit |
12K |
| N73 |
EIS [EZS] control unit |
9A |
| N93 |
Central gateway control unit |
17E |
