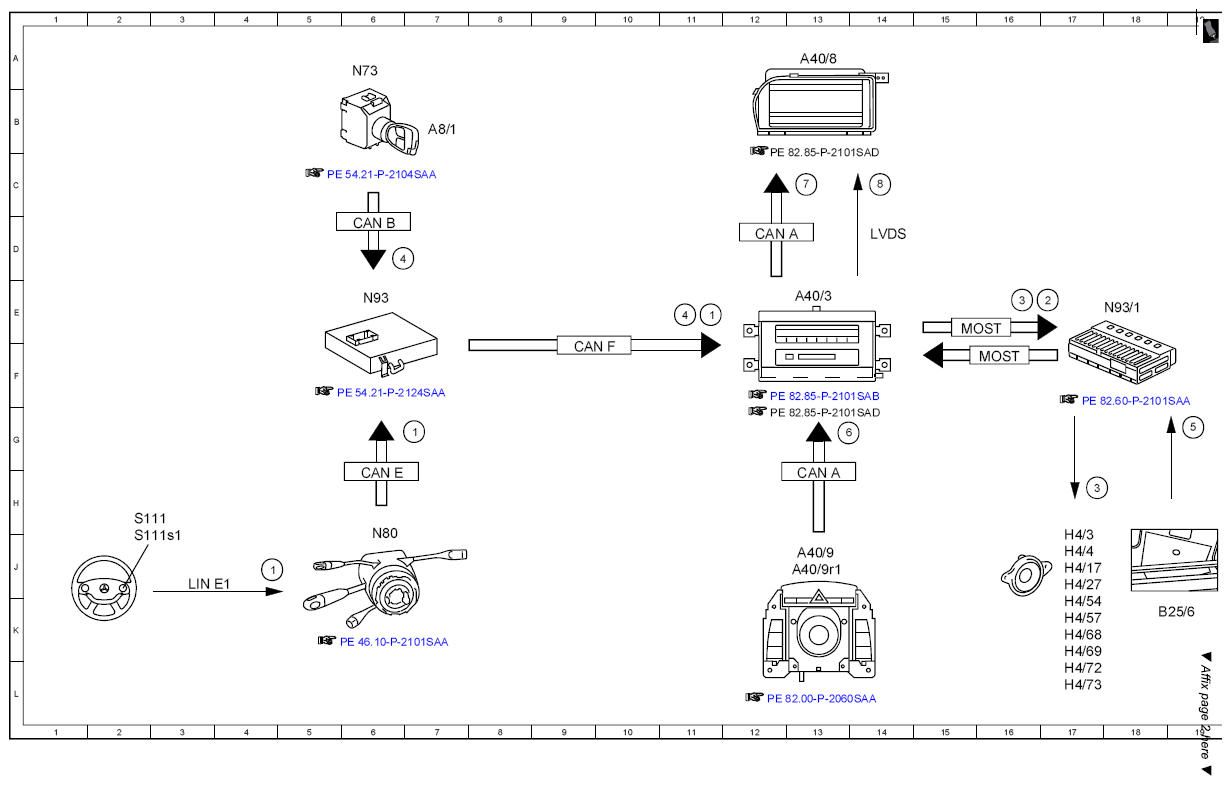

| 1 |
Multifunction steering wheel button group, signal |
6G |
| 1 |
Multifunction steering wheel button group, signal |
4J |
| 1 |
Multifunction steering wheel button group, signal |
11E |
| 2 |
Vehicle speed, signal |
16E |
| 3 |
Speaker, actuation |
17H |
| 3 |
Speaker, actuation |
16E |
| 4 |
Circuit 15R/circuit 15, status ON |
6D |
| 4 |
Circuit 15R/circuit 15, status ON |
11E |
| 5 |
Microphone, signal |
19G |
| 7 |
Switch-on request, signal |
13C |
| 8 |
Volume display, actuation |
14C |
| A40/3 |
COMAND control unit |
13E |
| A40/8 |
COMAND display |
13A |
| A40/9 |
Front central operating unit |
13J |
| A40/9r1 |
Volume control |
13J |
| A8/1 |
Transmitter key |
7B |
| B25/6 |
Sound amplifier microphone |
19K |
| CAN A |
Telematics CAN |
12D |
| CAN A |
Telematics CAN |
13G |
| CAN B |
Interior CAN |
6C |
| CAN E |
Chassis CAN |
6H |
| CAN F |
Central CAN |
9E |
| H4/17 |
Bass module speaker |
17J |
| H4/27 |
Center cockpit speaker (centerfill) |
17J |
| H4/3 |
Left rear door speaker group |
17H |
| H4/4 |
Right rear door speaker group |
17J |
| H4/54 |
Left rear surround speaker |
17K |
| H4/57 |
Right rear surround speaker |
17K |
| H4/68 |
Left front door Sound tweeter |
17K |
| H4/69 |
Right front door Sound tweeter |
17K |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
17L |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
17L |
| LIN E1 |
Steering LIN |
3J |
| LVDS |
Low voltage differential signal |
14D |
| MOST |
Media Oriented System Transport |
15E |
| MOST |
Media Oriented System Transport |
15F |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
6J |
| N93 |
Central gateway control unit |
6E |
| N93/1 |
Audio tuner control unit |
18E |
| S111 |
Right multifunction steering wheel button group |
2H |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
2J |
