| 1 |
Circuit 15R, status |
7E |
| 1 |
Circuit 15R, status |
11G |
| 2 |
Telephone, signal |
6J |
| 2 |
Telephone, signal |
7K |
| 2 |
Telephone, signal |
6C |
| 2 |
Telephone, signal |
7B |

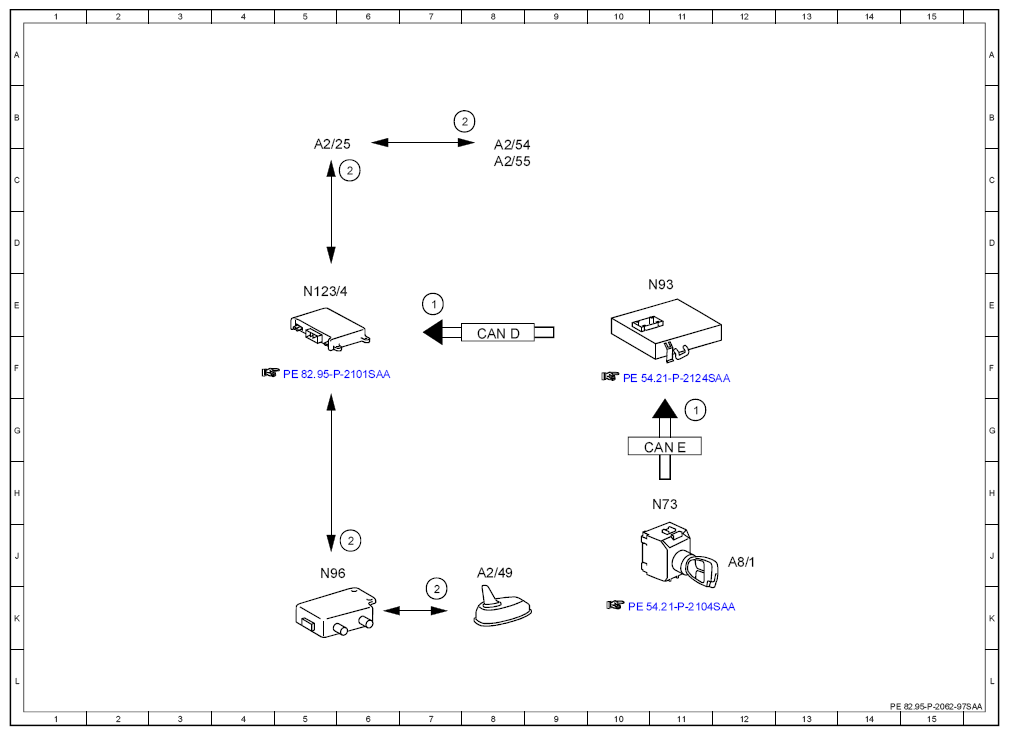

| A2/25 |
Emergency call system antenna splitter |
5B |
| A2/49 |
Telephone and GPS roof antenna |
8J |
| A2/54 |
Emergency call system left backup antenna |
8B |
| A2/55 |
Emergency call system right backup antenna |
8C |
| A8/1 |
Transmitter key |
12J |
| CAN D |
Diagnostic CAN |
8E |
| CAN E |
Chassis CAN |
10G |
| N123/4 |
Emergency call system control unit |
5E |
| N73 |
EIS [EZS] control unit |
11H |
| N93 |
Central gateway control unit |
10E |
| N96 |
Frequency switchover control unit |
5J |
