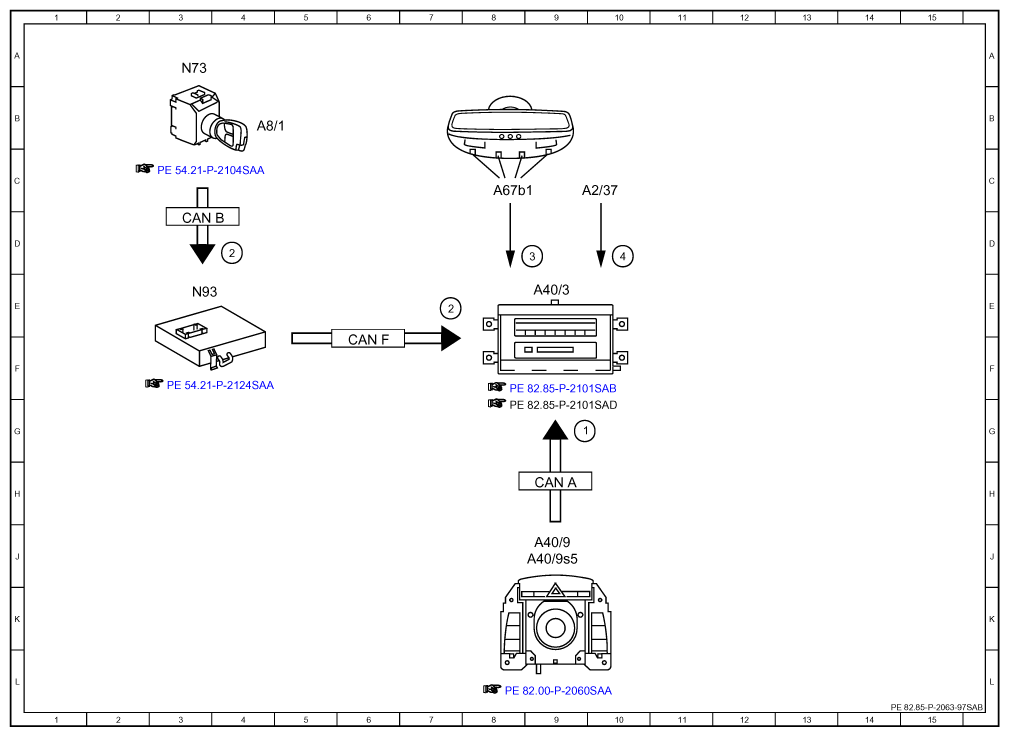

Electrical function Schematic for navigation mode (COMAND), function - PE82.85-P-2063-97SAB
| Code: | Designation: | Position: |
|---|---|---|
| 2 | Circuit 15R/circuit 15, status ON | 4D |
| 2 | Circuit 15R/circuit 15, status ON | 7E |
| 3 | Microphone, signal | 8D |
| 4 | VICS, signal | 10D |
| A2/37 | VICS control unit | 9C |
| A40/3 | COMAND control unit | 9E |
| A40/9 | Front central operating unit | 9J |
| A40/9s5 | Telephone/navigation quick select button | 9J |
| A67b1 | Hands-free system microphone group | 8C |
| A8/1 | Transmitter key | 4B |
| CAN A | Telematics CAN | 9H |
| CAN B | Interior CAN | 3D |
| CAN F | Central CAN | 6E |
| N73 | EIS [EZS] control unit | 3A |
| N93 | Central gateway control unit | 3E |
