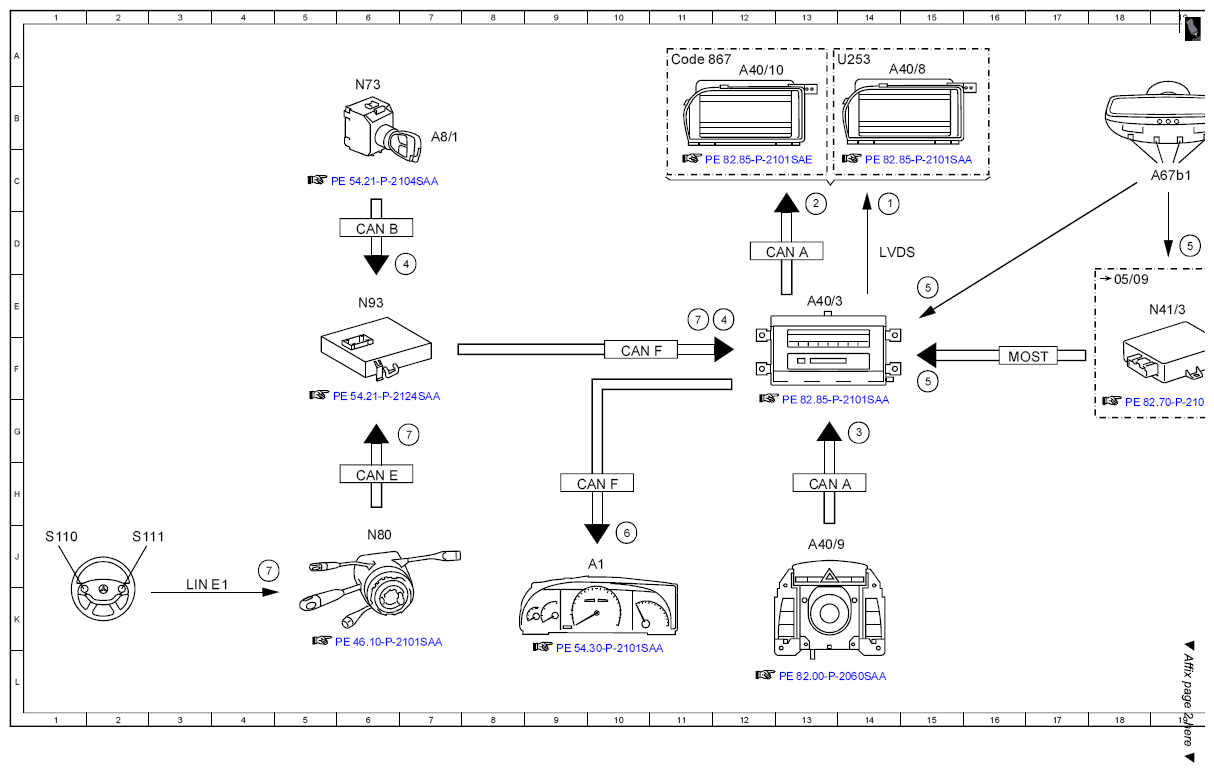

| 1 |
Audio/COMAND display, signal |
14C |
| 2 |
Switch-on request, signal |
13C |
| 4 |
Circuit 15R/circuit 15, status ON |
7D |
| 4 |
Circuit 15R/circuit 15, status ON |
12E |
| 5 |
Microphone, signal |
15F |
| 5 |
Microphone, signal |
19D |
| 5 |
Microphone, signal |
15E |
| 7 |
Multifunction steering wheel button group, signal |
7G |
| 7 |
Multifunction steering wheel button group, signal |
4J |
| 7 |
Multifunction steering wheel button group, signal |
11E |
| A1 |
Instrument cluster |
10J |
| A40/10 |
SPLITVIEW display |
12A |
| A40/3 |
COMAND control unit |
13E |
| A40/8 |
COMAND display |
14A |
| A40/9 |
Front central operating unit |
13J |
| A67b1 |
Hands-free system microphone group |
19C |
| A8/1 |
Transmitter key |
7B |
| CAN A |
Telematics CAN |
12D |
| CAN A |
Telematics CAN |
13H |
| CAN B |
Interior CAN |
6D |
| CAN E |
Chassis CAN |
6H |
| CAN F |
Central CAN |
10F |
| CAN F |
Central CAN |
9F |
| Code 867 |
SPLITVIEW |
11A |
| LIN E1 |
Steering LIN |
3J |
| LVDS |
Low voltage differential signal |
14D |
| MOST |
Media Oriented System Transport |
16F |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
19E |
| N73 |
EIS [EZS] control unit |
6B |
| N80 |
Steering column module |
6J |
| N93 |
Central gateway control unit |
6E |
| S110 |
Left multifunction steering wheel button group |
1J |
| S111 |
Right multifunction steering wheel button group |
2J |
| U253 |
Not valid for SPLITVIEW display |
13A |
