| 1 |
Circuit 15, status |
19G |
| 1 |
Circuit 15, status |
22F |
| 10 |
Incoming call display, actuation |
20L |
| 10 |
Incoming call display, actuation |
8D |
| 11 |
Ring tone output, signal |
16J |
| 11 |
Ring tone output, signal |
12K |
| 11 |
Ring tone output, signal |
4J |
| 11 |
Ring tone output, signal |
5J |
| 11 |
Ring tone output, signal |
5H |
| 11 |
Ring tone output, signal |
4F |
| 12 |
Display of caller information, actuation |
20L |
| 12 |
Display of caller information, actuation |
16E |
| 12 |
Display of caller information, actuation |
7D |
| 12 |
Display of caller information, actuation |
15B |
| 13 |
Telephone/address book data display, request |
31G |
| 13 |
Telephone/address book data display, request |
27J |
| 13 |
Telephone/address book data display, request |
19H |
| 14 |
Accept phone call, request |
15E |
| 14 |
Accept phone call, request |
17E |
| 14 |
Accept phone call, request |
19G |
| 14 |
Accept phone call, request |
19C |
| 14 |
Accept phone call, request |
31G |
| 14 |
Accept phone call, request |
27J |
| 14 |
Accept phone call, request |
24G |
| 14 |
Accept phone call, request |
19H |
| 15 |
Mute, signal |
16J |
| 16 |
Circuit 30, status |
23F |
| 2 |
Establish connection for phone call, request |
19G |
| 2 |
Establish connection for phone call, request |
31G |
| 2 |
Establish connection for phone call, request |
27J |
| 2 |
Establish connection for phone call, request |
19H |
| 2 |
Establish connection for phone call, request |
24G |
| 2 |
Establish connection for phone call, request |
17C |
| 2 |
Establish connection for phone call, request |
16E |
| 3 |
Connection via Bluetooth, communication |
19D |
| 3 |
Connection via Bluetooth, communication |
15E |
| 4 |
Establish connection in mobile telephone network, request |
15D |
| 4 |
Establish connection in mobile telephone network, request |
19B |
| 4 |
Establish connection in mobile telephone network, request |
23C |
| 4 |
Establish connection in mobile telephone network, request |
28C |
| 5 |
Voice input, signal |
15F |
| 6 |
Voice output, signal |
17J |
| 6 |
Voice output, signal |
11K |
| 6 |
Voice output, signal |
3J |
| 6 |
Voice output, signal |
5J |
| 6 |
Voice output, signal |
5H |
| 6 |
Voice output, signal |
4F |
| 7 |
Phone call data, communication |
17E |
| 7 |
Phone call data, communication |
17F |
| 7 |
Phone call data, communication |
18C |
| 7 |
Phone call data, communication |
22B |
| 7 |
Phone call data, communication |
27B |
| 7 |
Phone call data, communication |
15D |
| 7 |
Phone call data, communication |
16C |
| 8 |
Download of telephone/address book data, communication |
16F |
| 8 |
Download of telephone/address book data, communication |
17C |
| 8 |
Download of telephone/address book data, communication |
16D |
| 8 |
Download of telephone/address book data, communication |
16C |
| 9 |
Telephone/address book data display, actuation |
20K |
| 9 |
Telephone/address book data display, actuation |
8D |

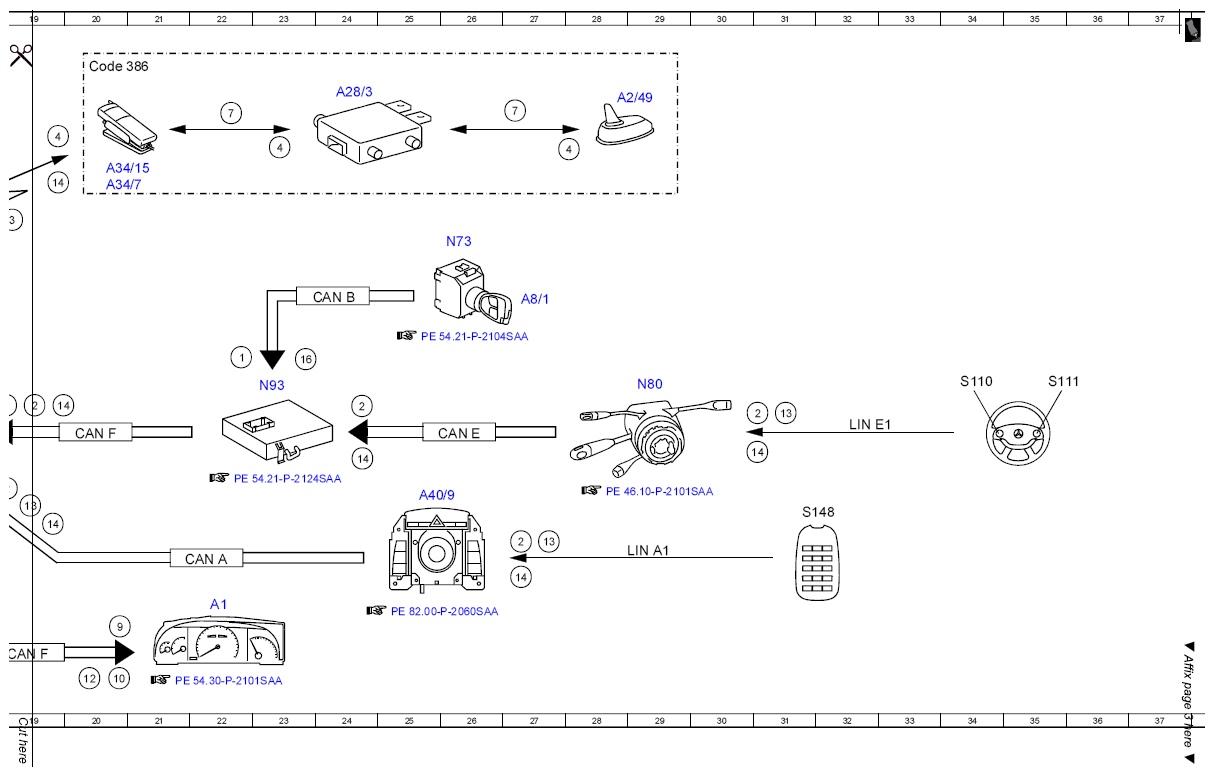

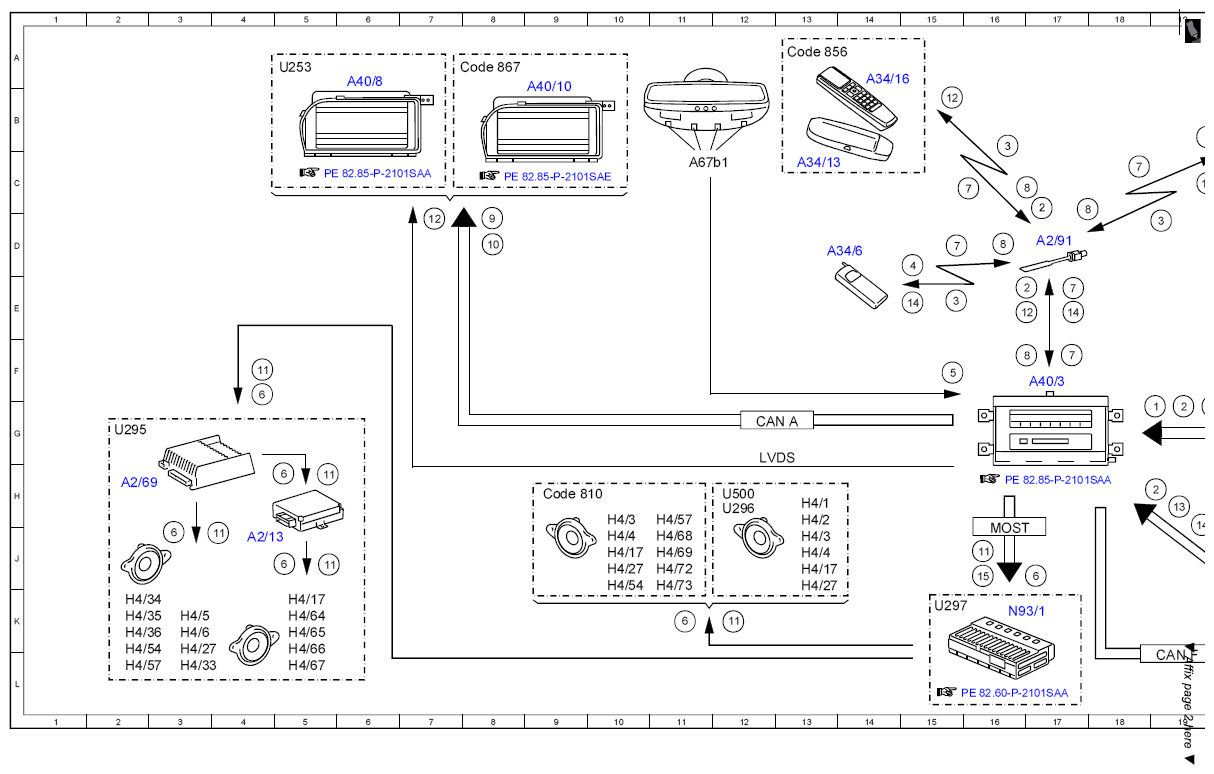

| A1 |
Instrument cluster |
22K |
| A2/13 |
Sound amplifier |
4J |
| A2/49 |
Telephone and GPS roof antenna |
28B |
| A2/69 |
Digital sound processor |
2H |
| A2/91 |
Bluetooth antenna |
17D |
| A28/3 |
E-net compensator |
24B |
| A34/13 |
Rear handset cradle |
13C |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
20C |
| A34/16 |
Rear handset |
14A |
| A34/6 |
Mobile phone |
13D |
| A34/7 |
Bluetooth module |
20C |
| A40/10 |
SPLITVIEW display |
9B |
| A40/3 |
COMAND control unit |
17F |
| A40/8 |
COMAND display |
6A |
| A40/9 |
Front central operating unit |
25H |
| A67b1 |
Hands-free system microphone group |
11C |
| A8/1 |
Transmitter key |
27E |
| CAN A |
Telematics CAN |
12G |
| CAN A |
Telematics CAN |
22J |
| CANB |
Interior CAN |
24E |
| CANE |
Chassis CAN |
26G |
| CANF |
Central CAN |
20G |
| CANF |
Central CAN |
19L |
| Code 386 |
Mobile phone preinstallation with universal interface |
20A |
| Code 810 |
Sound system |
9H |
| Code 856 |
2nd handset in rear armrest |
13A |
| Code 867 |
SPLITVIEW |
7A |
| H4/1 |
Left front door speaker group |
13H |
| H4/17 |
Bass module speaker |
10J |
| H4/17 |
Bass module speaker |
13J |
| H4/17 |
Bass module speaker |
5K |
| H4/2 |
Right front door speaker group |
13H |
| H4/27 |
Center cockpit speaker (centerfill) |
10J |
| H4/27 |
Center cockpit speaker (centerfill) |
13K |
| H4/27 |
Center cockpit speaker (centerfill) |
3L |
| H4/3 |
Left rear door speaker group |
10H |
| H4/3 |
Left rear door speaker group |
13J |
| H4/33 |
Left front door tweeter |
3L |
| H4/34 |
Right front door tweeter |
2K |
| H4/35 |
Left rear door tweeter |
2K |
| H4/36 |
Right rear door tweeter |
2K |
| H4/4 |
Right rear door speaker group |
10J |
| H4/4 |
Right rear door speaker group |
13J |
| H4/5 |
Left front door speaker |
3K |
| H4/54 |
Left rear surround speaker |
10K |
| H4/54 |
Left rear surround speaker |
2L |
| H4/57 |
Right rear surround speaker |
11H |
| H4/57 |
Right rear surround speaker |
2L |
| H4/6 |
Right front door speaker |
3K |
| H4/64 |
Left front door woofer |
5K |
| H4/65 |
Right front door woofer |
5K |
| H4/66 |
Left rear door woofer |
5L |
| H4/67 |
Right rear door woofer |
5L |
| H4/68 |
Left front door Sound tweeter |
11J |
| H4/69 |
Right front door Sound tweeter |
11J |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
11J |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
11K |
| LINA1 |
COU [ZBE] LIN |
29J |
| LINE1 |
Steering LIN |
32G |
| LVDS |
Low voltage differential signal |
12G |
| MOST |
Media Oriented System Transport |
16J |
| N73 |
EIS [EZS] control unit |
26D |
| N80 |
Steering column module |
29F |
| N93 |
Central gateway control unit |
23F |
| N93/1 |
Audio tuner control unit |
16K |
| S110 |
Left multifunction steering wheel button group |
34F |
| S111 |
Right multifunction steering wheel button group |
35F |
| S148 |
Center console button group |
31H |
| U253 |
Not valid for SPLITVIEW display |
5A |
| U295 |
Valid for expanded sound system |
2G |
| U296 |
Not valid for expanded sound system |
12H |
| U297 |
Not valid for USA with expanded sound system |
15K |
| U500 |
Not valid for Sound System |
12H |
