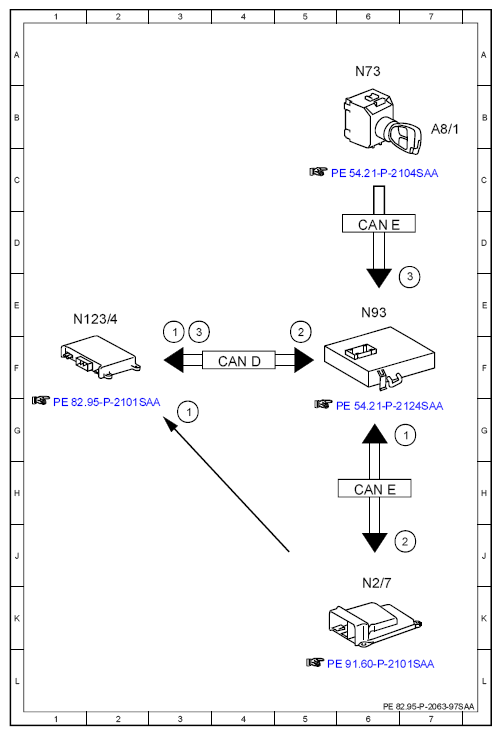

Electrical function Schematic for data from restraint systems control unit, function - PE82.95-P-2063-97SAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 3G |
| 1 | Crash, signal | 7G |
| 1 | Crash, signal | 3E |
| 2 | Check signal, signal | 5E |
| 2 | Check signal, signal | 7J |
| 3 | Circuit 15R/circuit 15, status ON | 7E |
| 3 | Circuit 15R/circuit 15, status ON | 3E |
| A8/1 | Transmitter key | 7B |
| CAN D | Diagnostic CAN | 4F |
| CAN E | Chassis CAN | 6D |
| CAN E | Chassis CAN | 6H |
| N123/4 | Emergency call system control unit | 1E |
| N2/7 | Restraint systems control unit | 6J |
| N73 | EIS [EZS] control unit | 6A |
| N93 | Central gateway control unit | 6E |
