| 1 |
Circuit 15, status |
6D |
| 3 |

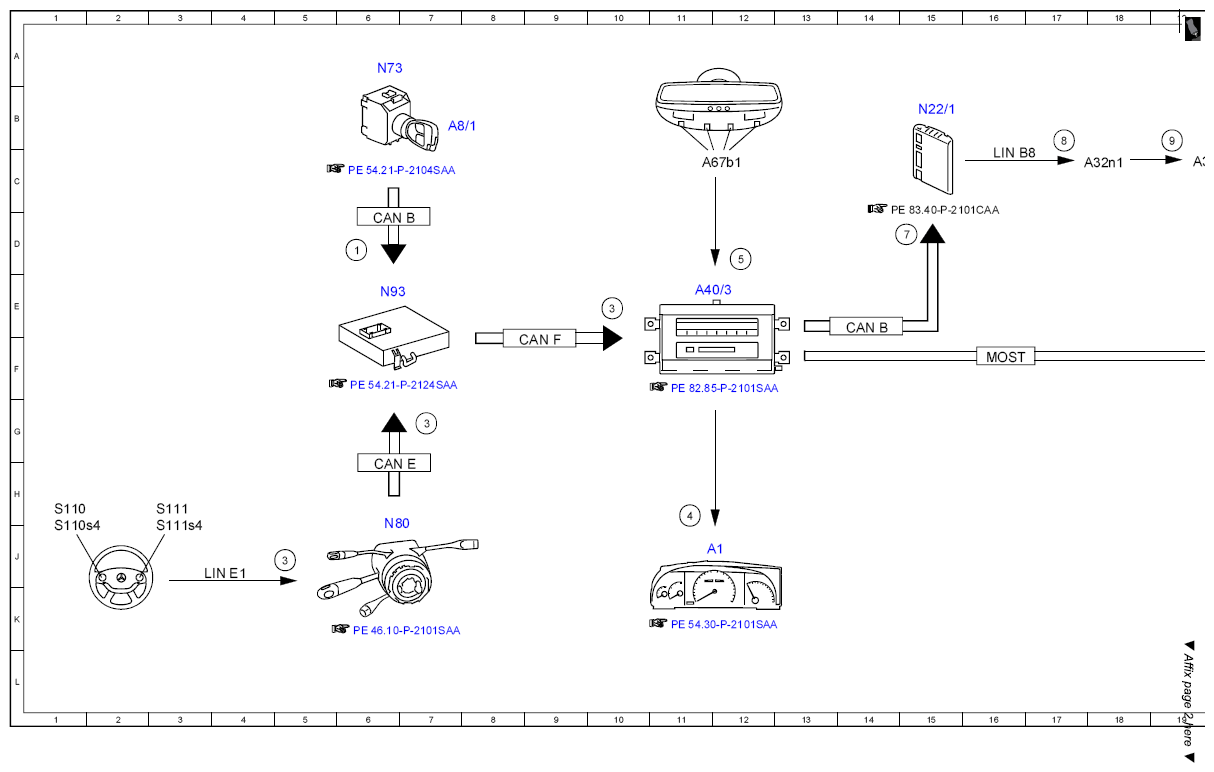

Voice control system (VCS) activation, request |
5J |
| 3 |
Voice control system (VCS) activation, request |
10E |
| 3 |
Voice control system (VCS) activation, request |
7G |
| 4 |
Voice control system (VCS) active indicator, actuation |
11H |
| 5 |
Voice input, signal |
12D |
| 6 |
Voice output, signal |
22D |
| 6 |
Voice output, signal |
20E |
| 6 |
Voice output, signal |
22H |
| 6 |
Voice output, signal |
26G |
| 6 |
Voice output, signal |
26J |
| 6 |
Voice output, signal |
25F |
| 7 |
Voice input, status |
15D |
| 8 |
Blower motor, request |
17B |
| 9 |
Blower motor, actuation |
19B |
| A1 |
Instrument cluster |
11J |
| A2/13 |
Sound amplifier |
25H |
| A2/69 |
Digital sound processor |
23G |
| A32m1 |
Blower motor |
19C |
| A32n1 |
Blower regulator |
17C |
| A40/3 |
COMAND control unit |
11E |
| A67b1 |
Hands-free system microphone group |
12C |
| A8/1 |
Transmitter key |
7B |
| CAN B |
Interior CAN |
6D |
| CAN B |
Interior CAN |
14E |
| CAN E |
Chassis CAN |
6H |
| CAN F |
Central CAN |
9F |

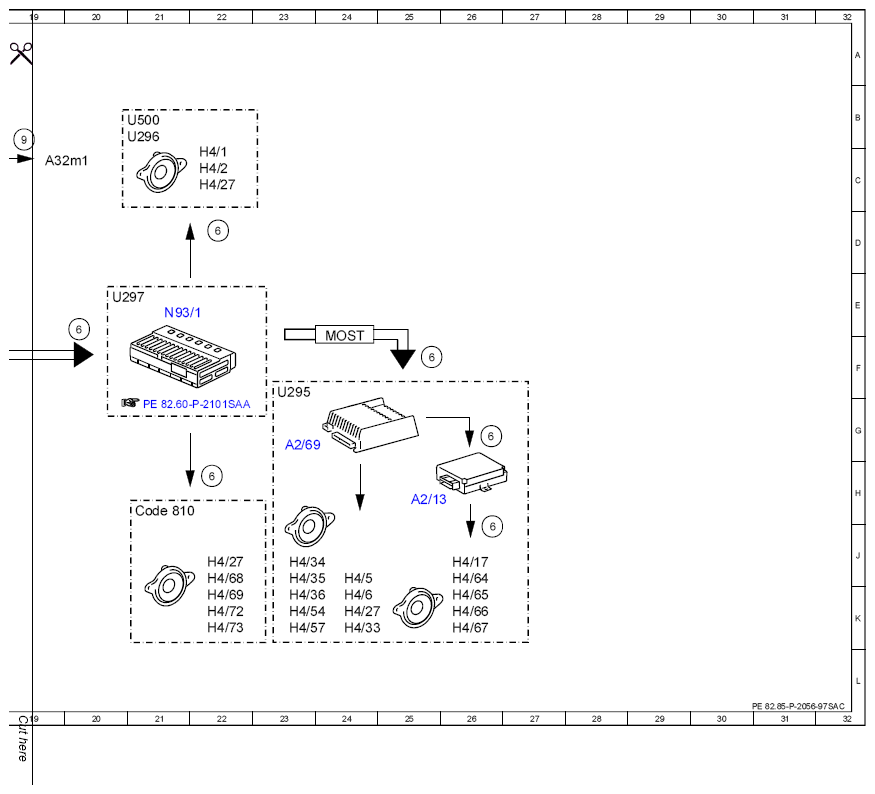

| Code 810 |
Sound system |
21H |
| H4/1 |
Left front door speaker group |
22C |
| H4/17 |
Bass module speaker |
26J |
| H4/2 |
Right front door speaker group |
22C |
| H4/27 |
Center cockpit speaker (centerfill) |
22J |
| H4/27 |
Center cockpit speaker (centerfill) |
22C |
| H4/27 |
Center cockpit speaker (centerfill) |
24K |
| H4/33 |
Left front door tweeter |
24K |
| H4/34 |
Right front door tweeter |
23J |
| H4/35 |
Left rear door tweeter |
23J |
| H4/36 |
Right rear door tweeter |
23K |
| H4/5 |
Left front door speaker |
24J |
| H4/54 |
Left rear surround speaker |
23K |
| H4/57 |
Right rear surround speaker |
23K |
| H4/6 |
Right front door speaker |
24K |
| H4/64 |
Left front door woofer |
26J |
| H4/65 |
Right front door woofer |
26K |
| H4/66 |
Left rear door woofer |
26K |
| H4/67 |
Right rear door woofer |
26K |
| H4/68 |
Left front door Sound tweeter |
22J |
| H4/69 |
Right front door Sound tweeter |
22K |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
22K |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
22K |
| LINB8 |
Climate control LIN |
16C |
| LINE1 |
Steering LIN |
4J |
| MOST |
Media Oriented System Transport |
16F |
| MOST |
Media Oriented System Transport |
24F |
| N22/1 |
AAC [KLA] control unit |
15B |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
6J |
| N93 |
Central gateway control unit |
6E |
| N93/1 |
Audio tuner control unit |
21E |
| S110 |
Left multifunction steering wheel button group |
1H |
| S110s4 |
"Back" and SBS off button |
1J |
| S111 |
Right multifunction steering wheel button group |
3H |
| S111s4 |
VCS [SBS] on button |
3J |
| U295 |
Valid for expanded sound system |
23F |
| U296 |
Not valid for expanded sound system |
20B |
| U297 |
Not valid for USA with expanded sound system |
20E |
| U500 |
Not valid for Sound System |
20B |
