| 1 |
Multifunction steering wheel button group, signal |
7G |
| 1 |
Multifunction steering wheel button group, signal |
5J |
| 1 |
Multifunction steering wheel button group, signal |
10E |
| 2 |
Microphone, signal |
17D |
| 3 |
Speaker, actuation |
16E |
| 3 |
Speaker, actuation |
21H |
| 3 |
Speaker, actuation |
20E |
| 3 |
Speaker, actuation |
21C |
| 4 |
Circuit 15R/circuit 15, status ON |
7D |
| 4 |
Circuit 15R/circuit 15, status ON |
10E |
| A40/3 |
COMAND control unit |
12E |
| A67b1 |
Hands-free system microphone group |
17C |
| A8/1 |
Transmitter key |
8B |
| CAN B |
Interior CAN |
6D |
| CAN E |
Chassis CAN |
6G |
| CAN F |
Central CAN |
8E |
| Code 810 |
Sound system |
20H |
| H4/1 |
Left front door speaker group |
21B |
| H4/2 |
Right front door speaker group |
21C |
| H4/27 |
Center cockpit speaker (centerfill) |
21C |
| H4/27 |
Center cockpit speaker (centerfill) |
21J |
| H4/68 |
Left front door Sound tweeter |
21J |
| H4/69 |
Right front door Sound tweeter |
21J |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
21K |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
21K |
| LIN E1 |
Steering LIN |
4J |
| MOST |
Media Oriented System Transport |
14F |
| MOST |
Media Oriented System Transport |
18E |

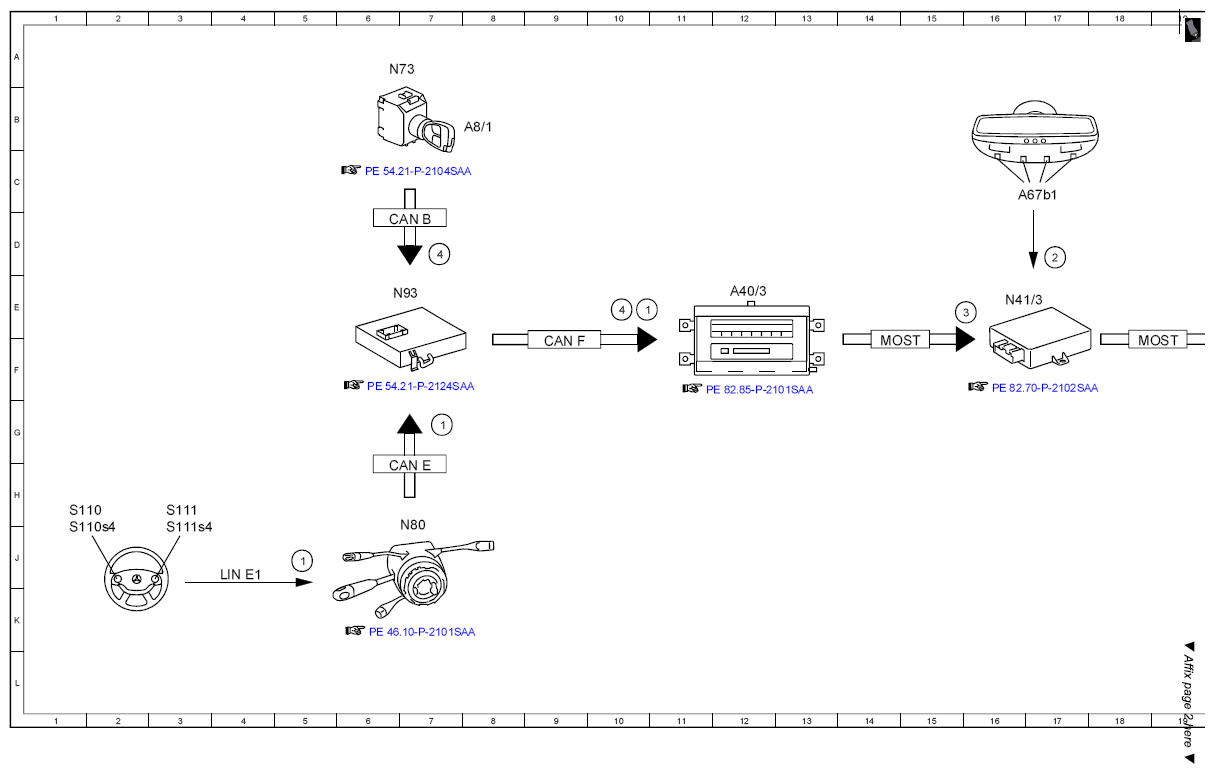

| N41/3 |
Voice control system (VCS [SBS]) control unit |
16E |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
7J |
| N93 |
Central gateway control unit |
7E |

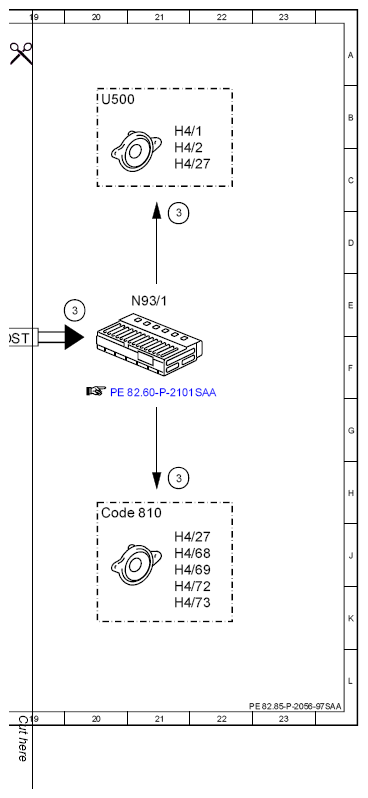

| N93/1 |
Audio tuner control unit |
21E |
| S110 |
Left multifunction steering wheel button group |
1H |
| S110s4 |
"Back" and SBS off button |
1J |
| S111 |
Right multifunction steering wheel button group |
3H |
| S111s4 |
VCS [SBS] on button |
3J |
| U500 |
Not valid for Sound System |
20B |
