Cockpit Management and Data System (COMAND) control unit wiring Schematic - PE82.85-P-2101-99SAG

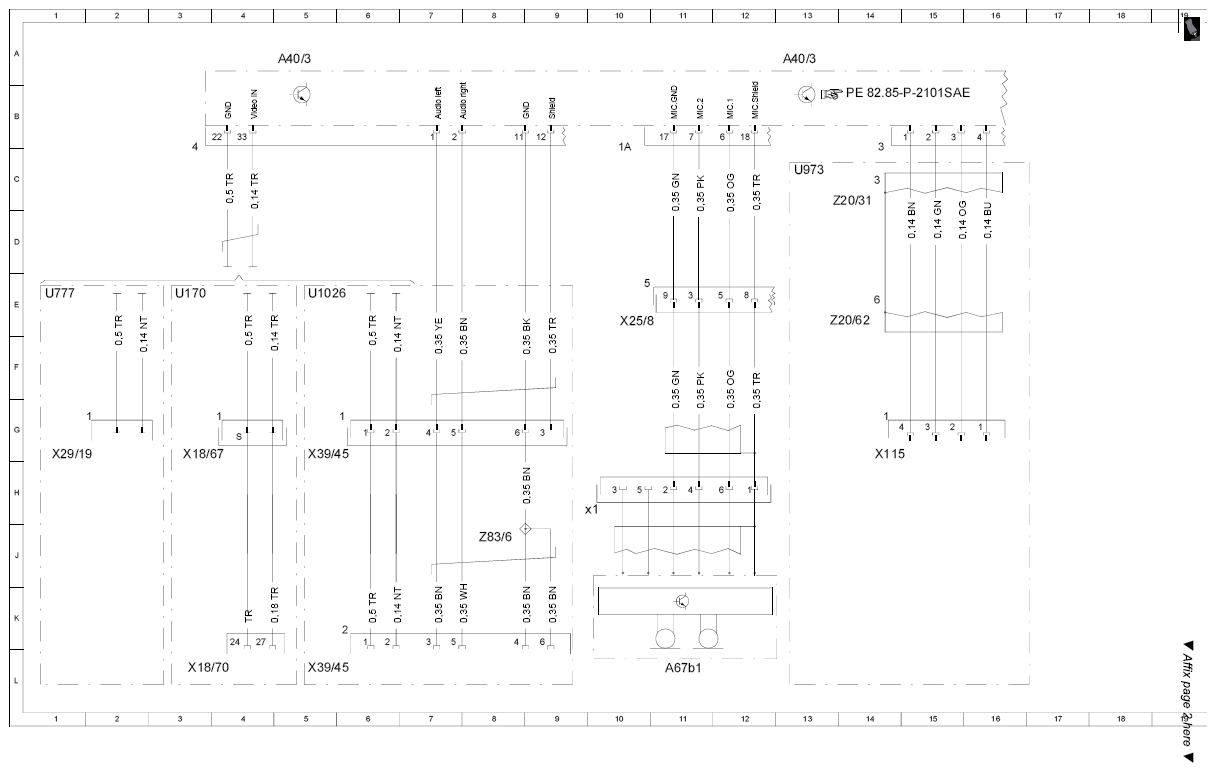

Fig 1: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
