Cockpit Management and Data System (COMAND) control unit wiring Schematic - PE82.85-P-2101-99SAD

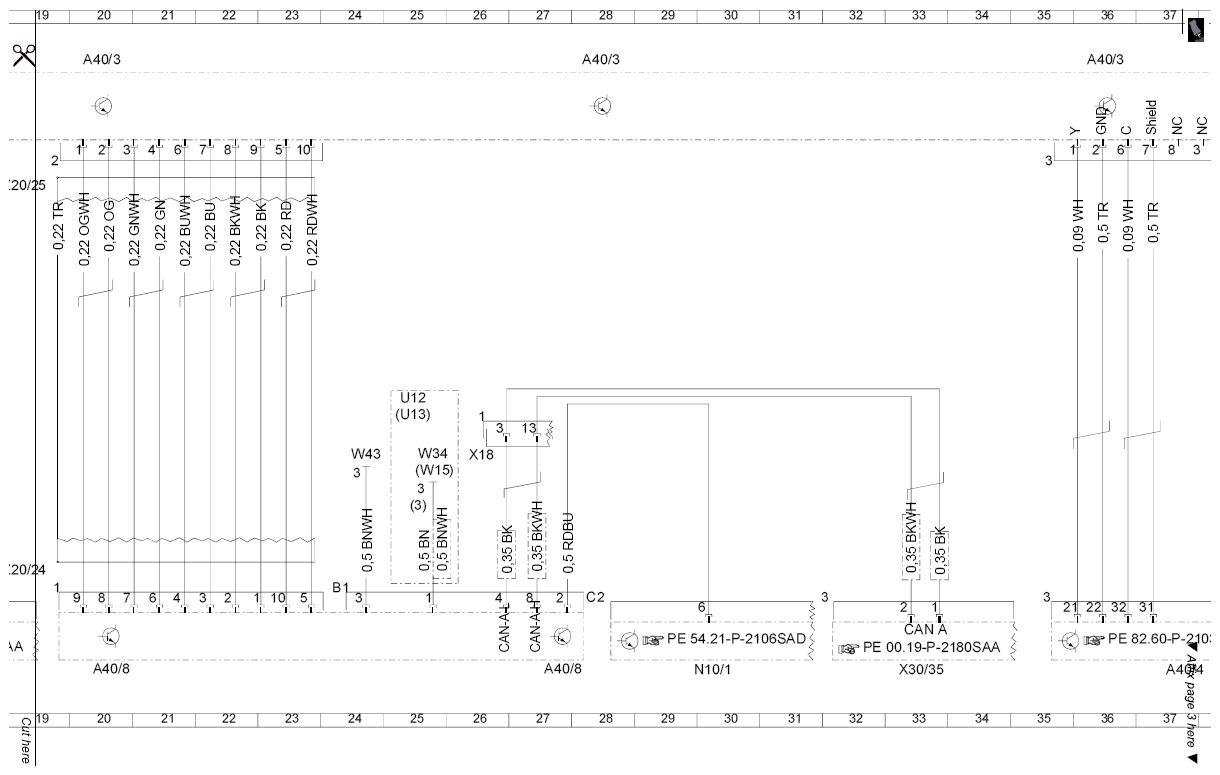

Fig 1: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (1 Of 4)

Courtesy of MERCEDES-BENZ USA

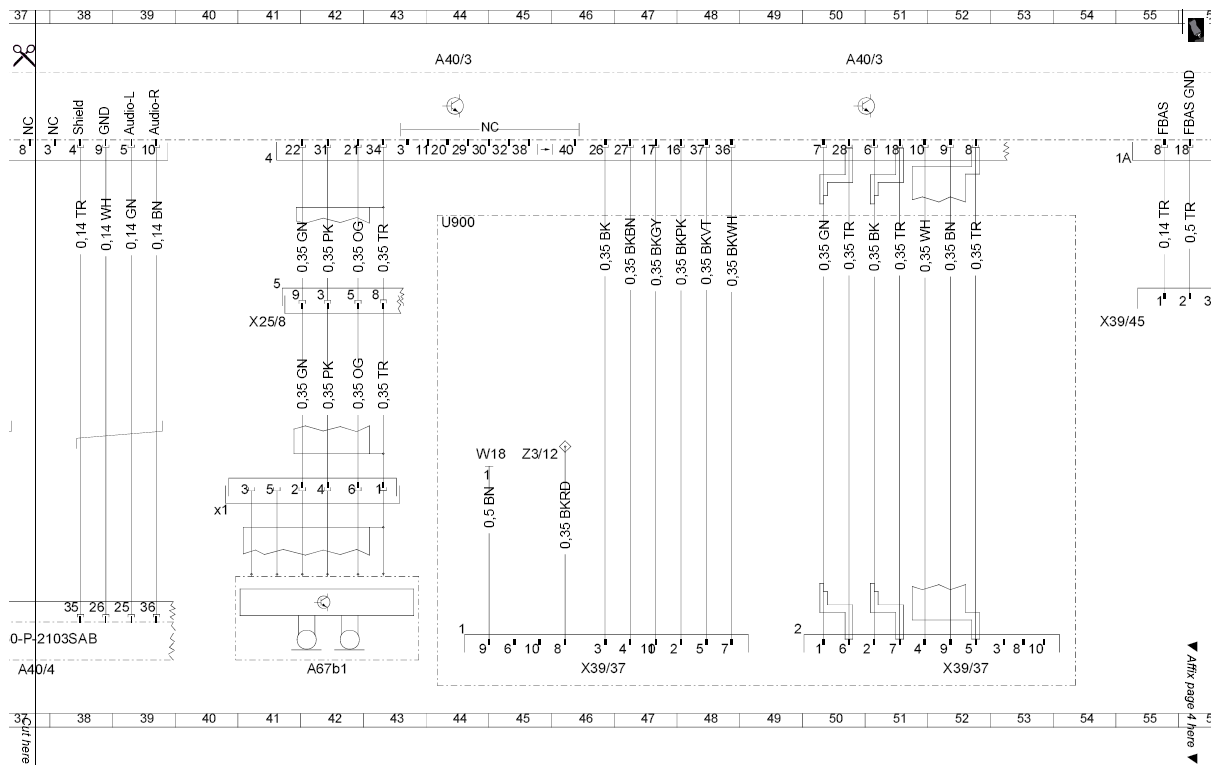

Fig 2: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (2 Of 4)

Courtesy of MERCEDES-BENZ USA

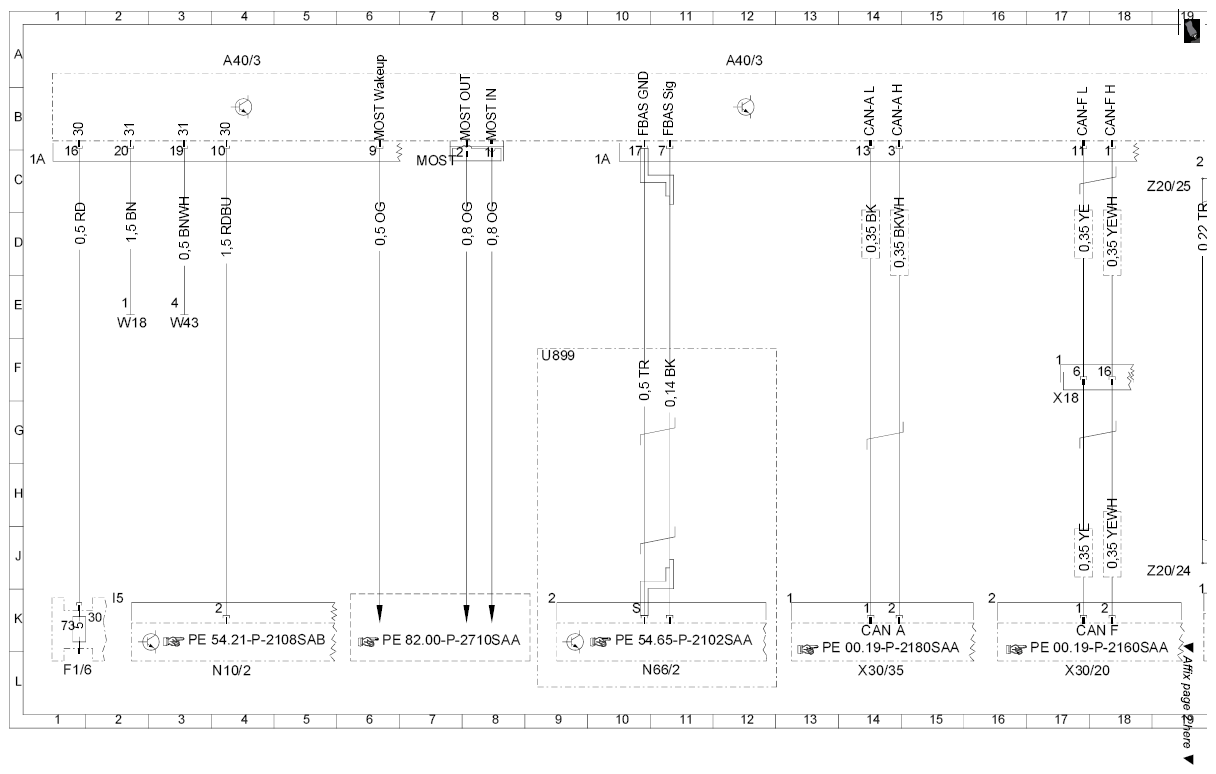

Fig 3: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (3 Of 4)

Courtesy of MERCEDES-BENZ USA

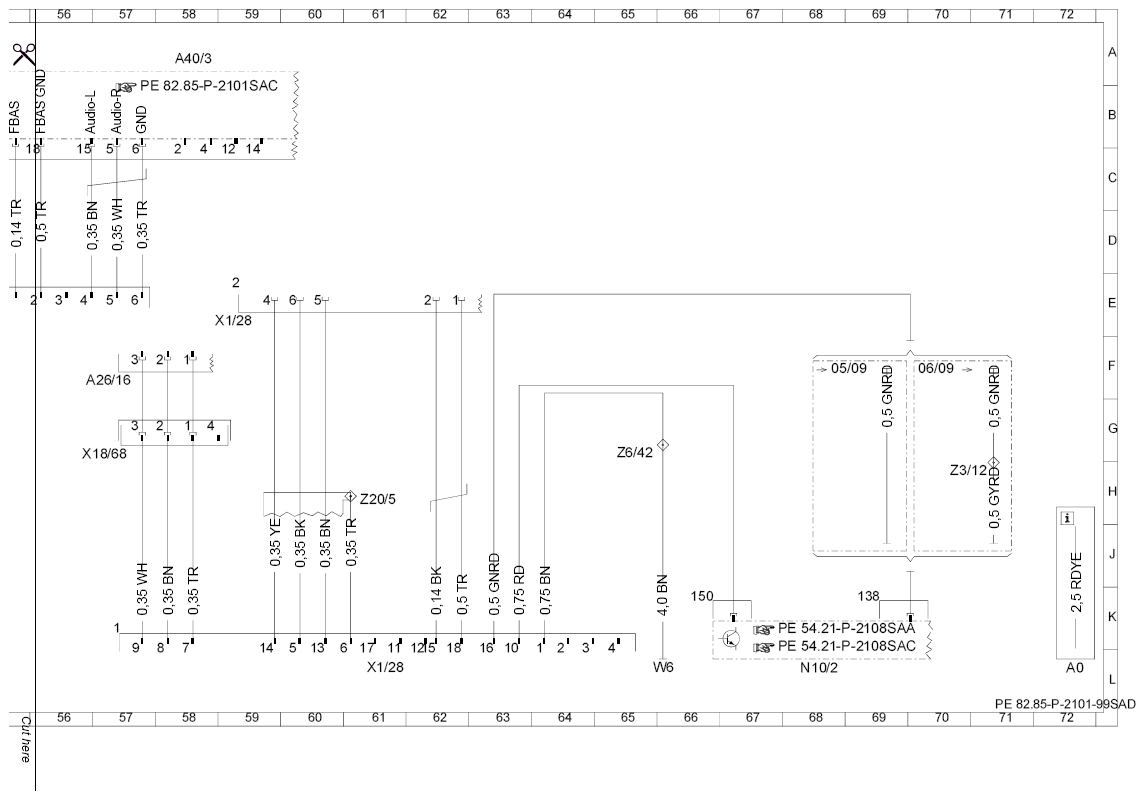

Fig 4: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (4 Of 4)

Courtesy of MERCEDES-BENZ USA
