| A0 |
Explanation of color codes |
64 L |

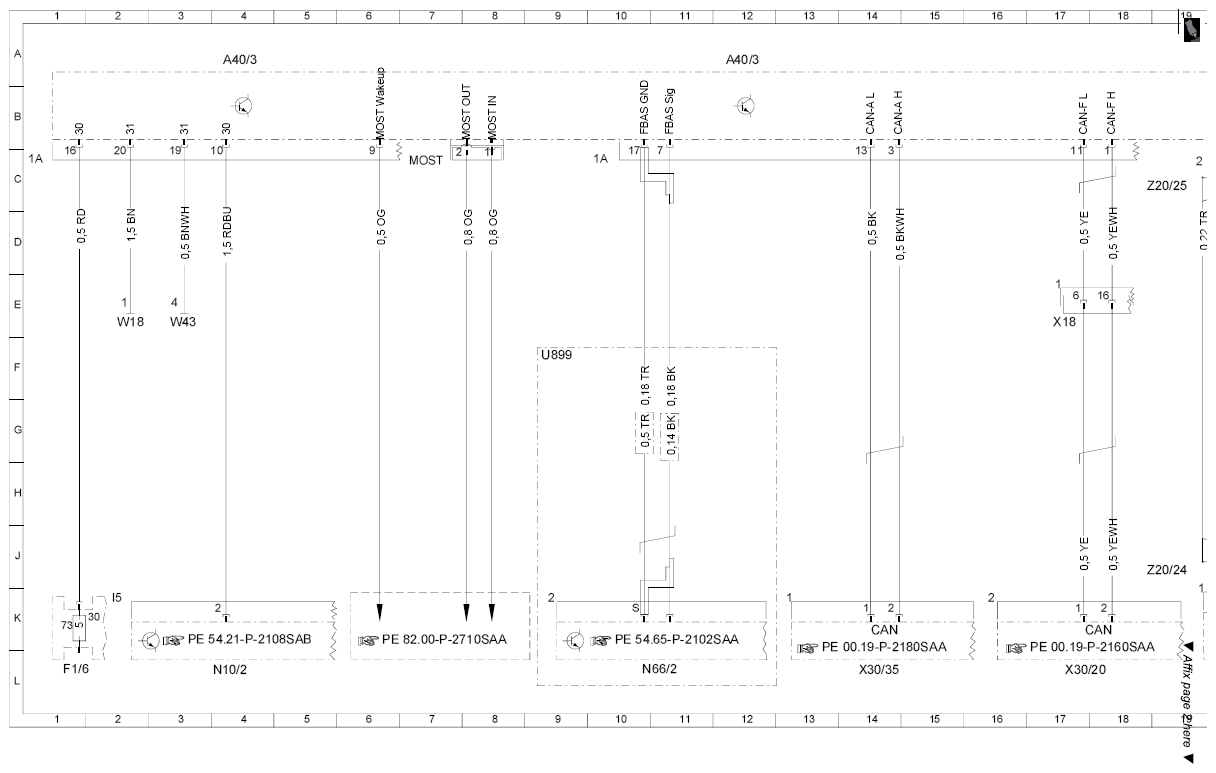

| A40/3 |
COMAND control unit |
4 A |
| A40/3 |
COMAND control unit |
12 A |
| A40/3 |
COMAND control unit |
20 A |
| A40/3 |
COMAND control unit |
28 A |
| A40/3 |
COMAND control unit |
36 A |
| A40/3 |
COMAND control unit |
44 A |
| A40/3 |
COMAND control unit |
52 A |
| A40/4 |
DVD player |
36 L |

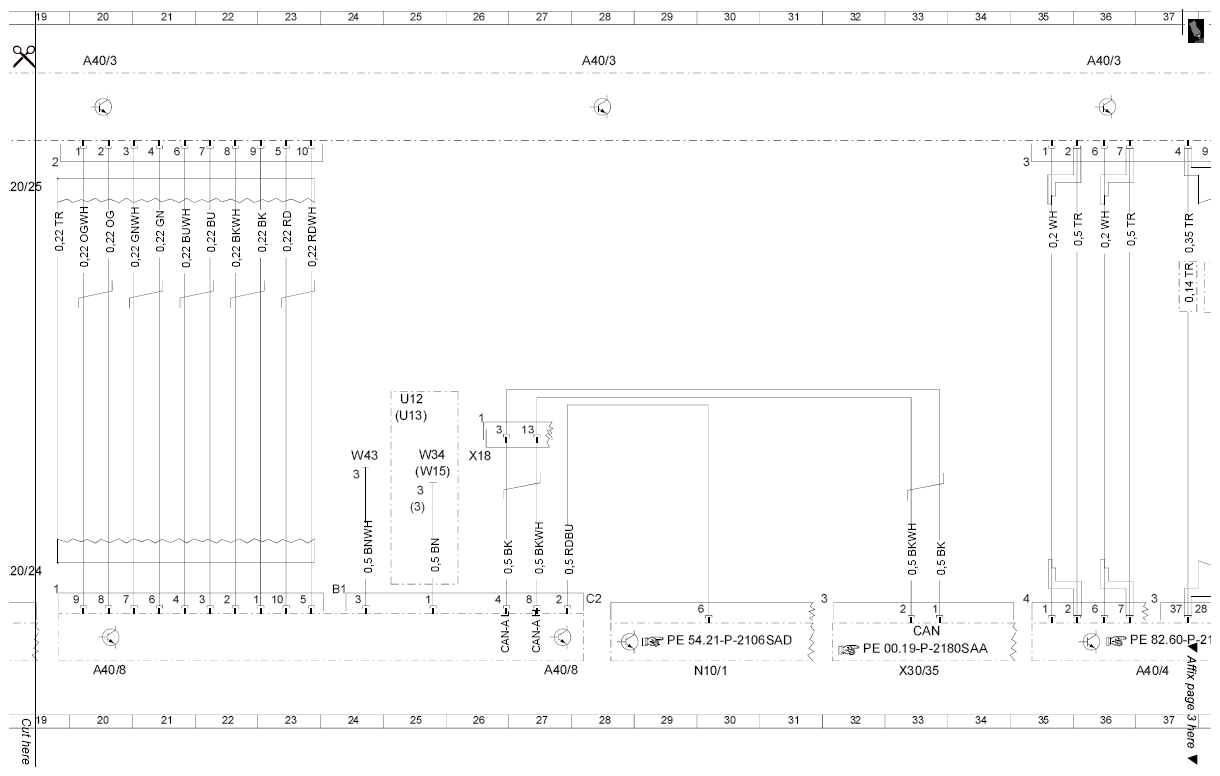

| A40/8 |
COMAND display |
20 L |
| A40/8 |
COMAND display |
27 L |

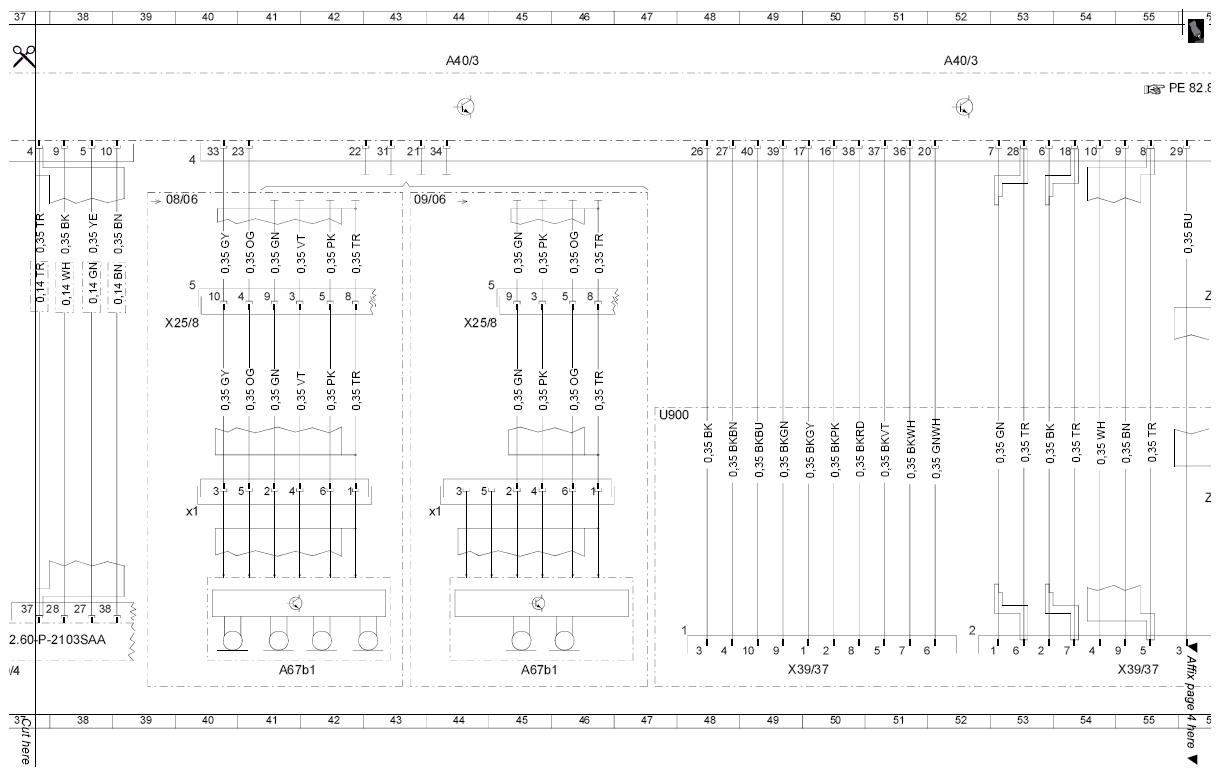

| A67b1 |
Hands-free system microphone group |
41 L |
| A67b1 |
Hands-free system microphone group |
45 L |
| A67b1x1 |
Hands-free system microphone group connector |
39 H |
| A67b1x1 |
Hands-free system microphone group connector |
43 H |
| B1 |
Oil temperature sensor |
24 K |
| F1/6 |
Right instrument panel fuse box |
1 L |
| F1/6f73 |
Fuse 73 |
1 K |
| N10/1 |
Front SAM control module with fuse and relay module |
29 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
3 L |
| N66/2 |
Reverse camera control module |
10 L |
| U12 |
Valid for left-hand steering |
25 G |
| U13 |
Valid for right-hand steering |
25 G |
| U899 |
Valid for backup camera |
9F |
| U900 |
Further line routing not clarified at time of publication |
47 G |
| W15 |
Ground (electronics power ground) |
25 H |
| W18 |
Ground (left front seat crossmember) |
2 E |
| W34 |
Ground (left footwell) |
25 H |
| W43 |
Ground (reference, image transmission systems) |
3 E |
| W43 |
Ground (reference, image transmission systems) |
24 H |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
17 E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
26 H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
39 E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
44 E |
| X30/20 |
Central CAN voltage distributor connector |
17 L |
| X30/35 |
Telematics CAN voltage distributor connector |
14 L |
| X30/35 |
Telematics CAN voltage distributor connector |
33 L |
| X39/37 |
CTEL separation point |
49 L |
| X39/37 |
CTEL separation point |
54 L |
| Z20/24 |
Cable end not insulated, placed inside insulated tubing |
18 J |
| Z20/25 |
Cable end not insulated, placed inside insulated tubing |
18 C |

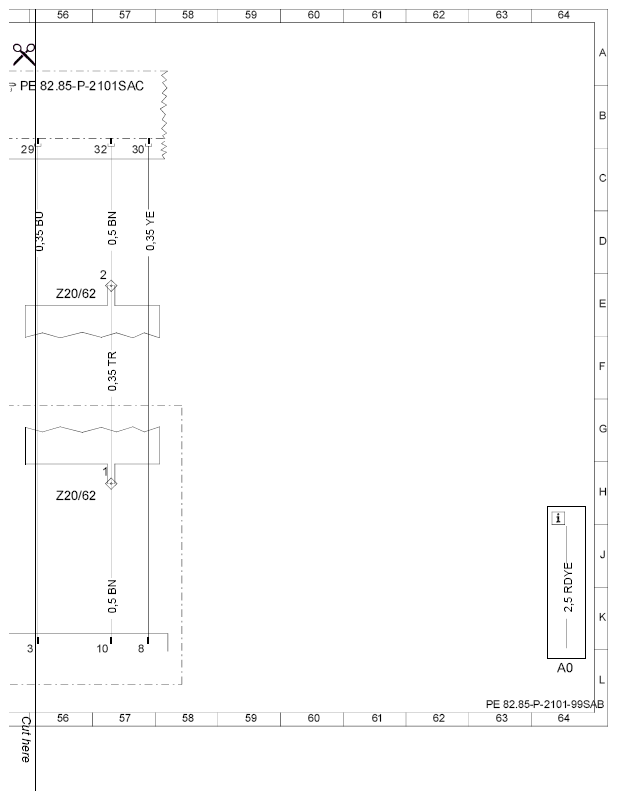

| Z20/62 |
Screening end connector sleeve |
56 H |
| Z20/62 |
Screening end connector sleeve |
56 E |
